XC6223T2619R-G
lmages are for reference only.XC6223T2619R-G
IC REG LIN 2.6V 300MA USPQ-4B03
Datasheet4-XDFN Exposed Pad
96,013 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA USPQ-4B03
XC6223T2619R-G
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Torex Semiconductor Ltd |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.6V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.35V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 220 µA |
| PSRR | 80dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-XDFN Exposed Pad |
| Supplier Device Package | USPQ-4B03 |
| Base Product Number | XC6223 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |

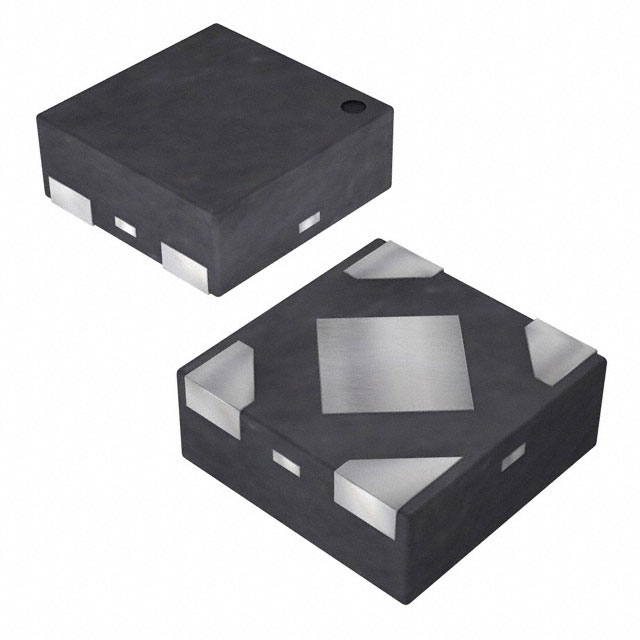

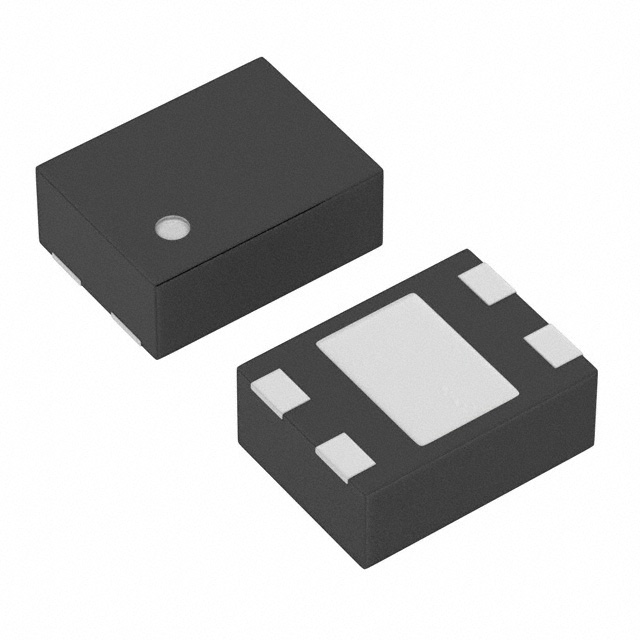

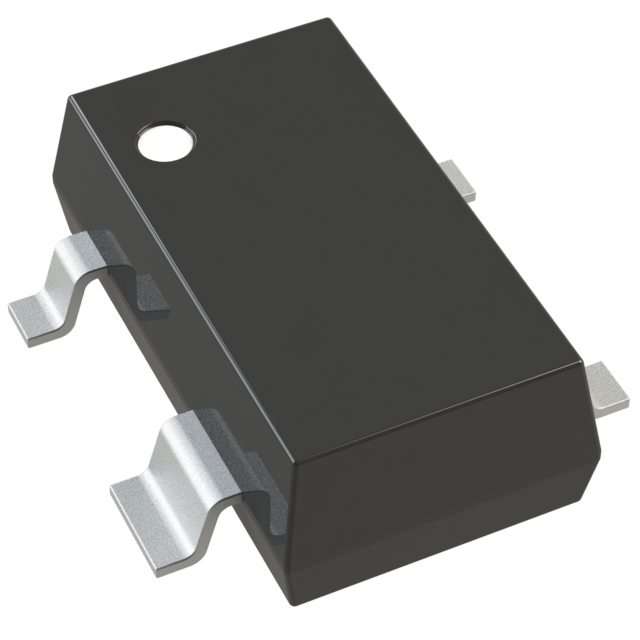

| Part Number | XC6223T2019R-G | XC6223T201GR-G | XC6223T201MR-G | XC6223T201NR-G |
| Manufacturer | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 2V 300MA USPQ-4B03 | IC REG LINEAR 2V 300MA 4USP | IC REG LINEAR 2V 300MA SOT25 | IC REG LINEAR 2V 300MA SSOT24 |
| Series | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
