XC6229D30B1R-G

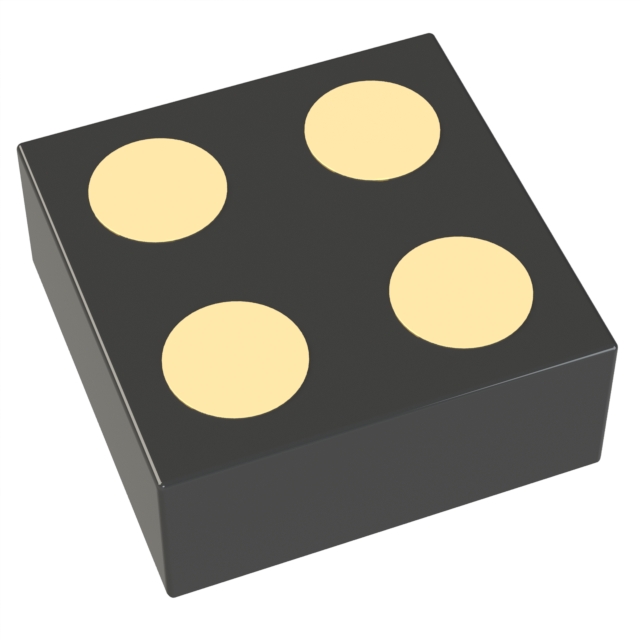

lmages are for reference only.XC6229D30B1R-G
IC REG LIN 3.05V 300MA LGA-4B01
Datasheet4-XFLGA
52,132 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA LGA-4B01
XC6229D30B1R-G
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Torex Semiconductor Ltd |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3.05V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.26V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 220 µA |
| PSRR | 80dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-XFLGA |
| Supplier Device Package | LGA-4B01 |
| Base Product Number | XC6229 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | XC6229D3011R-G | XC6229D3111R-G | XC6229D31B1R-G | XC6229D3211R-G |
| Manufacturer | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 3V 300MA LGA-4B01 | IC REG LIN 3.1V 300MA LGA-4B01 | IC REG LIN 3.15V 300MA LGA-4B01 | IC REG LIN 3.2V 300MA LGA-4B01 |
| Series | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
