XC6501A25B0R-G
lmages are for reference only.XC6501A25B0R-G
IC REG LIN 2.55V 200MA WLP-4-01
Datasheet4-XFBGA, WLBGA
31,283 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA WLP-4-01
XC6501A25B0R-G
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Torex Semiconductor Ltd |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.55V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.38V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 19 µA |
| PSRR | 50dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-XFBGA, WLBGA |
| Supplier Device Package | WLP-4-01 |
| Base Product Number | XC6501 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |

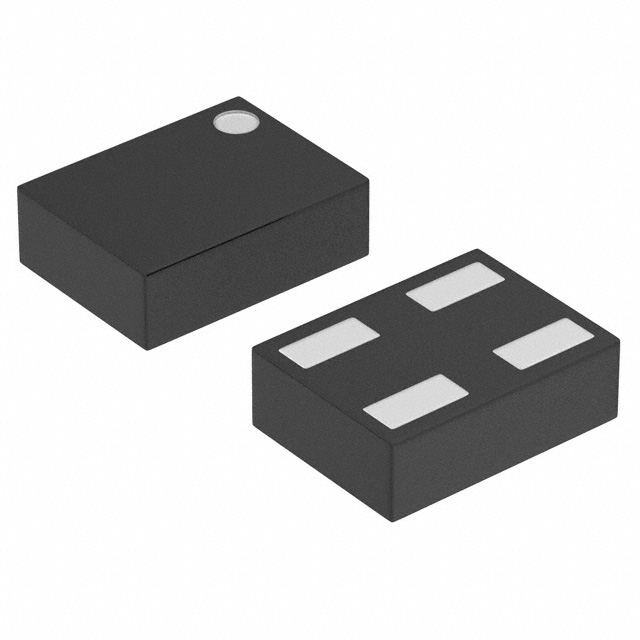

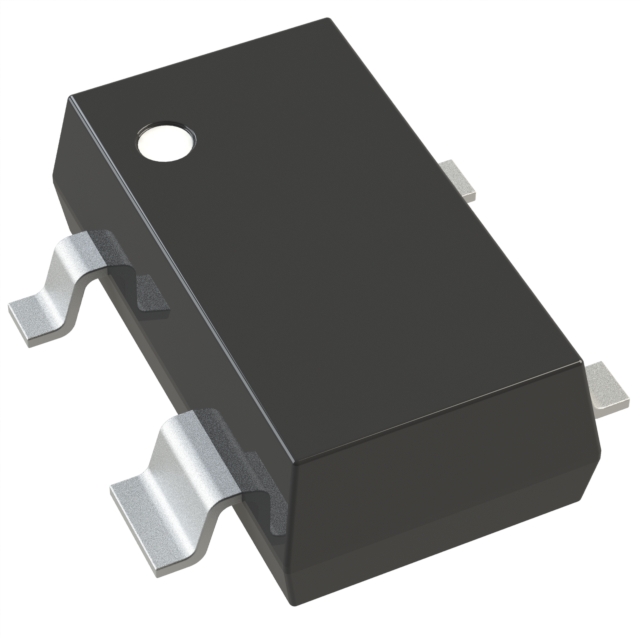

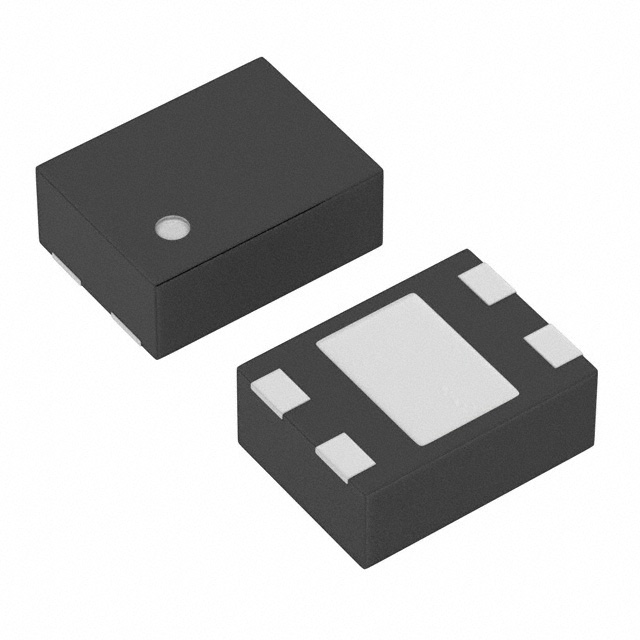

| Part Number | XC6501A2017R-G | XC6501A201GR-G | XC6501A201MR-G | XC6501A201NR-G |
| Manufacturer | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 2V 200MA 4USPN | IC REG LINEAR 2V 200MA 4USP | IC REG LINEAR 2V 200MA SOT25 | IC REG LINEAR 2V 200MA SSOT24 |
| Series | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
