XC6701DC42PR-G
lmages are for reference only.XC6701DC42PR-G
IC REG LINEAR 12.4V 150MA SOT89
DatasheetTO-243AA
45,437 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-89
XC6701DC42PR-G
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Torex Semiconductor Ltd |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 28V |
| Voltage - Output (Min/Fixed) | 12.4V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.85V @ 100mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 125 µA |
| PSRR | 50dB (1kHz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-243AA |
| Supplier Device Package | SOT-89 |
| Base Product Number | XC6701 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | XC6701DC02FR-G | XC6701DC02JR-G | XC6701DC02PR-G | XC6701DC12FR-G |
| Manufacturer | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

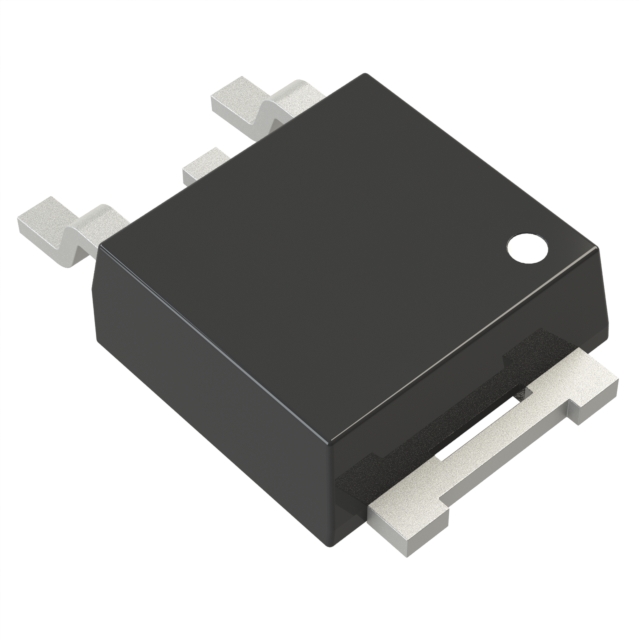

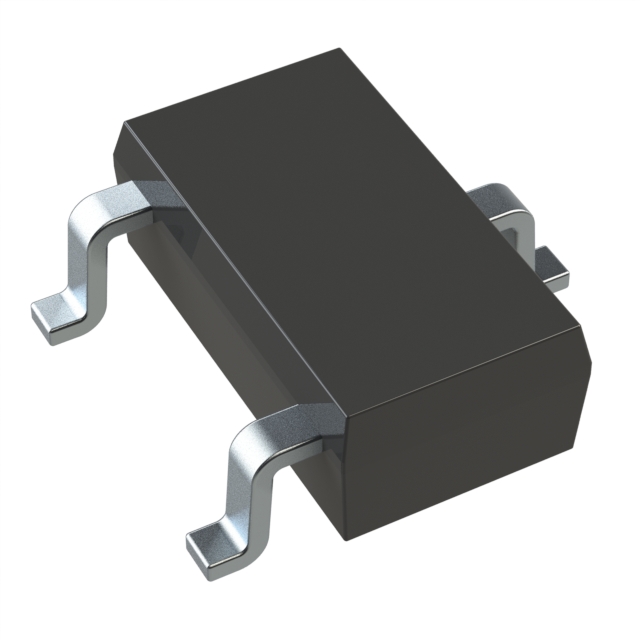

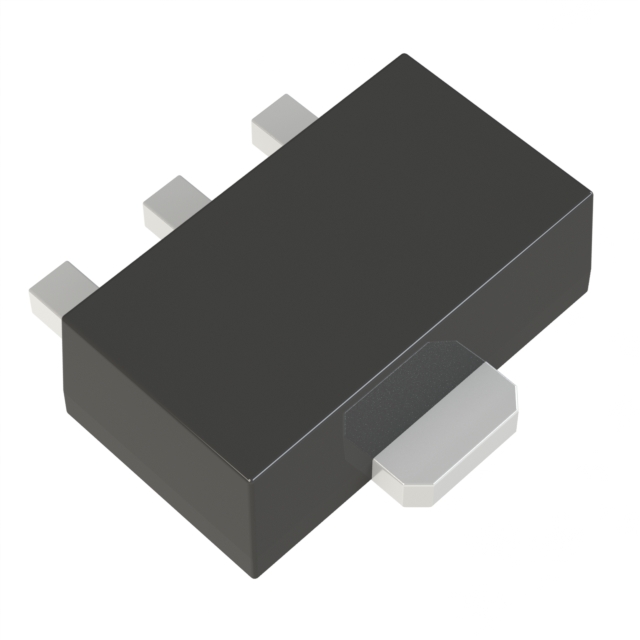

| Description | IC REG LINEAR 12V 150MA SOT223 | IC REG LINEAR 12V 150MA TO252 | IC REG LINEAR 12V 150MA SOT89 | IC REG LINEAR 12.1V 150MA SOT223 |
| Series | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
