XC9120B091ER-G

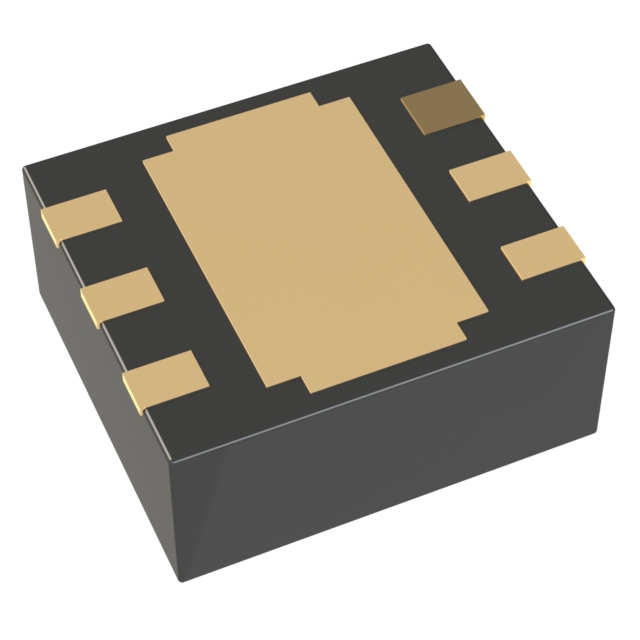

lmages are for reference only.XC9120B091ER-G
STEP-UP DCDC CONTROLLER MAX.DUTY
Datasheet6-UFDFN Exposed Pad
13,125 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Boost Regulator Positive Output Step-Up DC-DC Controller IC 6-USPC (1.8x2)
XC9120B091ER-G
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Torex Semiconductor Ltd |
| Series | XC9120 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Type | Transistor Driver |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 6V |
| Frequency - Switching | 100kHz |
| Duty Cycle (Max) | 93% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN Exposed Pad |
| Supplier Device Package | 6-USPC (1.8x2) |
| Base Product Number | XC9120 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

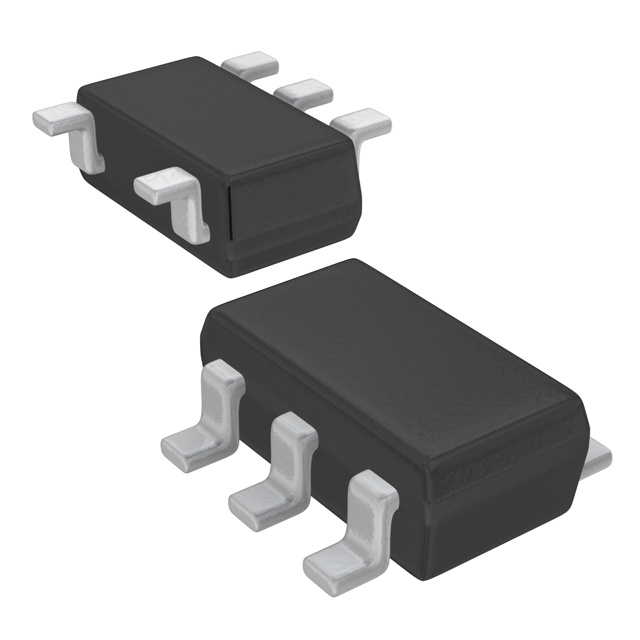

| Part Number | XC9120B091MR-G | XC9120D091ER-G | XC9120D091MR-G | XC9121B091ER-G |
| Manufacturer | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | STEP-UP DCDC CONTROLLER MAX.DUTY | STEP-UP DCDC CONTROLLER MAX.DUTY | STEP-UP DCDC CONTROLLER MAX.DUTY | STEP-UP DCDC CONTROLLER MAX.DUTY |
| Series | XC9120 | XC9120 | XC9120 | XC9121 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
