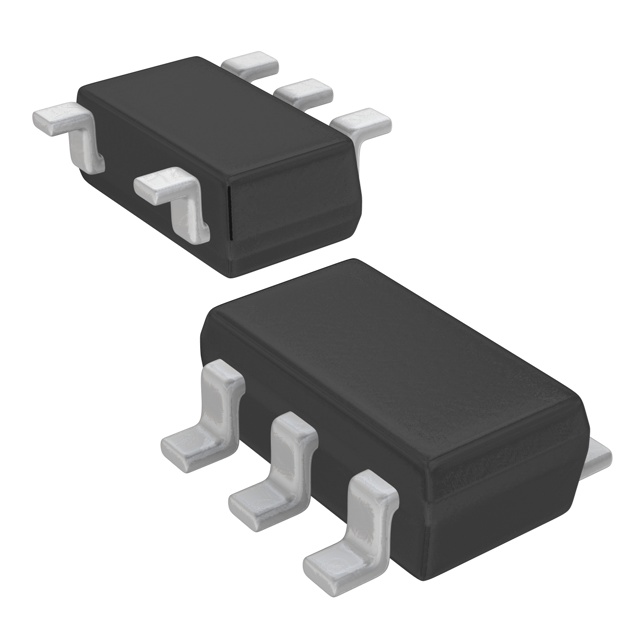

lmages are for reference only.XC9302A403MR-G
STEP-UP & STEP-DOWN 300KHZ DCDC
DatasheetSC-74A, SOT-753
21,668 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck-Boost Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC SOT-25-5
XC9302A403MR-G
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Torex Semiconductor Ltd |
| Series | XC9302 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Type | PWM |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck-Boost |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 10V |
| Frequency - Switching | 300kHz |
| Duty Cycle (Max) | 92% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-25-5 |
| Base Product Number | XC9302 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | XC9302A402MR-G | XC9302A412MR-G | XC9302A413MR-G | XC9302A422MR-G |
| Manufacturer | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | STEP-UP & STEP-DOWN 180KHZ DCDC | STEP-UP & STEP-DOWN 180KHZ DCDC | STEP-UP & STEP-DOWN 300KHZ DCDC | STEP-UP & STEP-DOWN 180KHZ DCDC |
| Series | XC9302 | XC9302 | XC9302 | XC9302 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
