XCL105C221H2-G

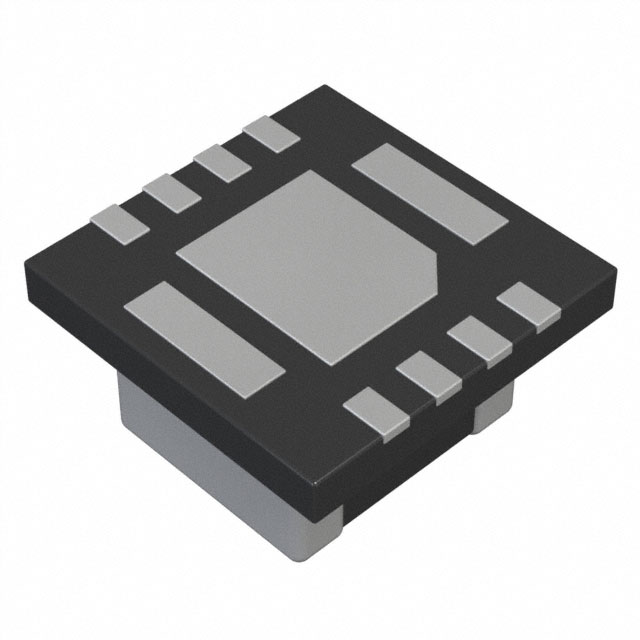

lmages are for reference only.XCL105C221H2-G
1.4A, INDUCTOR BUILT-IN STEP-UP
Datasheet10-PowerLFDFN Module
16,292 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 2.2V 0.65V - 6V Input
XCL105C221H2-G
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Torex Semiconductor Ltd |
| Series | XCL105 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 0.65V |
| Voltage - Input (Max) | 6V |
| Voltage - Output 1 | 2.2V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | - |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off |
| Operating Temperature | -40°C ~ 105°C |
| Efficiency | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-PowerLFDFN Module |
| Size / Dimension | 0.12" L x 0.12" W x 0.07" H (3.0mm x 3.0mm x 1.7mm) |
| Supplier Device Package | DFN3030-10B |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | XCL105C201H2-G | XCL105C211H2-G | XCL105C231H2-G | XCL105C241H2-G |
| Manufacturer | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 1.4A, INDUCTOR BUILT-IN STEP-UP | 1.4A, INDUCTOR BUILT-IN STEP-UP | 1.4A, INDUCTOR BUILT-IN STEP-UP | 1.4A, INDUCTOR BUILT-IN STEP-UP |
| Series | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
