XCL243B1E3D2-G

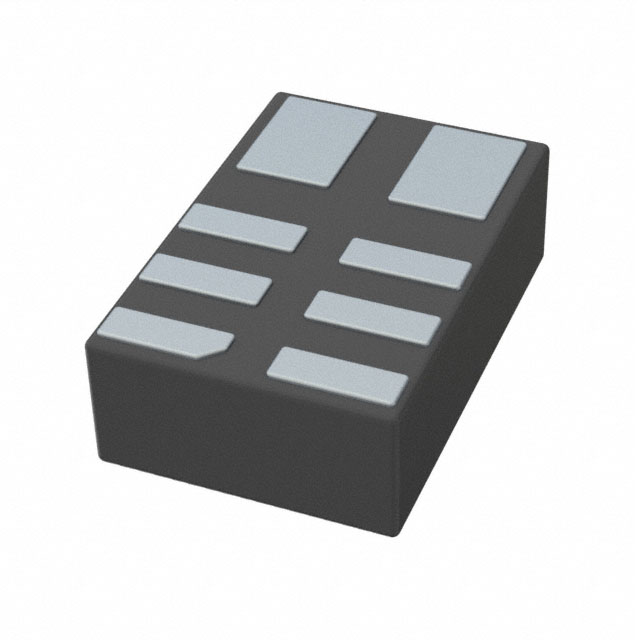

lmages are for reference only.XCL243B1E3D2-G
HISAT-COT 0.7A INDUCTOR BUILT-IN
Datasheet8-PowerWFDFN Module
92,900 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 1.45V 700mA 2.5V - 5.5V Input
XCL243B1E3D2-G
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Torex Semiconductor Ltd |
| Series | XCL243 |
| Packaging | Case |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 1.45V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 700mA |
| Power (Watts) | 1.015 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output |
| Operating Temperature | -40°C ~ 105°C |
| Efficiency | 83% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWFDFN Module |
| Size / Dimension | 0.09" L x 0.06" W x 0.03" H (2.3mm x 1.5mm x 0.8mm) |
| Supplier Device Package | USP-8B04 |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
|
 |
| Part Number | XCL243B103D2-G | XCL243B113D2-G | XCL243B113D2-G | XCL243B123D2-G |
| Manufacturer | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | HISAT-COT 0.7A INDUCTOR BUILT-IN | HISAT-COT 0.7A INDUCTOR BUILT-IN | HISAT-COT 0.7A INDUCTOR BUILT-IN | HISAT-COT 0.7A INDUCTOR BUILT-IN |
| Series | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| Packaging | Case | Case | Case | Case |
