Product CatalogPart Number
XF8M000000S412
Manufacturer
TGSDescription
CRYSTAL 8MHZ 10ppm, 12pF 4 Pads
Datasheet
DatasheetPackage
4-SMD, No Lead
In Stock
24,526 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
XF8M000000S412
XF8M000000S412
lmages are for reference only.Payment Methods
Delivery Services
8 MHz ±10ppm Crystal 12pF 350 Ohms 4-SMD, No Lead
Quick Inquiry
XF8M000000S412
Specifications
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | TGS |
| Series | CM32 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | MHz Crystal |
| Frequency | 8 MHz |
| Frequency Stability | ±30ppm |
| Frequency Tolerance | ±10ppm |
| Load Capacitance | 12pF |
| ESR (Equivalent Series Resistance) | 350 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
|
 |

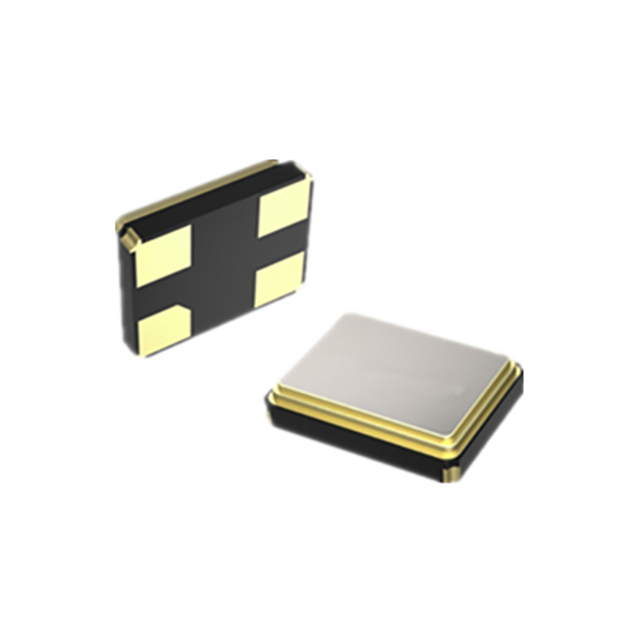

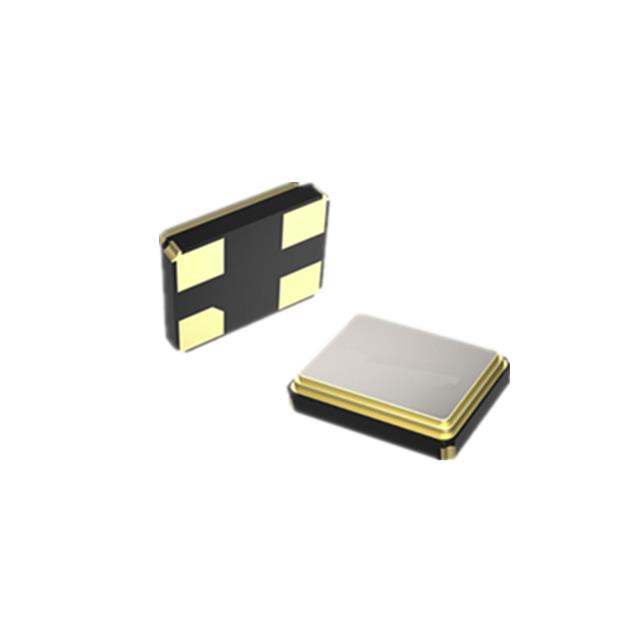

| Part Number | XF8M000000S410 | XF8M000000S410 | XF8M000000S412 | XF8M00000S4118 |
| Manufacturer | TGS | TGS | TGS | TGS |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | CRYSTAL 8M 10PPM, 10PF 4 Pads, S | CRYSTAL 8M 10PPM, 10PF 4 Pads, S | CRYSTAL 8MHZ 10ppm, 12pF 4 Pads | CRYSTAL 8M 10PPM, 18PF -40 +125 |
| Series | TGS | TGS | TGS | TGS |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
