Product CatalogPart Number
XSMDK18D
Manufacturer
SunLEDDescription
LED RED DIFFUSED RECT 2.5X5MM TH
Datasheet
DatasheetPackage
Radial
In Stock
20,366 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
XSMDK18D
XSMDK18D
lmages are for reference only.Payment Methods
Delivery Services
Red 630nm LED Indication - Discrete 1.95V Radial
Quick Inquiry
XSMDK18D
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | SunLED |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Color | Red |
| Configuration | - |
| Lens Color | Red |
| Lens Transparency | Diffused |
| Millicandela Rating | 148mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.00mm x 2.00mm |
| Voltage - Forward (Vf) (Typ) | 1.95V |
| Current - Test | 20mA |
| Viewing Angle | 140° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 630nm |
| Wavelength - Peak | 645nm |
| Features | - |
| Package / Case | Radial |
| Supplier Device Package | Rectangular 2mmx5mm |
| Size / Dimension | 5.00mm L x 2.00mm W |
| Height (Max) | 8.25mm |
| Base Product Number | XSMDK18 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

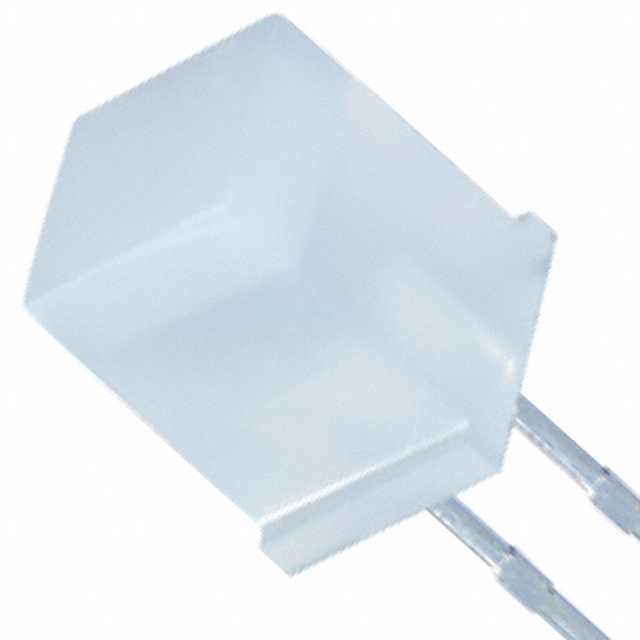

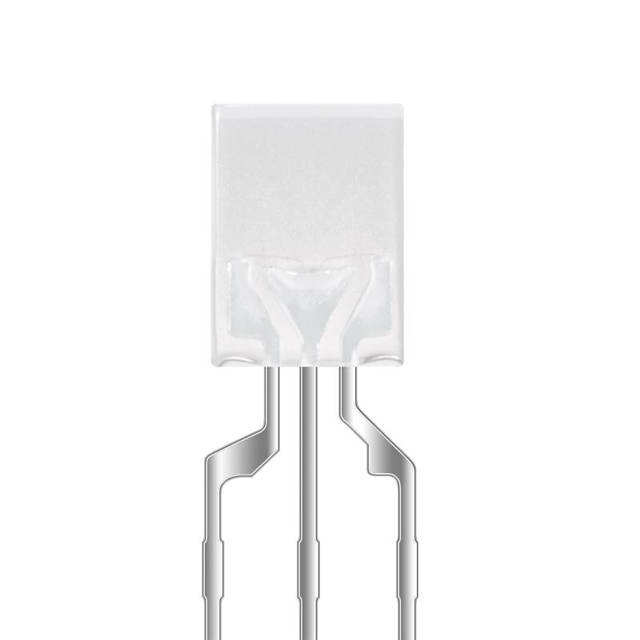

| Part Number | XSMDK23MB | XSMDK43MB | XSMDKVG47M | XSCBD23MB |
| Manufacturer | SunLED | SunLED | SunLED | SunLED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RED DIFFUSED ICE CUBE T/H | LED RED DIFFUSED ICE CUBE T/H | LED GREEN/RED DIFFUSED RECT T/H | LED BLUE DIFF ICE CUBE LED T/H |
| Series | SunLED | SunLED | SunLED | SunLED |
| Packaging | Bulk | Bulk | Bulk | Bulk |
