XW4M-17D1-H1DS
lmages are for reference only.XW4M-17D1-H1DS
PLUG,SINGLE-ROW,RIGHT-ANGLE,TIN
Datasheet-
81,431 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
17 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
XW4M-17D1-H1DS
| Category | Connectors, Interconnects - Terminal Blocks - Headers-Plugs and Sockets |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | XW4M |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Base Product Number | - |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 17 |
| Positions Per Level | 17 |
| Number of Levels | 1 |
| Pitch | 0.138" (3.50mm) |
| Header Orientation | 90°, Right Angle |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current - IEC | 8A |
| Voltage - IEC | 160 V |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Color | Black |
| Operating Temperature | -40°C ~ 100°C |
| Contact Mating Finish | Tin |
| Features | Latches |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | - |
| Screw Size | - |
| Torque - Screw | - |
| Wire Strip Length | - |
| Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Contact Tail Length | - |
| Insulation Height | 0.250" (6.35mm) |
| Current - UL | 8 A |
| Voltage - UL | 300 V |
| Product Attribute |  |
 |
 |
 |

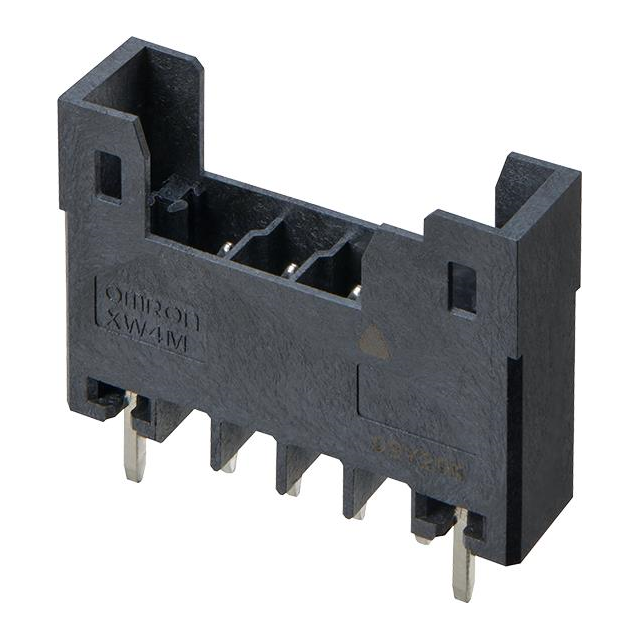

| Part Number | XW4M-17D1-V1DS | XW4M-02D1-H1DA | XW4M-02D1-H1DS | XW4M-02D1-V1DA |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | PLUG,SINGLE-ROW,STRAIGHT,TIN REF | PLUG,SINGLE-ROW,RIGHT-ANGLE,GOLD | PLUG,SINGLE-ROW,RIGHT-ANGLE,TIN | PLUG,SINGLE-ROW,STRAIGHT,GOLD,TH |
| Series | XW4M | XW4M | XW4M | XW4M |
| Packaging | Tray | Tray | Tray | Tray |
