Product CatalogPart Number
XZFBBM2ACRDG92W-3
Manufacturer
SunLEDDescription
LED RGB CLEAR 6SMD
Datasheet
DatasheetPackage
6-SMD, No Lead
In Stock
12,704 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
XZFBBM2ACRDG92W-3
XZFBBM2ACRDG92W-3
lmages are for reference only.Payment Methods
Delivery Services
Red, Green, Blue (RGB) 625nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2.2V Red, 3.2V Green, 3.3V Blue 6-SMD, No Lead
Quick Inquiry
XZFBBM2ACRDG92W-3
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | SunLED |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 1590mcd Red, 1890mcd Green, 497mcd Blue |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 1.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.2V Red, 3.2V Green, 3.3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 50° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 625nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | 640nm Red, 520nm Green, 465nm Blue |
| Features | - |
| Package / Case | 6-SMD, No Lead |
| Supplier Device Package | 6-SMD |
| Size / Dimension | 3.50mm L x 3.50mm W |
| Height (Max) | 1.25mm |
| Base Product Number | XZFBBM2 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

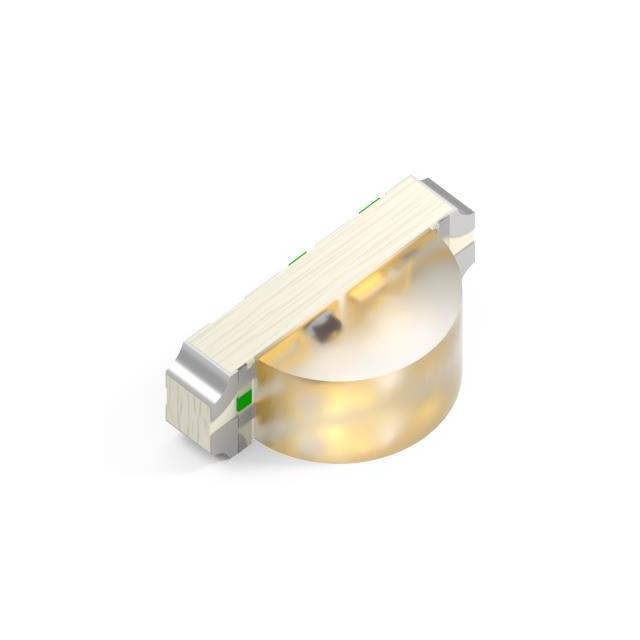

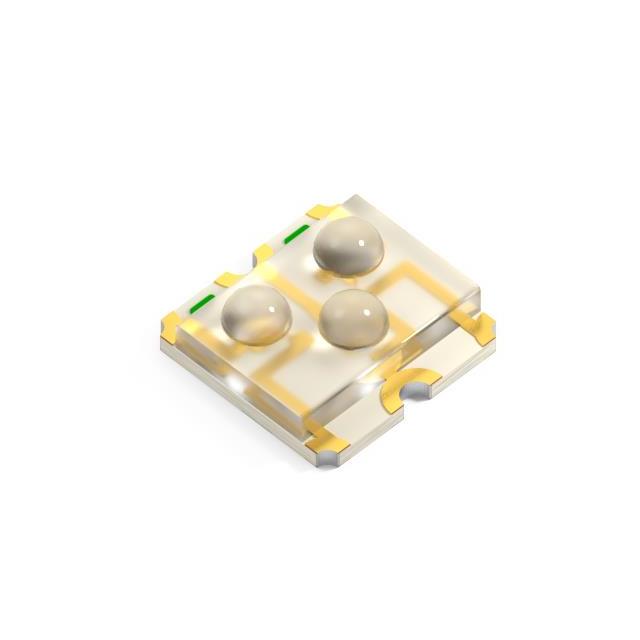

| Part Number | XZFBBM2ACRDG45SC8-A | XZFBBM2ACRTHI92W-3 | XZFBBM2CRKM2DGZ157W | XZ53W-1TRK22 |
| Manufacturer | SunLED | SunLED | SunLED | SunLED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RGB WATER CLEAR SMD | LED BLUE/IR/RED CLR 1414 SMD | LED RGB CLEAR CHIP SMD | 1.6X0.8MM ULTRA YELLOW SMD 0603 |
| Series | SunLED | SunLED | SunLED | SunLED |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
