Product CatalogPart Number
XZMYKVG55W-4
Manufacturer
SunLEDDescription
LED GRN/YLW CLEAR 2SMD
Datasheet
DatasheetPackage
1206 (3216 Metric)
In Stock
56,347 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
XZMYKVG55W-4
XZMYKVG55W-4
lmages are for reference only.Payment Methods
Delivery Services
Green, Yellow 570nm Green, 590nm Yellow LED Indication - Discrete 2.1V Green, 2V Yellow 1206 (3216 Metric)
Quick Inquiry
XZMYKVG55W-4
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | SunLED |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Green, Yellow |
| Configuration | Bidirectional |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 79mcd Green, 148mcd Yellow |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 1.60mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2V Yellow |
| Current - Test | 20mA Green, 20mA Yellow |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 570nm Green, 590nm Yellow |
| Wavelength - Peak | 574nm Green, 590nm Yellow |
| Features | - |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 2-SMD |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Height (Max) | 1.30mm |
| Base Product Number | XZMYKVG55 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

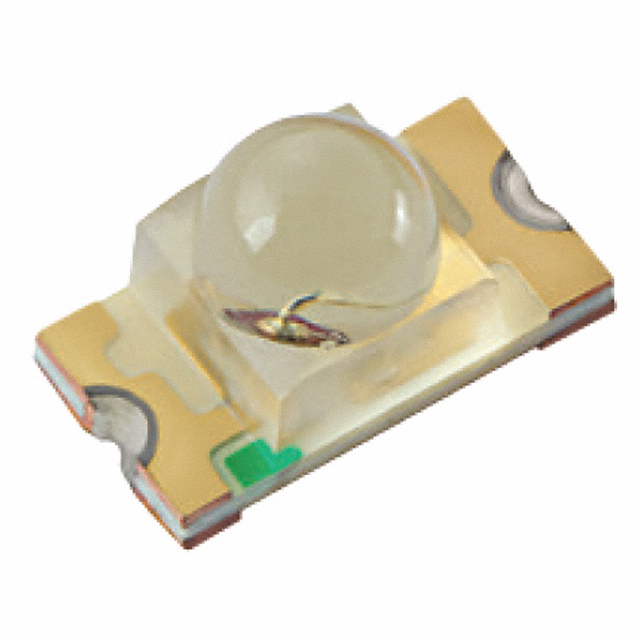

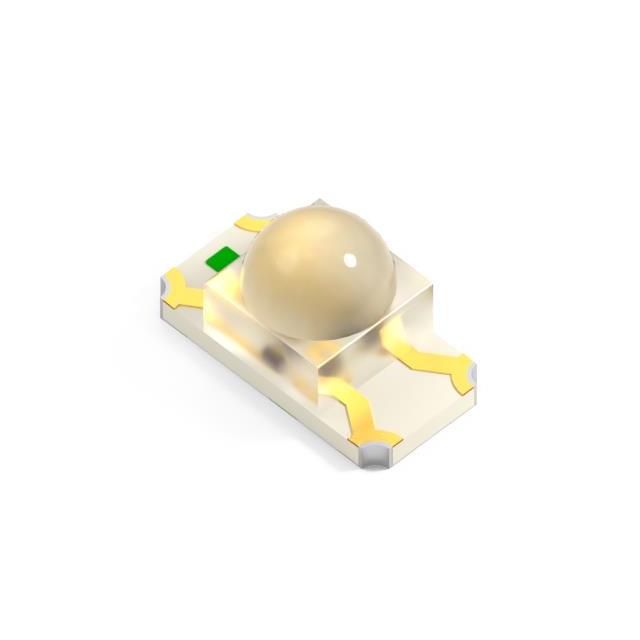

| Part Number | XZMYKVG55W-7 | XZMYKVG55W-8 | XZMYKVG170W | XZMYKVG45S |
| Manufacturer | SunLED | SunLED | SunLED | SunLED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GRN/YLW CLEAR 2SMD | LED GRN/YLW CLEAR 4SMD | 2.0X0.6MM BI-COLOR YEL/GRN RA SM | LED GRN/YLW CLEAR 4PLCC SMD |
| Series | SunLED | SunLED | SunLED | SunLED |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
