Product CatalogPart Number
Y118920K0000DR0L
Manufacturer
VPG Foil ResistorsDescription
RNC90Z20K000DR 131448
Datasheet
DatasheetPackage
Radial
In Stock
69,469 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
Y118920K0000DR0L
Y118920K0000DR0L

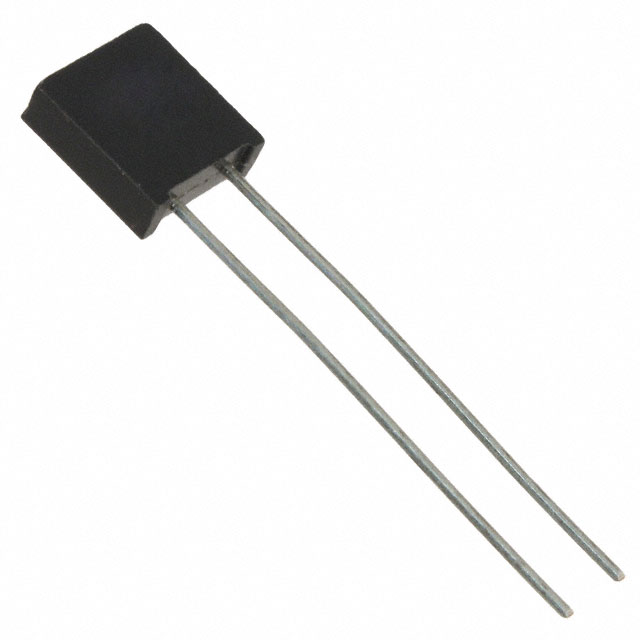

lmages are for reference only.Payment Methods
Delivery Services
20 kOhms ±0.5% 0.6W Through Hole Resistor Radial Non-Inductive Metal Foil
Quick Inquiry
Y118920K0000DR0L
Specifications
| Category | Resistors - Through Hole Resistors - |
| Manufacturer | VPG Foil Resistors |
| Series | RNC90Z |
| Packaging | Bulk |
| RoHS Status | |
| Resistance | 20 kOhms |
| Tolerance | ±0.5% |
| Power (Watts) | 0.6W |
| Composition | Metal Foil |
| Features | Non-Inductive |
| Temperature Coefficient | ±2ppm/°C |
| Operating Temperature | -50°C ~ 175°C |
| Package / Case | Radial |
| Supplier Device Package | Radial |
| Size / Dimension | 0.300" L x 0.105" W (7.62mm x 2.67mm) |
| Height - Seated (Max) | 0.336" (8.53mm) |
| Number of Terminations | 2 |
| Failure Rate | R (0.01%) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | Y118920K0000FR13L | Y118920K0000TR23R | Y118920K0000VM0L | Y1189200R000VR0L |
| Manufacturer | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors |
| RoHS Status | ||||
| Description | RES 20K OHM 1% 0.6W RADIAL | RNC90Z20K000TR SLDC T/R 157210 | RNC90Z20K000VM 131448 | RNC90Z200R00VR 131448 |
| Series | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors |
| Packaging | Bulk | Bulk | Bulk | Bulk |
