Y146712R0000T9L

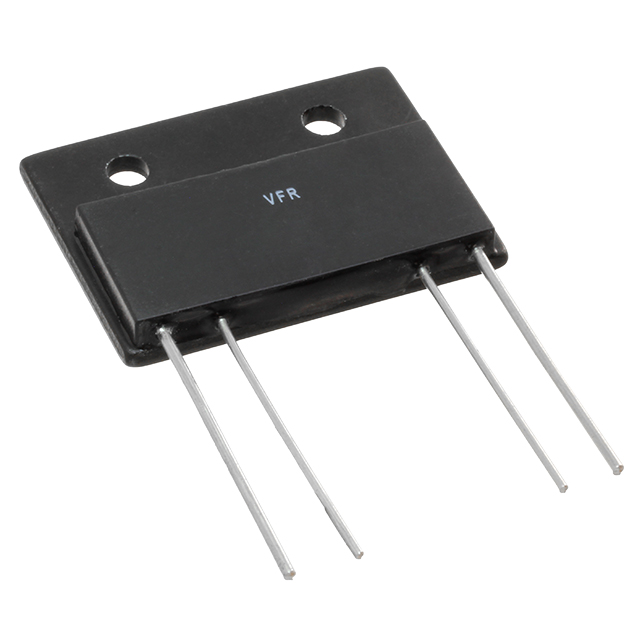

lmages are for reference only.Y146712R0000T9L
RES 12 OHM 10W 0.01% RADIAL
DatasheetRadial - 4 Leads
52,136 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12 Ohms ±0.01% 10W Through Hole Resistor Radial - 4 Leads Current Sense, Moisture Resistant, Non-Inductive Metal Foil
Y146712R0000T9L
| Category | Resistors - Through Hole Resistors - |
| Manufacturer | VPG Foil Resistors |
| Series | VCS332Z |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Resistance | 12 Ohms |
| Tolerance | ±0.01% |
| Power (Watts) | 10W |
| Composition | Metal Foil |
| Features | Current Sense, Moisture Resistant, Non-Inductive |
| Temperature Coefficient | ±0.2ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | Radial - 4 Leads |
| Supplier Device Package | - |
| Size / Dimension | 1.339" L x 0.210" W (34.00mm x 5.33mm) |
| Height - Seated (Max) | 1.024" (26.00mm) |
| Number of Terminations | 4 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | Y146712R0000B9L | Y14670R25000D0L | Y14670R25000D9L | Y14670R30000D0L |
| Manufacturer | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | RES 12 OHM 10W 0.1% RADIAL | RES 0.25 OHM 10W 0.5% RADIAL | RES 0.25 OHM 10W 0.5% RADIAL | RES 0.3 OHM 10W 0.5% RADIAL |
| Series | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors |
| Packaging | Bulk | Bulk | Bulk | Bulk |
