YM120C15N182

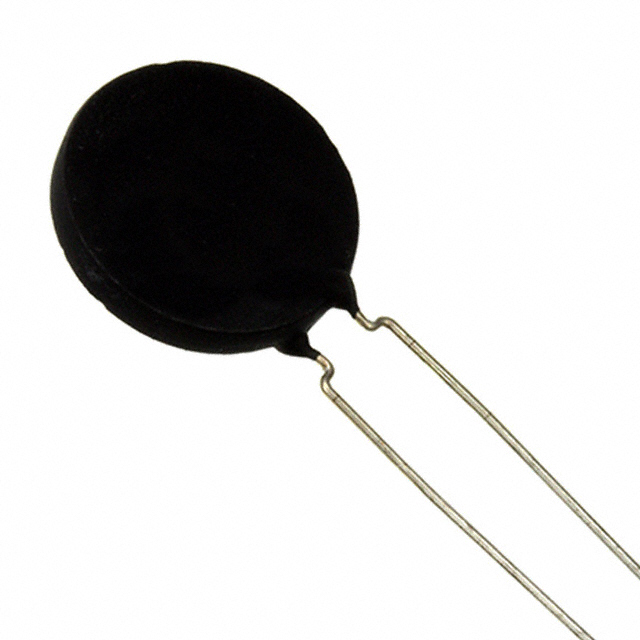

lmages are for reference only.YM120C15N182
PTC RESET FUSE 265V 16MA RADIAL
DatasheetRadial, Disc
94,651 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Ceramic PTC Resettable Fuse 265V 16 mA Ih Through Hole Radial, Disc
YM120C15N182
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Amphenol Thermometrics |
| Series | YM |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Ceramic |
| Voltage - Max | 265V |
| Current - Hold (Ih) (Max) | 16 mA |
| Current - Trip (It) | 23 mA |
| Current - Max | 100 mA |
| Resistance - 25°C (Typ) | 1.8 kOhms |
| Operating Temperature | 0°C ~ 55°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.157" Dia x 0.177" T (4.00mm x 4.50mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.200" (5.08mm) |
| Approval Agency | - |
| Time to Trip | - |
| Resistance - Initial (Ri) (Min) | - |
| Resistance - Post Trip (R1) (Max) | - |
| Grade | - |
| Qualification | - |
| Base Product Number | YM12 |
| Product Attribute |  |
 |
 |
 |

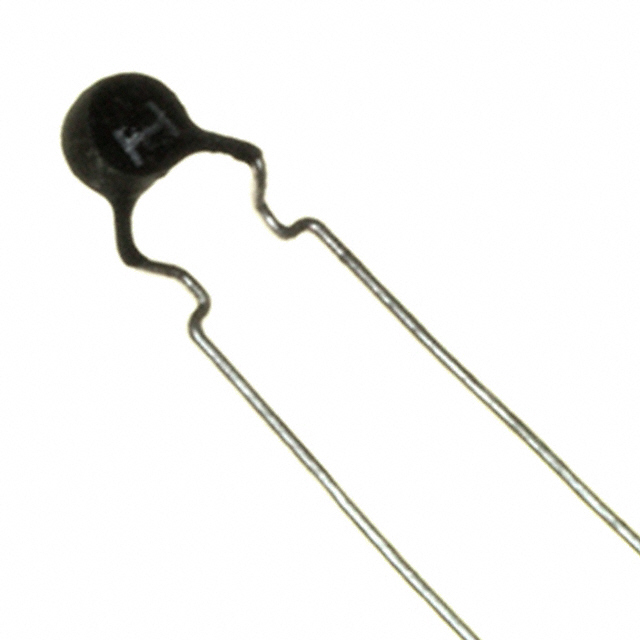

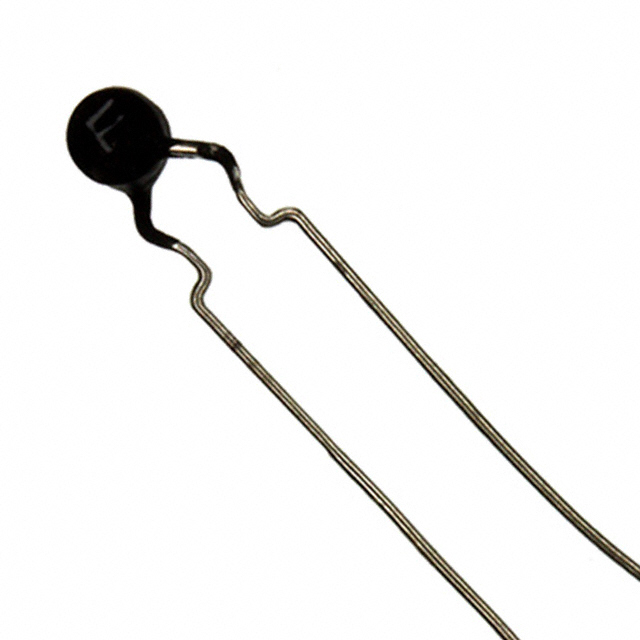

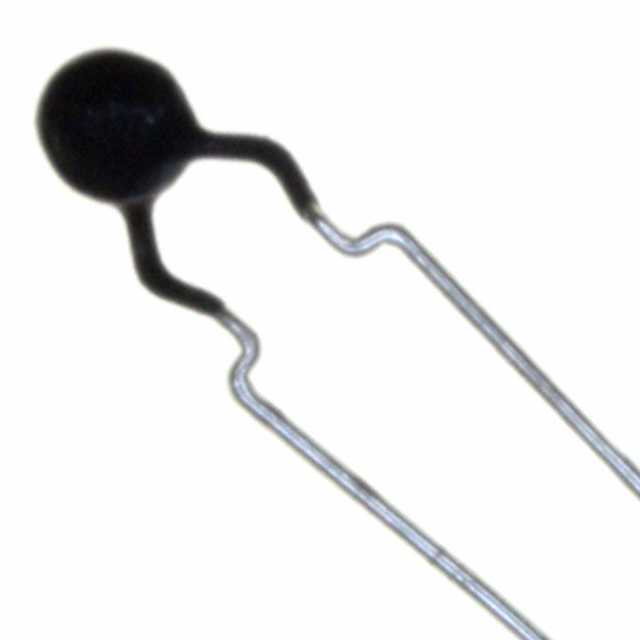

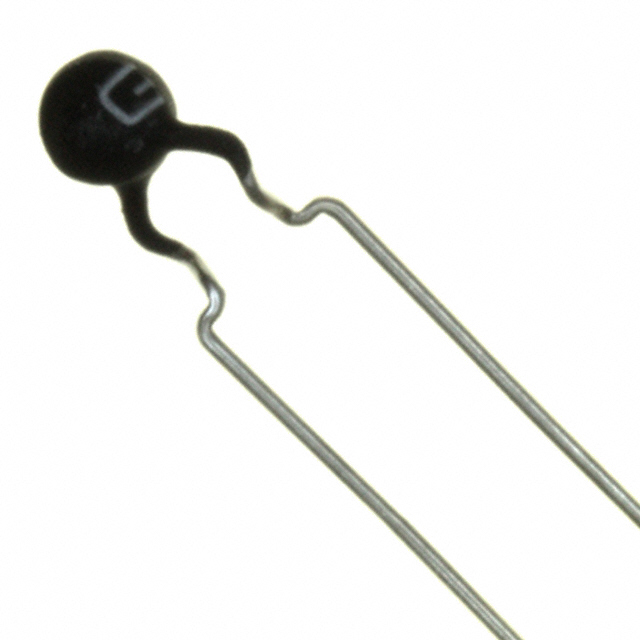

| Part Number | YM120C20N122 | YM120C30N601 | YM120C45N301 | YM120C60N151 |
| Manufacturer | Amphenol Thermometrics | Amphenol Thermometrics | Amphenol Thermometrics | Amphenol Thermometrics |
| RoHS Status | RoHS Compliant | |||
| Description | PTC RESET FUSE 265V 20MA RADIAL | PTC RESET FUSE 265V 28MA RADIAL | PTC RESET FUSE 265V 39MA RADIAL | PTC RESET FUSE 265V 57MA RADIAL |
| Series | YM | YM | YM | YM120 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
