YQD120N0070
lmages are for reference only.YQD120N0070
PTC RESET FUSE 265V 65MA RADIAL
DatasheetRadial, Disc
15,734 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Ceramic PTC Resettable Fuse 265V 65 mA Ih Through Hole Radial, Disc
YQD120N0070
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Amphenol Thermometrics |
| Series | YQ |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Ceramic |
| Voltage - Max | 265V |
| Current - Hold (Ih) (Max) | 65 mA |
| Current - Trip (It) | 130 mA |
| Current - Max | 300 mA |
| Resistance - 25°C (Typ) | 70 Ohms |
| Operating Temperature | 0°C ~ 60°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | - |
| Lead Spacing | 0.201" (5.10mm) |
| Approval Agency | - |
| Time to Trip | - |
| Resistance - Initial (Ri) (Min) | - |
| Resistance - Post Trip (R1) (Max) | - |
| Grade | - |
| Qualification | - |
| Base Product Number | YQD120 |
| Product Attribute |  |
 |
 |
 |

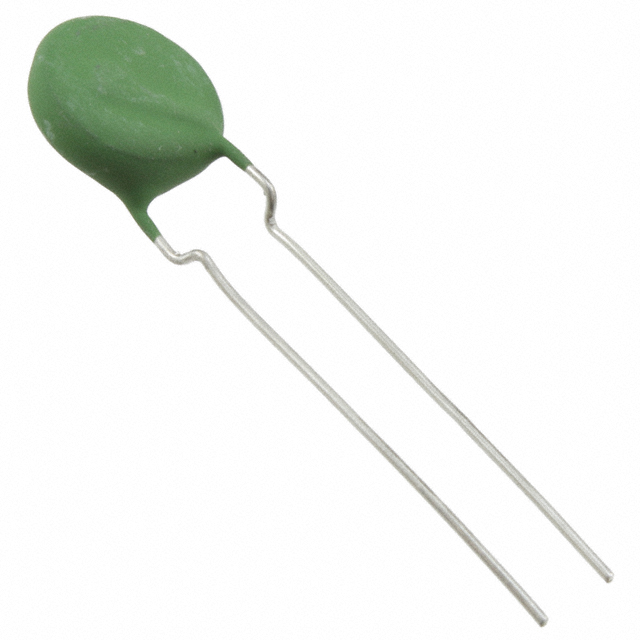

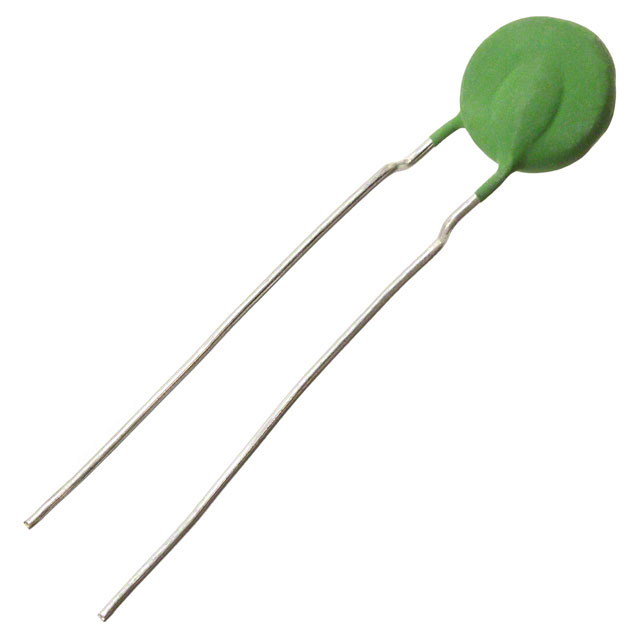

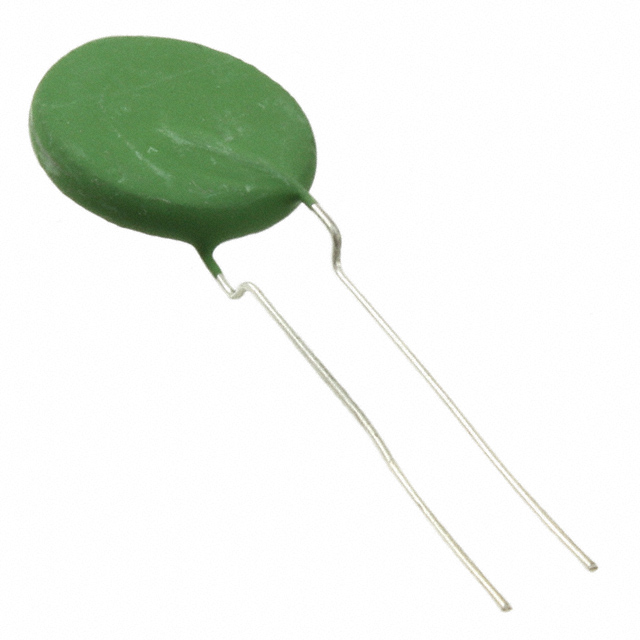

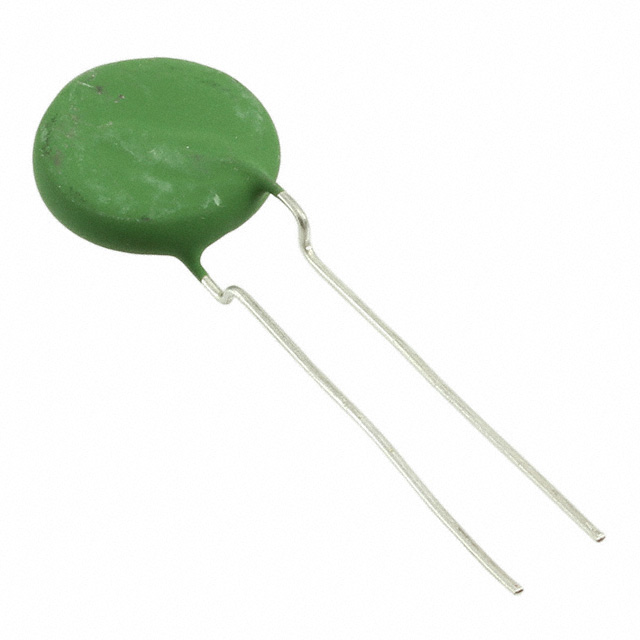

| Part Number | YQD120N0006 | YQD120N0010 | YQD120N0015 | YQD120N0025 |
| Manufacturer | Amphenol Thermometrics | Amphenol Thermometrics | Amphenol Thermometrics | Amphenol Thermometrics |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | PTC RESET FUSE 265V 390MA RADIAL | PTC RESET FUSE 265V 250MA RADIAL | PTC RESET FUSE 265V 180MA RADIAL | PTC RESET FUSE 265V 130MA RADIAL |
| Series | YQ | YQ | YQ | YQ |
| Packaging | Bulk | Bulk | Bulk | Bulk |
