YQS5878PTF
lmages are for reference only.YQS5878PTF
PTC RESET FUSE 240V 45MA RADIAL
DatasheetRadial, Disc
23,800 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Ceramic PTC Resettable Fuse 240V 45 mA Ih Through Hole Radial, Disc
YQS5878PTF
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Amphenol Thermometrics |
| Series | PTF |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Ceramic |
| Voltage - Max | 240V |
| Current - Hold (Ih) (Max) | 45 mA |
| Current - Trip (It) | 120 mA |
| Current - Max | - |
| Resistance - 25°C (Typ) | 250 Ohms |
| Operating Temperature | 10°C ~ 55°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.650" Dia x 0.272" T (16.50mm x 6.90mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.374" (9.50mm) |
| Approval Agency | - |
| Time to Trip | - |
| Resistance - Initial (Ri) (Min) | - |
| Resistance - Post Trip (R1) (Max) | - |
| Grade | - |
| Qualification | - |
| Base Product Number | YQS5 |
| Product Attribute |  |
 |
 |
 |

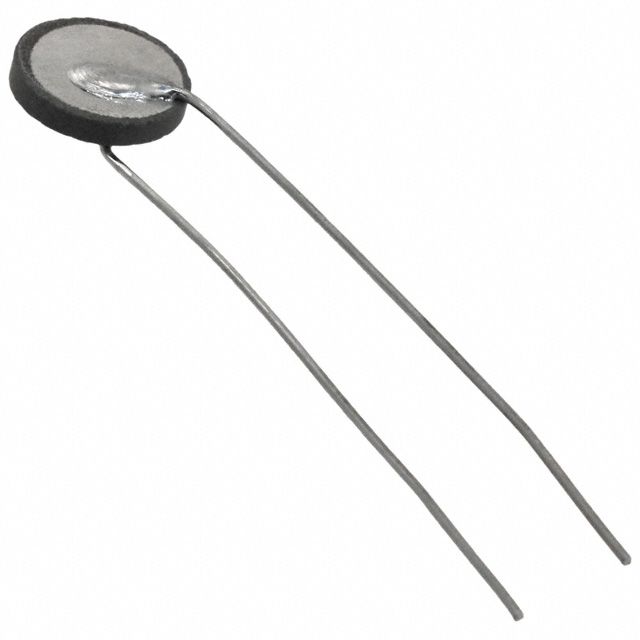

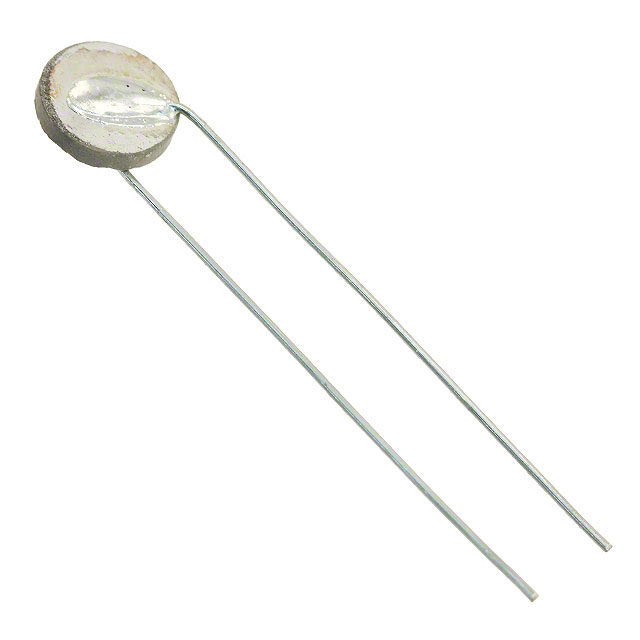

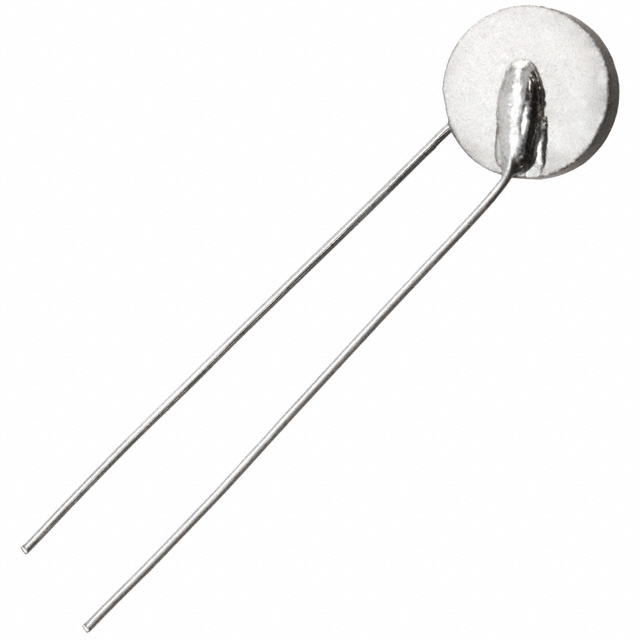

| Part Number | YQS5679 | YQS5745PTO | YQS5749PTO | YQS5750PTO |
| Manufacturer | Amphenol Thermometrics | Amphenol Thermometrics | Amphenol Thermometrics | Amphenol Thermometrics |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | PTC RESET FUSE | PTC RESET FUSE 25V RADIAL DISC | PTC RESET FUSE 25V RADIAL DISC | PTC RESET FUSE 25V RADIAL DISC |
| Series | YQ | PTO | PTO | PTO |
| Packaging | Bulk | Bulk | Bulk | Bulk |
