Product CatalogPart Number
YQS8123
Manufacturer
Amphenol ThermometricsDescription
PTC RESET FUSE 30V 250MA RADIAL
Datasheet
DatasheetPackage
Radial, Disc
In Stock
71,190 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
YQS8123
YQS8123
lmages are for reference only.Payment Methods
Delivery Services
Ceramic PTC Resettable Fuse 30V 250 mA Ih Through Hole Radial, Disc
Quick Inquiry
YQS8123
Specifications
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Amphenol Thermometrics |
| Series | YP |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Ceramic |
| Voltage - Max | 30V |
| Current - Hold (Ih) (Max) | 250 mA |
| Current - Trip (It) | 500 mA |
| Current - Max | 1 A |
| Resistance - 25°C (Typ) | 4.6 Ohms |
| Operating Temperature | 0°C ~ 60°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.256" Dia x 0.138" T (6.50mm x 3.50mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.236" (6.00mm) |
| Approval Agency | - |
| Time to Trip | - |
| Resistance - Initial (Ri) (Min) | - |
| Resistance - Post Trip (R1) (Max) | - |
| Grade | - |
| Qualification | - |
| Base Product Number | YQS8 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

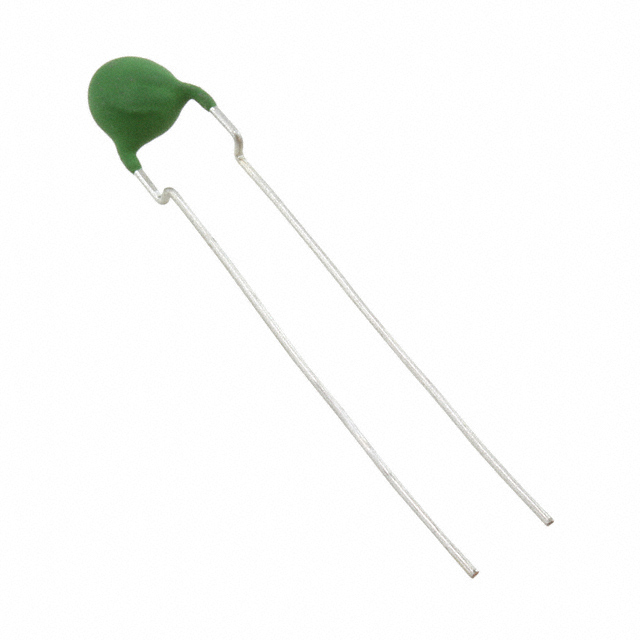

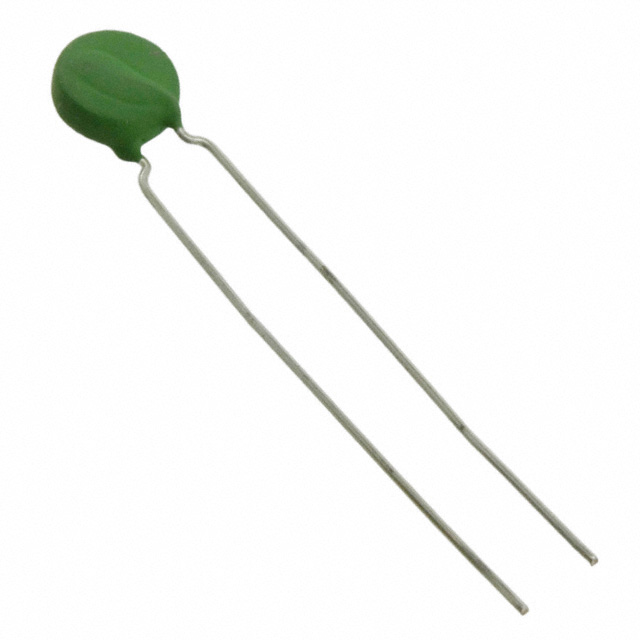

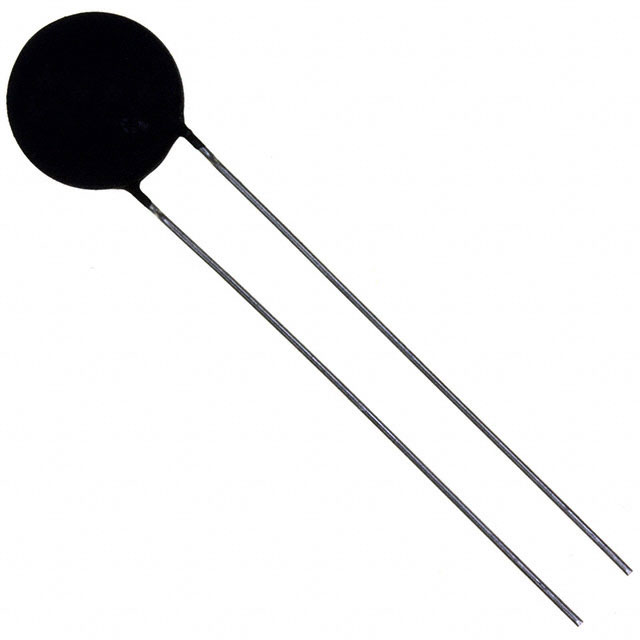

| Part Number | YQS8120 | YQS8121 | YQS8122 | YQS8065 |
| Manufacturer | Amphenol Thermometrics | Amphenol Thermometrics | Amphenol Thermometrics | Amphenol Thermometrics |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | PTC RESET FUSE 420V 21MA RADIAL | PTC RESET FUSE 265V 35MA RADIAL | PTC RESET FUSE 30V 600MA RADIAL | PTC RESET FUSE 265V 168MA RADIAL |
| Series | YP | YP | YP | YM |
| Packaging | Bulk | Strip | Bulk | Bulk |
