eZ8 Encore!® XP® Microcontroller IC 8-Bit 20MHz 1KB (1K x 8) FLASH 20-SSOP
Z8F012AHH020EG2156
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Zilog |
| Series | Encore!® XP® |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Core Processor | eZ8 |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | IrDA, UART/USART |
| Peripherals | Brown-out Detect/Reset, LED, LVD, POR, PWM, Temp Sensor, WDT |
| Number of I/O | 17 |
| Program Memory Size | 1KB (1K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 16 x 8 |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Data Converters | A/D 7x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-SSOP |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Base Product Number | Z8F012 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | Z8F012AHH020SG2156 | Z8F012AHJ020EG2156 | Z8F012AHJ020SG2156 | Z8F0113HH005EG2156 |
| Manufacturer | Zilog | Zilog | Zilog | Zilog |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

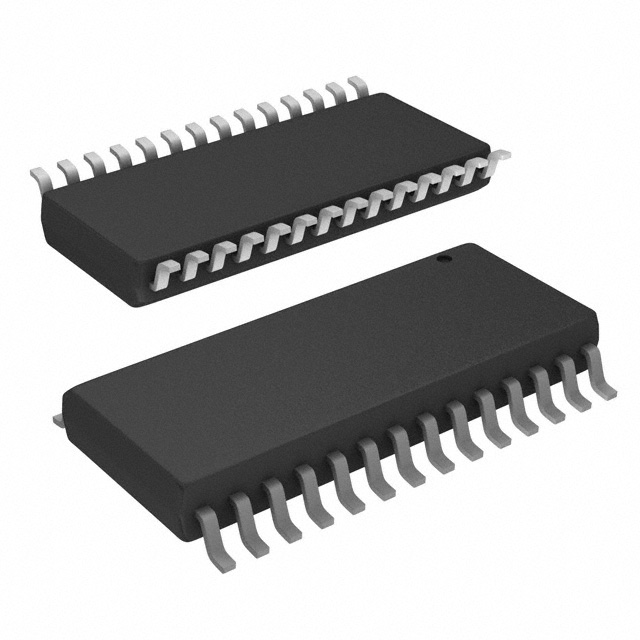

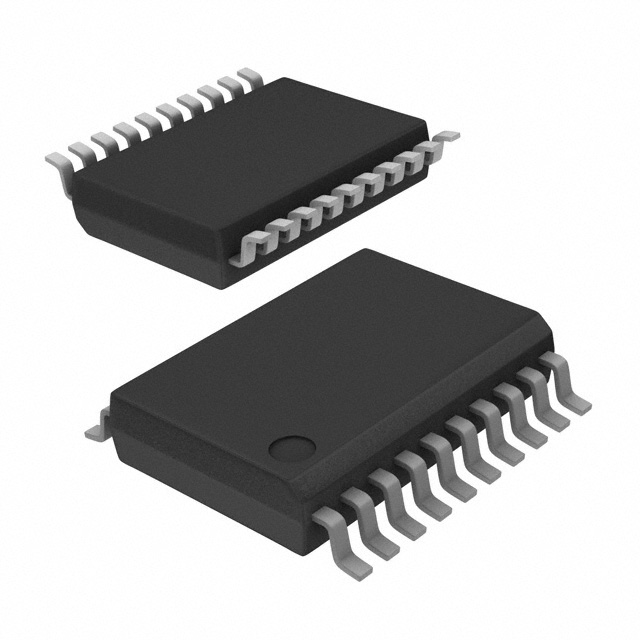

| Description | IC MCU 8BIT 1KB FLASH 20SSOP | IC MCU 8BIT 1KB FLASH 28SSOP | IC MCU 8BIT 1KB FLASH 28SSOP | IC MCU 8BIT 1KB FLASH 20SSOP |
| Series | Zilog | Zilog | Zilog | Zilog |
| Packaging | Tube | Tube | Tube | Tube |
