ZN4PD1-183W-S+
lmages are for reference only.ZN4PD1-183W-S+
4 WAYS PWRSPLTR, 4000-18000 MHZ
DatasheetModule, SMA Connectors
65,695 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Power Divider 4 GHz ~ 18 GHz Isolation (Min) 18dB, 1.6 VSWR (Max), 6° Imbalance (Max) Module, SMA Connectors
ZN4PD1-183W-S+
| Category | RF and Wireless - RF Power Dividers-Splitters - |
| Manufacturer | Mini-Circuits |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Insertion Loss | 0.7dB |
| Frequency | 4 GHz ~ 18 GHz |
| Specifications | Isolation (Min) 18dB, 1.6 VSWR (Max), 6° Imbalance (Max) |
| Size / Dimension | 1.980" L x 1.460" W x 0.430" H (50.29mm x 37.08mm x 10.92mm) |
| Package / Case | Module, SMA Connectors |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |

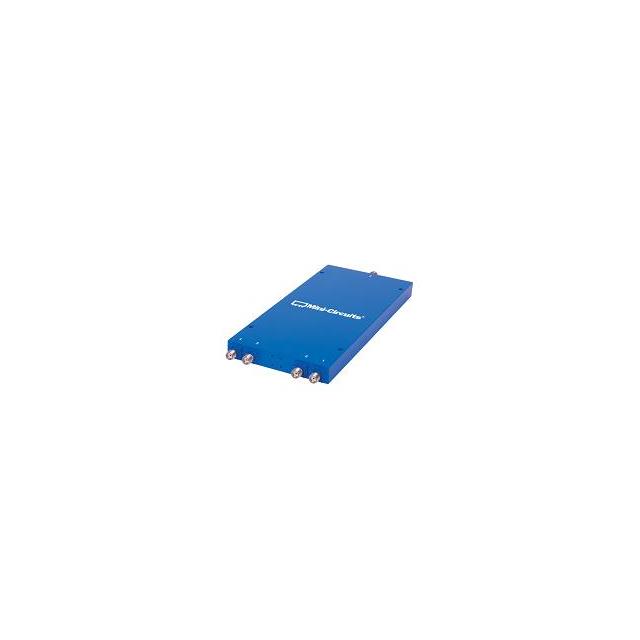

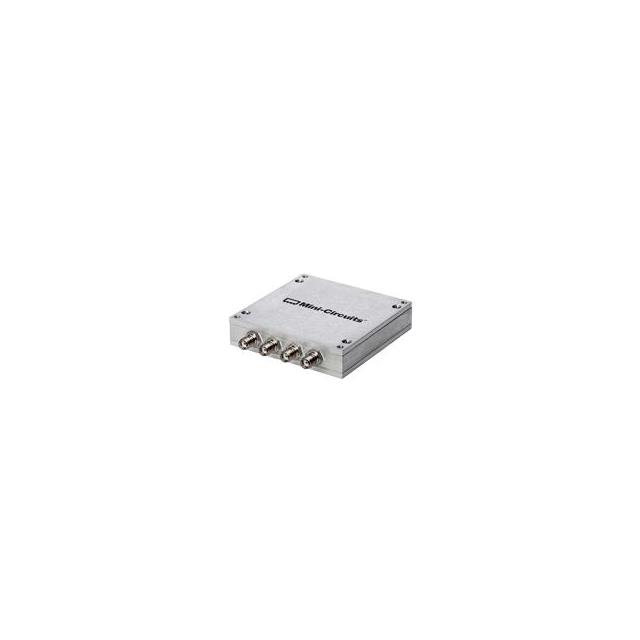

| Part Number | ZN4PD1-183W-S+ | ZN4PD-272-S+ | ZN4PD-272-S+ | ZN4PD-5R183-S+ |
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 4 WAYS PWRSPLTR, 4000-18000 MHZ | 4 WAYS PWRSPLTR, 500 - 2700 MHZ | 4 WAYS PWRSPLTR, 500 - 2700 MHZ | DC PASS PWRSPLTR, 500-18000 MHZ |
| Series | - | - | - | - |
| Packaging | Tray | Tray | Tray | Tray |
