50 Ohm Resistor - A Comprehensive Guide

Come in various resistance values, and among them, the 50 ohm resistor commonly use in applications requiring precise control over current and power. Resistors play a role in controlling the flow of electric current in electronic circuits. In this guide, we will explore everything you need to know about the 50 ohms resistor, including its features, types, color codes, applications, and more.

What is a 50 Ohm Resistor?

Features of 50 Ohms Resistor

50 Ohm Resistor Color Code

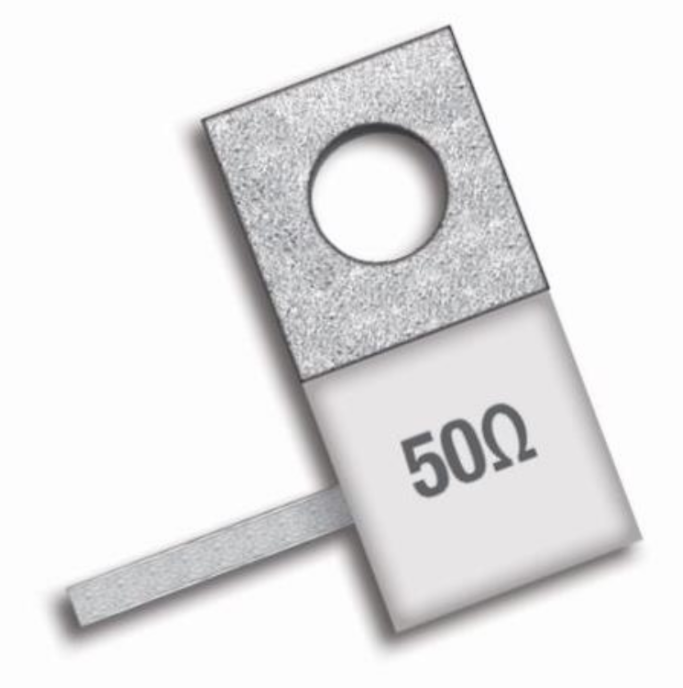

50 Ohm RF Resistor

50 Ohm Variable Resistor

Common Applications of 50 Ohm Resistors

Frequently Asked Questions [FAQ] About Resistor 50 Ohms

What is a 50 Ohm Resistor?

A 50Ω is a passive electronic component that resists the flow of electrical current. It offers a resistance of 50 ohms, meaning it will restrict the current flow to a level determined by Ohm’s law. For example, with a 50 Ω, applying a voltage of 5V across it will result in a current of 0.1 A (100mA).

50 ohms are popular because their specific use cases in both high- and low-power systems. Their resistance value makes them a go-to choice in applications where consistent current control is necessary. These resistors are available in various physical sizes and wattage ratings to suit different electronic needs.

Why 50 Ohms?

50-ohm is a standard impedance value in communication systems, especially in RF applications such as coaxial cables and antenna systems. This is because 50ohms provide a good balance between power handling and signal transmission efficiency, minimizing signal reflections in the circuit.

Features of 50 Ohms Resistor

Come in Different Types of 50-Ohm:

50 Ohm Carbon Resistor

Make from a carbon-based resistive material. Generally less accurate and prone to greater variation compared to metal film or metal oxide types. Typically use in low-power circuits or where cost is a major consideration. However, they often avoid in high-precision applications as their higher tolerance.

50 Ohm Load Resistor

Use to simulate a load in a circuit, helping test power supplies, amplifiers, and other devices. The load type absorbs current and dissipates it as heat. Load resistors often use in power testing circuits, amplifier circuits, and setups where controlled load conditions are necessary.

50 Ohm Non Inductive Resistor

Specifically design to minimize inductance, making it ideal for high-frequency applications. Inductance can interfere with signal transmission, so use non-inductive resistors to prevent such issues. Typically employ in RF circuits, audio systems, and precision measurement instruments where inductive effects will distort signals.

50 Ohm Power Resistor

Design to handle higher levels of current and dissipate more heat than standard types. Built with better heat dissipation capabilities, power resistors can endure more stress without overheating. They often make from materials such as metal oxide or wirewound for enhanced power handling. Power types use in applications where need to control large currents, such as in power supplies, automotive circuits, and high-power amplifiers.

50 Ohm Resistor For Alternator

Use in automotive circuits, specifically in alternators, to regulate voltage and ensure a steady output. These types are necessary for preventing voltage fluctuations that can damage sensitive components such as batteries. They help manage the output voltage from the alternator to maintain the electrical system’s stability, ensuring proper charging and safe operation of the vehicle's electrical components.

Each of these 50-Ohms types design to meet specific needs in various applications, from precision signal processing and RF circuits to high-power automotive and industrial systems. By selecting the right type of resistor based on your requirements, you can ensure your circuit performs optimally and reliably.

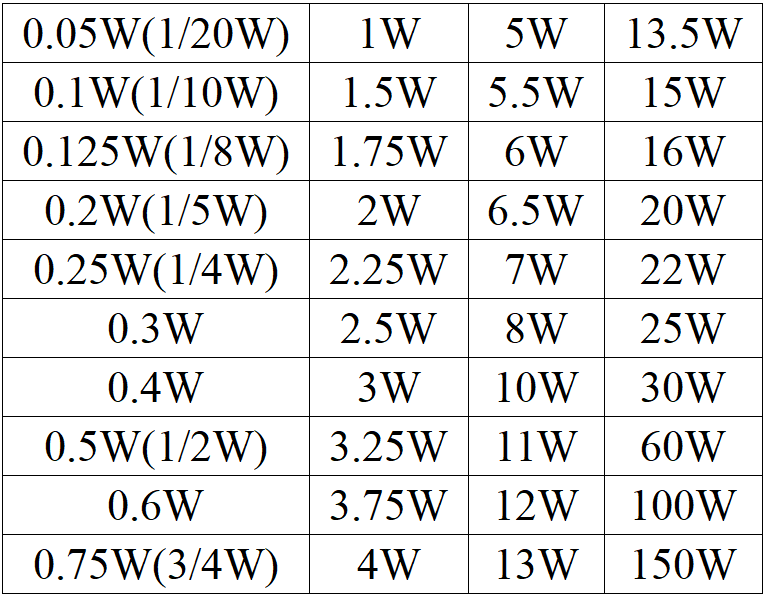

Wattage Ratings for 50-Ohm

Refer to the amount of power a component can safely dissipate without overheating. When choosing a 50ohm for your circuit, it's necessary to select one with an appropriate wattage rating to handle the power requirements of your application. Below is a breakdown of various 50 Ohm resistors with different watt ratings and their typical uses:

50 Ohm 1 Watt Resistor

Suitable for low-power applications where require minimal power dissipation. This type can safely dissipate up to 1W of power without the risk of overheating or failure. It commonly use in small, low-power circuits, such as signal processing, voltage dividers, and low-current testing setups.

50 Ohm 2 Watt Resistor

Design for slightly higher power applications. With the ability to dissipate up to 2W of power, ideal for medium-power circuits such as small audio amplifiers or simple power supply regulation systems. Typically use in environments where require moderate power handling without the need for extensive heat dissipation.

50 Ohm 5 Watt Resistor

Offer higher power dissipation capabilities, making it suitable for applications where a moderate amount of heat will generate. Use in power supplies, low to medium-power amplifiers, and various industrial control systems that require higher current handling. 5W is more durable and capable of handling continuous power without degradation.

50 Ohm 10W Resistor

10 watt is typically use in higher-power circuits where the resistor needs to handle more energy dissipation. Find in larger power supplies, heavy-duty audio amplifiers, or high-current applications such as motor controllers or industrial machinery. The ability to dissipate up to 10 watts makes it an excellent choice for systems that demand a balance between size and power handling.

50 Ohm 25 Watt Resistor

25W design to handle even more substantial amounts of power. Commonly use in high-power circuits, including larger power supplies, high-performance amplifiers, and test equipment. 25 W use where continuous or peak power dissipation exceeds typical limits and needs to manage effectively to prevent overheating or failure.

50 Ohm 50 Watt Resistor

Use in heavy-duty applications that require substantial power dissipation. 50W find in systems such as industrial equipment, high-power audio amplifiers, and large power supplies. 50-watts can handle significant amounts of current, making it ideal for scenarios where the resistor is under constant high load. This size also offers improved heat dissipation, preventing thermal damage.

50 Ohm 100 Watt Resistor

Typically employ in high-power applications. 100W use in large-scale power systems, testing equipment, and in situations where high power must dissipate safely over extended periods. They find in industrial machines, high-power electronics, and systems requiring high levels of current and voltage.

50 Ohm 250 Watt Resistor

The 250W use for extreme power dissipation scenarios. Commonly in industrial applications, power testing systems, and heavy-duty electrical equipment. With the ability to handle large amounts of power, 250-watts design to ensure safety and reliability in systems that operate under high power for extended periods, such as generators, large amplifiers, and power distribution systems.

50 Ohm 500 Watt Resistor

The 500W is an ultra-high-power type use in extreme power environments. These often in research labs, industrial settings, and large power systems. With their ability to handle enormous amounts of power, they are necessary for specialized applications such as power electronics testing, high-capacity power supplies, and systems where significant heat dissipation need to maintain safety and performance.

Choosing the right wattage rating for your 50 Ohm resistor depends on the power requirements of your circuit. For low-power applications, a 1-watt or 2-watt type will suffice. For medium-power and high-power systems, resistors with ratings up to 500 watts are necessary to handle the heat generated without failure.

Package Types:

Through-Hole (Axial, Radial): Through-hole resistors are traditional and offer strong mechanical connections in a circuit. They are easy to handle, especially in manual assembly, and are ideal for use in PCB prototyping and repairs.

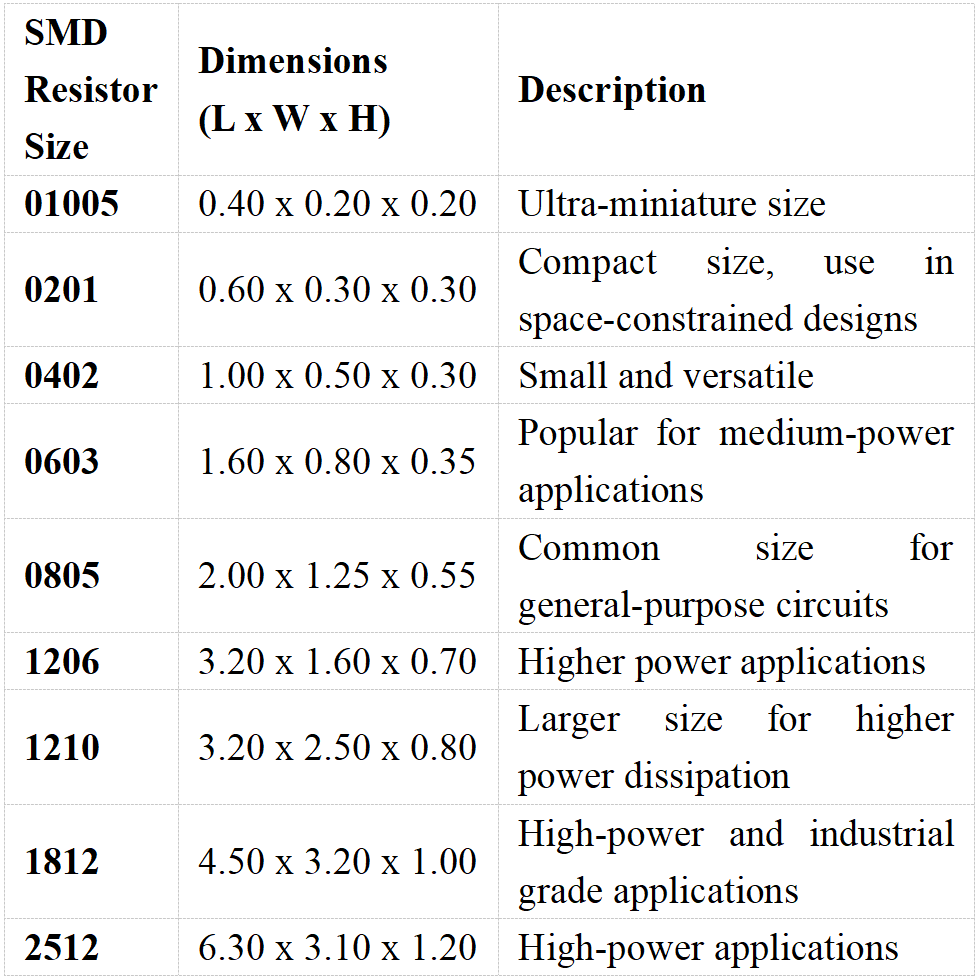

50 Ohm SMD Resistor

Have no leads and directly solder onto the surface of a PCB. SMD types are widely use in modern electronic products, as they help reduce the size and weight of devices. They also provide better reliability in high-frequency circuits.

50 Ohm Resistor Color Code

The colour coding is a standard way to mark the resistance value of a resistor. For 50-Ohm, the colors are typically follows one of these schemes:

4-Band Color Code:

Green (5) – Black (0) – Black (x1) – Gold (±5% tolerance)

Calculation: First two digits: Green (5) and Black (0) give 50. Multiplier: Black (×1), so the value remains 50ohms. Tolerance: Gold (±5%) means the resistor's value can vary by ±5% from the nominal resistance.

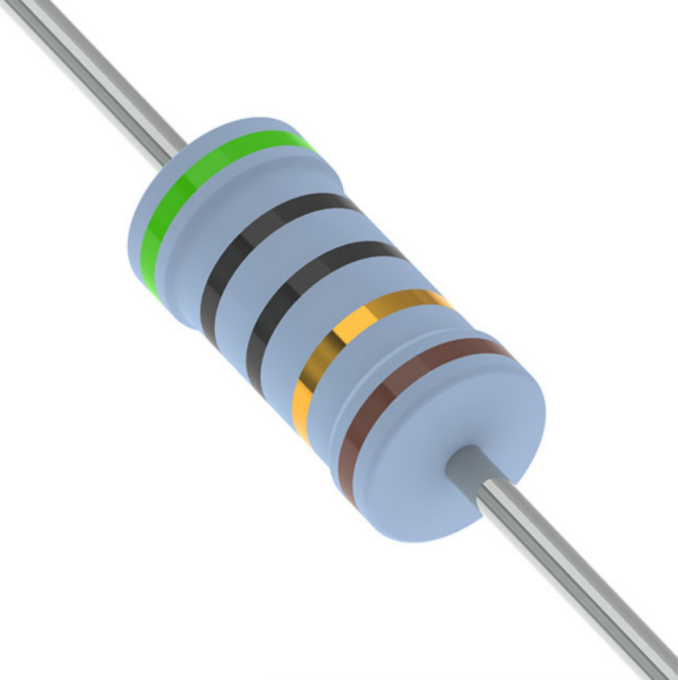

5-Band Color Code:

Green (5) – Black (0) – Black (x1) – Gold (x0.1) – Brown (±1%)

The value of this resistor calculate as: First three digits: 500 Multiplied by 0.1 (Gold band), giving 50 ohms. Tolerance is ±1% (Brown band).

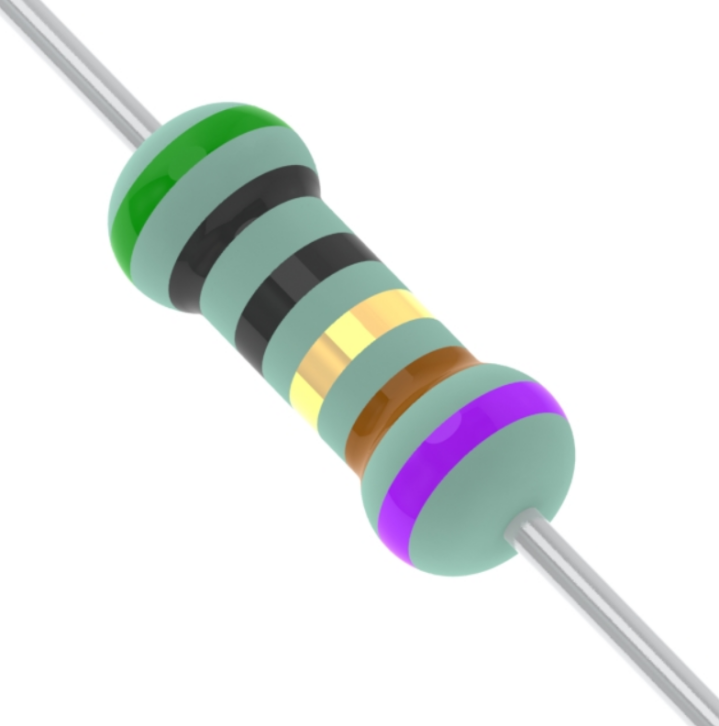

6-Band Color Code:

Green-Black-Black-Gold-Brown-Violet

Calculation: First three digits: Green (5), Black (0), Black (0) gives 500. Multiplier: Gold (×0.1) means the value is 50-ohms.

Tolerance: Brown (±1%) means the resistor's value can vary by ±1%. Temperature Coefficient: Violet (±300ppm/°C) means the resistor's value can change by ±300 parts per million per degree Celsius, indicating its sensitivity to temperature changes. So, this has a 50 ohm nominal value with ±1% tolerance and a ±300ppm/°C temperature coefficient.

This color-coding scheme is standard for most resistors, providing a quick and easy way to read their resistance values and tolerance.

50 Ohm RF Resistor

Typically use RF resistors in radio frequency (RF) applications, where the resistor place in circuits dealing with high-frequency signals. Here's what you should know about a 50-ohms RF resistor:

Impedance Matching: 50ohms is a standard impedance value for RF circuits, particularly for coaxial cables and transmission lines. Matching impedances is necessary to prevent signal reflection and power loss.

Frequency Response: RF types design to perform well at high frequencies (typically from a few MHz to GHz). They need to maintain a flat impedance response over a wide frequency range.

Power Rating: Often available in low power ratings, but some higher power versions exist for applications such as RF amplifiers or antenna matching.

Construction: Often thin-film or wire-wound depending on the application. Thin-film types prefer for precision, while wire-wound common for higher power handling.

Tolerance: RF resistors generally have tight tolerance ratings, often in the range of ±1% or ±0.5%, to ensure precise operation in sensitive RF circuits.

Low Inductance and Capacitance: RF resistors must have minimal inductance and capacitance to prevent altering the high-frequency signal. This is necessary for maintaining the integrity of the RF signal.

Common applications include antenna matching, ensuring that the antenna impedance matches the rest of the RF circuit; attenuators, reducing signal strength without distorting the signal; load-resistors, use in RF test equipment to simulate a load for signal testing; and signal termination, terminating RF lines in a way that minimizes signal reflection.

50 Ohm Variable Resistor

Often refer to as a rheostat or potentiometer, allows for adjustment of resistance within a 50-ohm range. Typically use in applications where require precise control of resistance, such as in signal processing, audio equipment, and calibration circuits.

Features of a 50Ohms Variable Resistor:

Adjustable Resistance Range: It allows you to vary the resistance between 0 and 50-ohms, providing flexibility in controlling the electrical parameters of the circuit.

Applications: Common in circuits where need impedance matching or tuning, such as audio systems, RF circuits, or as part of a feedback network in amplifiers.

Types:

Linear Potentiometer: Resistance changes linearly as the knob or slider adjust.

Logarithmic Potentiometer: Resistance changes in a logarithmic manner, which often use in audio volume control.

Precision Resistor: Offers tight tolerance for specific applications requiring exact resistance values.

Construction: These variable types usually make with a resistive element (often carbon or metal film) and a movable wiper that adjusts the resistance between the two outer contacts.

Power Rating: The power rating varies based on the design, but typical values will range from 0.25W to 1W, suitable for low-power applications.

Tolerance and Durability: Such as fixed resistors, variable types come with tolerance ratings, and the durability depends on the quality of construction. High-quality models design for smooth and long-lasting adjustments.

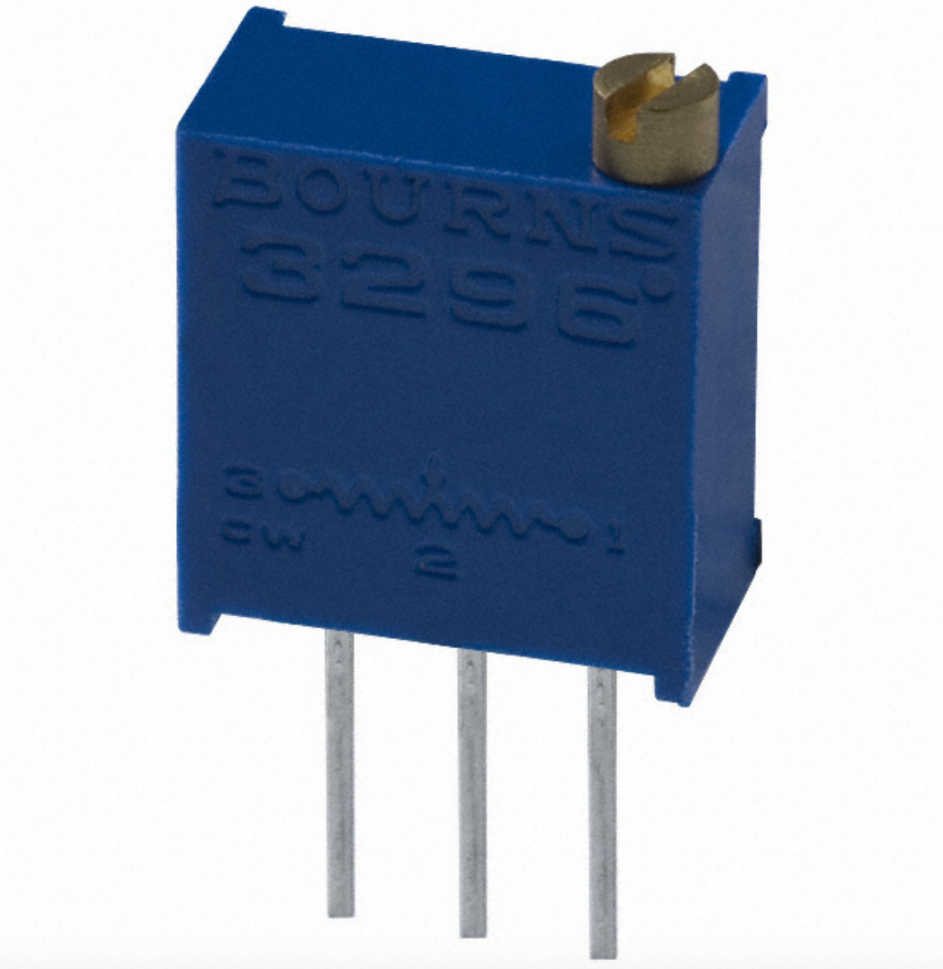

The 3296 series is a precision variable resistor often use for applications requiring fine adjustments in resistance, such as calibration, trimming, or impedance matching. A trimpot or potentiometer that allows for precise adjustment of resistance, typically in a small package. The 3296 50 ohm allows resistance adjustment within a 50Ω range, making it suitable for impedance matching in circuits, particularly in RF and signal processing.

The 3296 series comes with high precision and tight tolerance, often ±1% or better, which is necessary for accurate circuit calibration. The power rating for this series is generally around 0.5W to 1W, making it suitable for low to moderate power applications. It features a single-turn or multi-turn adjustment mechanism, depending on the version, allowing for precise control over resistance changes. Commonly use in RF circuits where require precise impedance matching, such as in antenna systems or RF amplifiers. It also use in signal calibration to fine-tune parameters in measurement devices and oscillators, as well as in audio equipment for adjusting frequency response. Additionally, it is useful in test equipment environments where require precise resistance adjustments. The 3296 comes in a small, compact package, typically in 5mm x 5mm or similar dimensions, design to mount on circuit boards. The device typically has a small screw or potentiometer shaft for resistance adjustment. Some versions seal for protection against environmental factors.

Common Applications of 50 Ohm Resistors

Commonly use in various electronics and electrical applications, particularly where need impedance matching or specific resistance values. One of the primary applications is in RF and microwave circuits, where a 50ohm is the standard value use for impedance matching. It ensures maximum power transfer between components and minimizes signal reflection in transmission lines, such as coaxial cables.

In antenna systems, a 50 Ω use to match the impedance of the antenna to the transmission line, ensuring efficient energy transfer and reducing signal loss or reflection. Also use for signal termination in RF circuits, ensuring that the signal absorb correctly at the end of transmission lines or cables to prevent reflections, especially in high-frequency systems.

Another key application is in attenuator circuits, where 50ohm use to reduce signal strength without altering the signal's waveform. This is especially in audio systems and communication equipment to control signal levels. 50-ohms frequently use in test equipment such as signal generators, oscilloscopes, and network analyzers to simulate a real load for testing circuit performance under standard conditions.

In some audio circuits, helps match the impedance of devices such as amplifiers, speakers, or microphones to ensure proper signal transfer and prevent distortion or loss. Also use in precision measurement applications, ensuring accuracy in voltage dividers or measurement tools. Additionally, 50Ω use in current-limiting circuits in power supplies to control current flow and protect sensitive components from damage.

In high-power amplifier circuits, use to dissipate heat generated by the high current or voltage in the system, ensuring safe and reliable operation. These applications primarily focus on achieving efficient power transfer, reducing signal reflection, and ensuring system stability in circuits dealing with high-frequency or power-sensitive operations.

Frequently Asked Questions [FAQ] About Resistor 50 Ohms

Where can I buy 50 ohms resistors?

You can buy 50 ohm resistors directly from the Orwintech Electronics website. They offer a variety of resistor types including standard and precision options suitable for different applications such as RF circuits, signal processing, and load testing. Be sure to check the product specifications for the exact resistance value, tolerance, and power rating you need. If you are looking for specific packaging types such as SMD or through-hole, Orwintech can provides detailed product descriptions to guide your selection..

What is the color code of a 50 ohm resistor?

The colour coding of a 50Ω typically follows the standard 4-band or 5-band system. For a 4-band type, the color code is: Green (5), Black (0), Black (×1), Gold (±5%). This represents the value of 50ohms with a tolerance of ±5%. In some cases, 50 ohm may code differently if they have a specific application or packaging. For precision resistors or for RF circuits, the color code will have a tighter tolerance or additional temperature coefficients.

Which is better, 50 ohm or 75 ohm?

Whether 50-ohm or 75-ohm is better depends on the specific application. 50 Ω typically prefer in RF circuits, including coaxial cables, where the standard impedance for signal transmission is 50ohms. This ensures maximum power transfer and minimal signal reflection. 75Ω, on the other hand, commonly use in video and broadcasting equipment as their lower signal loss at higher frequencies. The choice between 50Ω and 75Ω should base on the system's impedance requirements and the type of signal you’re working with.

Is there a 50 ohm resistor?

Yes, there is a 50-ohm resistor, and it commonly use in RF applications where 50 ohms is the standard impedance for transmission lines, such as in coaxial cables, antennas, and signal processing circuits. The 50R typically use for impedance matching, ensuring efficient signal transfer between components without reflection. Also use in attenuators, load resistors, and test equipment to simulate real-world loads. The 50 Ω is available in various forms, including fixed, variable, and surface-mount (SMD) types.

What is the use of 50 ohm resistor?

A 50-ohm use primarily in RF applications for impedance matching in circuits, such as in coaxial cables, antennas, and signal processing systems. It ensures that the impedance between components is consistent, preventing signal reflections and maximizing power transfer. This resistance also employ in attenuator circuits to control the strength of a signal without distorting it, as well as in load simulation for testing and calibration purposes in lab equipment. In audio systems, 50-ohm help match the impedance between different devices, ensuring proper signal transfer and reducing signal loss.

Understanding the 50 Ohm resistor and its various forms, applications, and wattage ratings is necessary for selecting the right resistors for your circuit. Whether you’re designing an RF system, building audio equipment, or working on power supply projects, the 50ohm offers the versatility and performance you need.
