BC337 NPN Transistor: Pinout, Datasheet and Equivalent

The BC337 NPN transistor is a popular and reliable semiconductor device used in a wide range of electronic circuits, from simple switching applications to low-power amplification stages. Known for its ability to handle higher collector current than many small-signal transistors, often choose the BC 337 for driving relays, LEDs, and audio loads. Its stable electrical characteristics, multiple gain variants, and easy-to-use through-hole package make it suitable for both beginners and professional designers. In this article, we will explore what the BC337 transistor is, how it works, its key features, technical specifications, equivalents, and common applications, helping you understand where and why use this transistor in practical electronics designs.

1. What is BC337?

2. BC337 Pinout, CAD Model

3. BC337 Features

4. BC337 Transistor Technical Specifications

5. BC337 Equivalent

6. BC337 Substitute

7. BC327: The PNP Complement

8. BC337 Transistors Application

9. 2N2222 vs BC337

10. Frequently Asked Questions [FAQ]

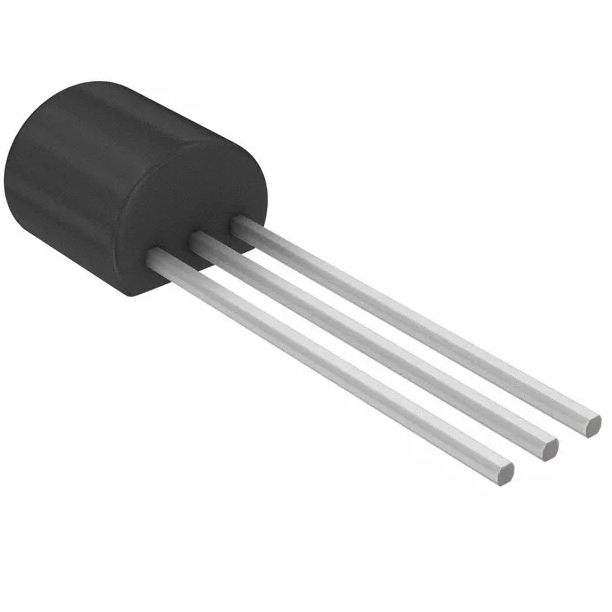

What is BC337?

The BC337 is a general-purpose NPN bipolar junction transistor (BJT) widely used in switching and amplification circuits. It value for its ability to handle a relatively high collector current of up to 800 mA, which makes it suitable for driving loads such as relays, LEDs, buzzers, and small motors. The BC337 operates with a maximum collector-emitter voltage of about 45 V, allowing it to work reliably in low- and medium-voltage designs.

The transistor is available in three gain classifications—BC337-16, BC337-25, and BC337-40—which differ in DC current gain (hFE). This allows designers to select the most suitable version for a specific application without changing the circuit layout. The BC337 commonly supply in a TO-92 through-hole package, making it easy to use in prototyping and educational projects. The NPN complementary device to the BC 327 transistor, often used together in amplifier stages.

BC337 Pinout, CAD Model

The BC 337 is typically available in a TO-92 through-hole package, making it easy to use for prototyping and educational purposes.

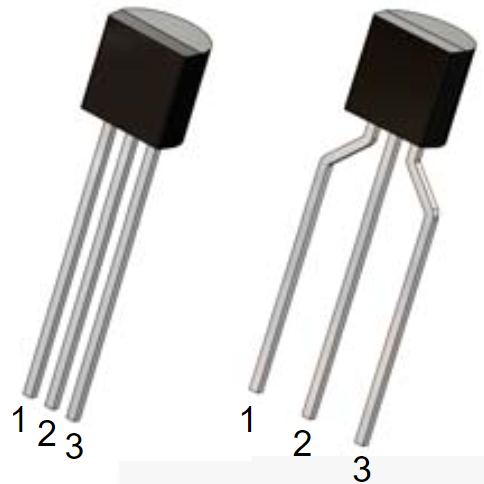

BC337 Pin Configuration

When viewing the flat side of the TO-92 package facing you, the pin order from left to right is Collector – Base – Emitter.

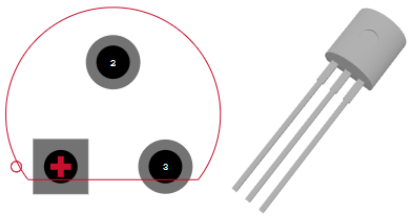

BC337 CAD Model

BC337 Features

A versatile general-purpose NPN transistor developed for reliable switching and amplification applications. Its ability to handle higher collector current compared to many small-signal transistors allows it to use in circuits that require stronger drive capability. This makes the circuit a practical choice for controlling relays, LEDs, lamps, and other moderate-current loads without the need for additional driver stages.

In analog electronics, the chip commonly use in AF (audio frequency) driver stages, where consistent gain and low distortion are important. It also performs well in low-power output stages, supporting stable operation in audio amplifiers and signal conditioning circuits. The transistor is available in multiple gain classifications, giving designers flexibility when selecting the appropriate device for specific circuit requirements. Additionally, the BC 337 is the NPN complementary transistor to the BC327, and both are frequently paired in push-pull amplifier designs to achieve balanced and efficient signal amplification.

BC337 Transistor Technical Specifications

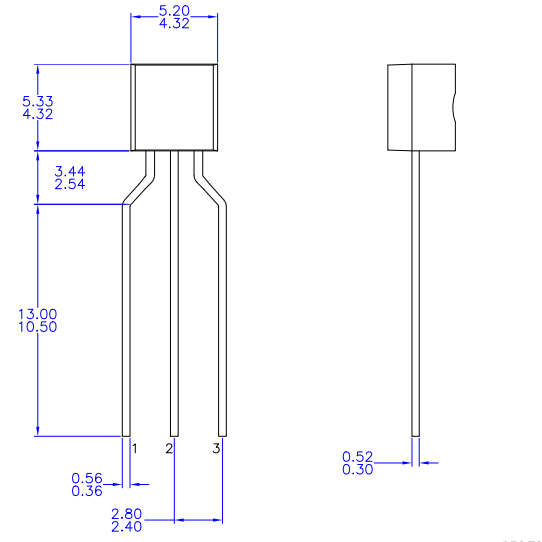

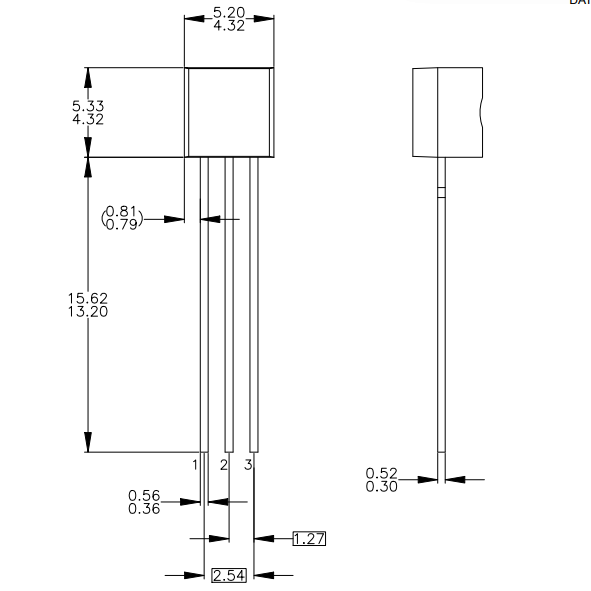

BC337 Package TO-92

The BC 337 transistor is commonly available in a TO-92 through-hole, which is compact and easy to handle for prototyping and circuit design.

BC337 Manufacturer

The transistor manufacture by several reputable semiconductor companies, with ON-Semiconductor and NXP Semiconductors being among the most prominent.

ON-SEMI produces the circuit with consistent quality, ensuring reliable performance for switching and amplification applications in consumer, industrial, and educational electronics. Their devices are widely available in TO-92 package.

NXP Semiconductors also manufactures the BC 337, offering transistors that meet the same electrical specifications, including the different gain variants BC337-16, BC337-25, and BC337-40. NXP devices are known for their high reliability and thermal stability, making them suitable for professional and hobbyist circuits alike.

Both manufacturers provide datasheets, CAD models, making it easier for designers to integrate the transistor into PCB layouts and electronic projects.

BC337 Equivalent

The following transistors can use as equivalents, provide voltage, current, and gain requirements match.

BC337 Substitute

When BC 337 is unavailable, use the following substitutes depending on circuit requirements:

2N7051 - A general-purpose NPN transistor suitable for switching and low-power amplification. It offers similar performance to the BC 337 and is ideal for driving LEDs, relays, and small signal loads.

BC338 - A higher-current version of the BC 337, capable of handling larger loads. This makes it perfect for driver stages, small motors, and medium-power amplifier circuits where require more collector current.

BC487 - An NPN transistor commonly used in audio and signal amplification circuits. It can replace the BC 337 in applications requiring low-noise and stable gain performance.

2N2222 - One of the most widely used NPN transistors for switching applications. It provides reliable operation in general-purpose circuits and can serve as a direct replacement for BC 337 in many designs.

2N3904 - A standard low-power NPN transistor suitable for general-purpose switching and amplification. Often use in educational projects and small-signal circuits.

2N4404 - An NPN transistor with electrical characteristics similar to the BC 337, ideal for medium-current circuits and signal amplification applications, providing flexibility in PCB and prototyping projects.

Always verify voltage ratings, current capacity, and pin configuration before substitution.

BC327: The PNP Complement

The BC327 is a PNP bipolar junction transistor (BJT) and serves as the complementary pair to the BC337 NPN transistor. In many electronic circuits, use NPN and PNP transistors together to form push-pull amplifier stages, driver circuits, and low-power output stages, where symmetry and balanced performance are essential. The BC327 can handle a maximum collector current of 800 mA and withstand a collector-emitter voltage of up to 45 V, making it an ideal match for the BC337 in circuits requiring moderate current and voltage handling.

In practical applications, pairing the BC327 with the BC337 allows for efficient amplification of AC signals. For example, in audio amplifier circuits, the BC337 handles the positive half of the waveform while the BC327 handles the negative half, resulting in reduced distortion and improved efficiency. This complementary combination also use in relay drivers, LED drivers, and general switching circuits, providing balanced control for both polarities of current.

The BC327 is typically available in a TO-92 through-hole package, which is compact, easy to handle, and widely compatible with breadboards, PCBs, and educational electronics projects. Its reliability, moderate current handling, and complementary relationship with the BC337 make it one of the most commonly used PNP transistors in electronics design, particularly where require paired NPN-PNP stages for robust performance.

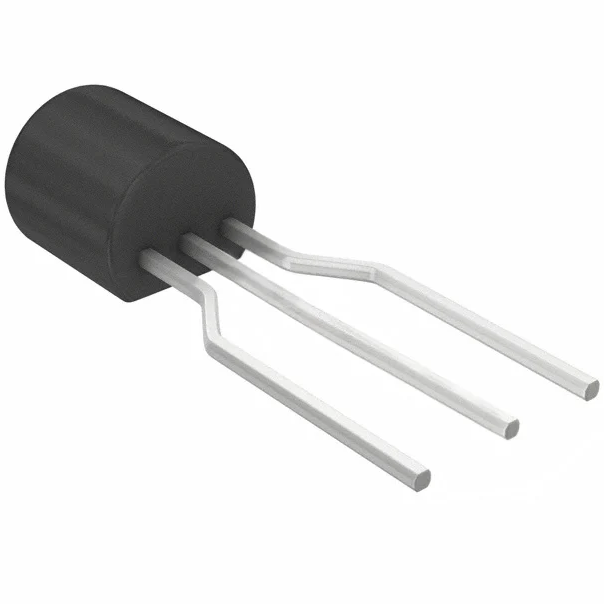

BC337 Transistors Application

The NPN transistor is a highly versatile semiconductor device used in a wide range of electronic applications, thanks to its ability to handle moderate collector currents and provide stable amplification. One of its primary uses is in switching circuits, where it can control relays, LEDs, lamps, and small motors, allowing low-current signals from microcontrollers or sensors to operate higher-current loads.

In analog circuits, commonly use in audio frequency (AF) driver stages, pre-amplifiers, and low-power output stages, where it ensures stable gain and low distortion. Its ability to amplify small signals makes it suitable for signal conditioning, sensor interfacing, and small-signal amplification in both consumer and industrial electronics.

The BC 337 is also widely employed in relay driver circuits, logic interface circuits, and general-purpose switching applications, including microcontroller output interfacing. Paired with its PNP complement, the BC327, the BC337 frequently use in push-pull amplifier configurations and complementary driver circuits, ensuring efficient and balanced performance in AC and DC signal applications.

Because of its TO-92 package, affordability, and availability, the BC337 remains a popular choice for hobbyists, educators, and professional circuit designers alike.

BC337 PDF Datasheet

The BC337 datasheet provides complete electrical characteristics, thermal data, and application notes.

2N2222 vs BC337

The both sre popular NPN general-purpose transistors, but they have differences that make them suited for slightly different applications.

The 2N2222 widely use in switching circuits and low-power amplification, offering fast switching speed and good availability in both TO-92 and metal can packages. Its maximum collector current is around 600 mA, and it commonly use in educational projects, hobby circuits, and small driver stages.

The BC337, on the other hand, design to handle higher collector current up to 800 mA, making it better for driving slightly larger loads such as relays, LEDs, and small motors. Also available in different gain variants (BC337-16, BC337-25, BC337-40), which provides flexibility in amplification applications.

In summary, often prefer 2N2222 for fast-switching and low-current circuits, while the BC337 better suit for higher-current driver and amplifier stages where need extra current handling and gain options. Both transistors are widely available and cost-effective, making them staples in electronics design.

Frequently Asked Questions [FAQ]

What is the use of BC337?

The BC337 is a general-purpose NPN transistor used for switching and amplification. It can control moderate-current loads such as relays, LEDs, and small motors using a small base current. It also use in audio driver stages, low-power output stages, and signal amplification circuits, making it suitable for both hobbyist and professional electronics applications.

How does BC337 work?

The BC 337 works as an NPN bipolar junction transistor (BJT), where apply a small current to the base controls a larger current flowing from collector to emitter. This allows it to act as a switch or amplifier. In switching mode, it turns devices on/off, while in amplification mode, it boosts small electrical signals for driving larger loads.

What is the difference between 2N2222A and BC337?

The 2N2222A is an NPN transistor with a maximum collector current of 600 mA and fast switching speed, ideal for low-current switching circuits. The BC337 can handle a higher collector current of 800 mA and is available in gain variants (BC337-16/25/40), making it better for driver and amplifier stages. Both are general-purpose NPN transistors but differ in current rating and gain options.

What is the difference between BC547B and BC337?

The BC547B is a low-current NPN transistor, capable of handling only 100 mA, while the BC337 can handle 800 mA, making it suitable for higher-load circuits. BC547B typically use in small-signal amplification, whereas BC 337 use in switching, driver circuits, and low-power output stages. The BC337 also has multiple gain variants for flexibility.

What is the substitute for a BC337 transistor?

Common substitutes include 2N2222, 2N3904, 2N4404, BC338, BC487, and 2N7051. These transistors have similar NPN characteristics, voltage ratings, and current handling capabilities. The selection depends on circuit requirements such as collector current, voltage, gain, and package type. Using an equivalent ensures reliable operation when a BC 337 is unavailable.

What is the maximum current of BC337?

The BC 337 transistor can handle a maximum collector current of 800 mA, which allows it to drive moderate loads like relays, LEDs, lamps, and small motors. For short-duration pulses, it can handle slightly higher currents, but continuous operation above 800 mA will damage the device. Suitable for switching and low-power amplification applications.

Conclusion

The BC337 is a reliable NPN general-purpose transistor widely used in both switching and amplification circuits. With its ability to handle moderate collector currents up to 800 mA and availability in multiple gain variants, it is suitable for applications ranging from relay and LED drivers to audio frequency amplifier stages. Its TO-92 package makes it ideal for prototyping and PCB designs, while its complementary PNP transistor, the BC327, allows for efficient push-pull and driver circuit designs.

Thanks to its affordability, widespread availability, and compatibility with numerous equivalents and substitutes like 2N2222, BC338, and 2N3904, the BC337 remains a staple component in both hobbyist projects and professional electronics. Whether you are designing low-power output stages, signal amplifiers, or switching circuits, the BC337 provides a reliable, high-performance solution for a variety of electronics applications.
