Complete Guide to 2K Resistor - 2000 Ohm

Among the many resistance values available, the 2K resistor (2000 ohms) is a popular choice for both analog and digital circuits. Resistors are one of the fundamental building blocks of electronics, use in almost every circuit. Commonly use in LED current limiting, transistor biasing, op-amp circuits, and voltage dividers. In this blog, we’ll cover everything you need to know about the 2K ohm resistor—its definition, types, colour code, applications, wattage ratings, tolerance levels, and even some common questions engineers and hobbyists ask.

What is a 2K Resistor?

Types of 2K Ohm Resistor

2K Resistor Color Code

Common Applications of Resistor 2K

Power Rating and Dissipation for 2K Ohms Resistor

Tolerance and Accuracy of Resistor 2K Ohm

2K Variable Resistor

Selecting the Right 2K Resistors

Frequently Asked Questions About 2K Resistor

What is a 2K Resistor?

An electronic component with a resistance value of 2000 ohms. The “K” stands for “kilo,” which means one thousand ohms.  Therefore, 2K = 2 × 1000 = 2000Ω. The main function of a 2000 ohm is to limit the flow of electrical current or control voltage within a circuit. It works according to Ohm’s Law, where resistance controls how much current flows when apply a voltage. The 2000Ω commonly use in many circuits such as LED current limiting, voltage dividers, transistor biasing, and signal conditioning. By providing a resistance of 2000 ohms, it helps regulate the operation of different components and ensures safe and stable performance.

In simple terms, a 2K ohm is a standard resistor that controls current and voltage in circuits, making it one of the most useful values in electronics.

Types of 2K Ohm Resistor

2K-ohms manufacture in different styles and materials, and  can find in both through-hole and surface-mount (SMD) packages.

Through-Hole 2K Resistor

Axial Resistor – Cylindrical resistors with color bands. They have long leads extending from each side, making them easy to place in breadboards and PCBs.

Radial Resistor – Leads come out from the same side of the resistor body. These are more compact and often use when vertical placement saves PCB space.

2K SMD Resistor

SMD packages design for compact, automated circuit assembly.

2K Ohm Resistor 0402 – Dimensions 1.0 × 0.5 mm. Extremely small, use in smartphones and high-density PCBs.

2K 0603 SMD Resistor – Dimensions 1.6 × 0.8 mm. Easier to solder, common in consumer electronics.

Larger SMD sizes (0805, 1206, etc.) exist for higher power ratings.

A 2K-ohm SMD is a surface-mount device package with a resistance value of 2000 ohms. Unlike through-hole resistors, which have leads that pass through holes in a circuit board, SMD packages design to mount directly onto the surface of a printed circuit board (PCB). This makes them ideal for compact, automated, and high-density electronic designs.

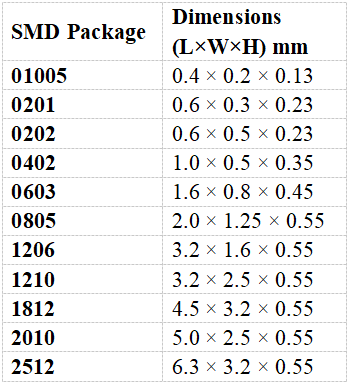

The most common SMD sizes include 0402 (1.0 × 0.5 mm) and 0603 (1.6 × 0.8 mm). The 0402 type is extremely small, often use in smartphones, tablets, and miniature devices where board space is limited. The 0603 type is slightly larger, easier to handle during assembly, and widely use in consumer electronics and industrial PCBs.

These sizes represent the industry-standard surface-mount resistor packages. Smaller ones such as 01005 and 0201 use in highly miniaturized devices such as smartphones, while larger sizes like 2512 can handle more power and use in industrial or automotive circuits.

2K Carbon Film Resistor

Make by applying a thin layer of carbon onto a ceramic substrate. One of the most widely use types as its low cost and availability. Carbon film provide reliable performance in general-purpose applications such as consumer electronics and basic circuit designs. However, they have higher noise levels and less precision compared to metal film or metal oxide types.

2K Metal Film Resistor

Manufacture by depositing a thin metallic layer on a ceramic rod. Known for its excellent precision, low noise, and stable performance across a wide temperature range. These types often use in audio circuits, measuring instruments, and precision electronic equipment where accuracy is necessary. They are slightly more expensive than carbon film but provide better long-term stability.

2K Metal Oxide Film Resistor

Use a coating of metal oxide material instead of pure-metal or carbon. This gives it superior heat resistance, high reliability, and excellent stability even in harsh environments. They commonly use in power supplies, automotive circuits, and industrial electronics where require durability and performance under high temperatures.

2K Wirewound Resistor

Make by winding a resistance wire, usually nickel-chromium, around a ceramic or fiberglass core. This construction allows it to handle high power ratings and provide accurate resistance values. Ideal for power applications, load testing, and circuits where high current handling is necessary. However, as its inductive properties, it is not suitable for high-frequency or fast-switching applications.

2K Resistor Color Code

Through-hole resistors identify by colour bands printed on their bodies.

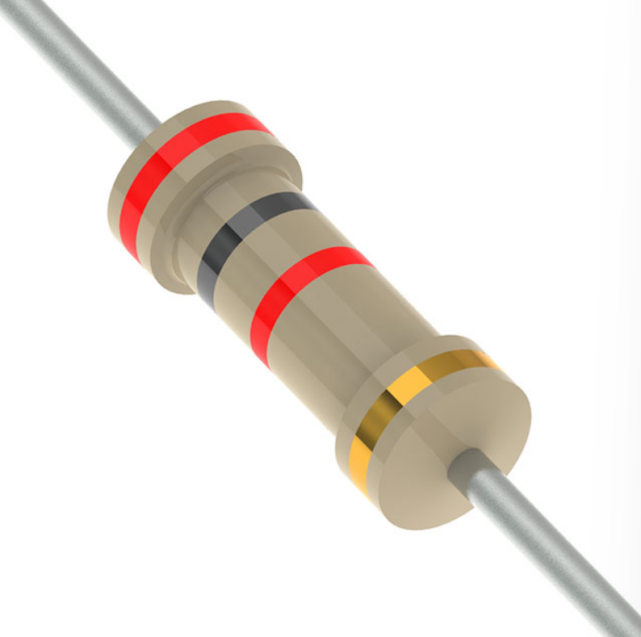

2K resistor Color Code 4 Band:

Reading a 2000 ohm 4-band is straightforward once you understand what each band represents. Here’s how to interpret it step by step:

Identify the bands: Look at the resistor and locate the four colored bands. Usually, the first-band is closest to one end of the resistor. First Band (Red= 2): This represents the first digit of the resistance value. Second Band (Black= 0): This represents the second digit. Third Band (Red): This is the multiplier. Red means multiply by 100. So combine the first two digits (20) and multiply by 100 → 20 × 100 = 2000 ohms. Fourth-Band (Gold): This indicates the tolerance, which tells you how much the actual resistance can vary. Gold = ±5%.

Summary: Red (2), Black (0), Red (×100), Gold (±5%) = 2K ohms ±5%.

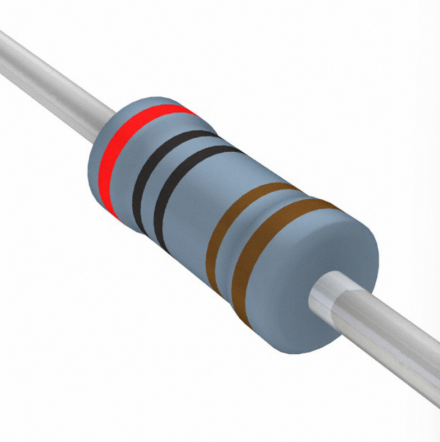

2K Ohm Resistor Color Code 5 Band

Explanation: Combine the first three digits (2-0-0 = 200) and multiply by the multiplier (×10) → 200 × 10 = 2000 ohms (2K). The brown tolerance band indicates ±1%, meaning the actual resistance can range between 1980Ω and 2020Ω.

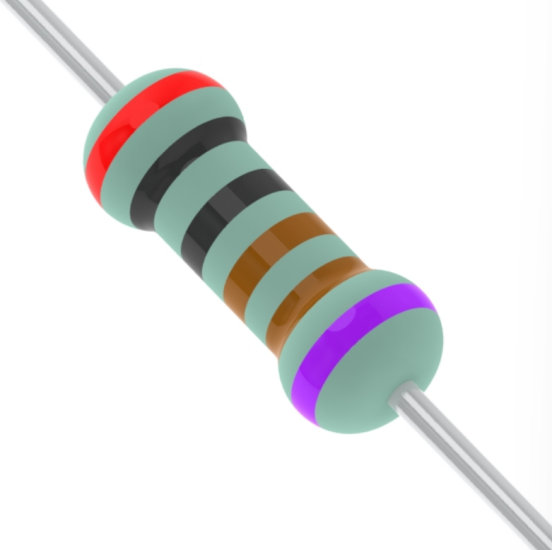

2K Ohm Resistor Color Code 6 Band

Explanation: Combine the first three digits (2-0-0 = 200) and multiply by the multiplier (×10) → 200 × 10 = 2000 ohms (2K).
The brown band shows a tolerance of ±1%, meaning the actual resistance can vary between 1980Ω and 2020Ω. The violet band indicates a temperature coefficient of 5 ppm/°C, which specifies how stable the circuit is when the temperature changes. This 6-band code commonly use for precision resistors where both accuracy and temperature stability are important.

These codes are standardized by the IEC and allow quick visual recognition.

Explanation:

4-Band: Basic general-purpose. Resistance = first two digits × multiplier; last band = tolerance.

5-Band: Higher precision. Resistance = first three digits × multiplier; fifth band = tolerance.

6-Band: Precision resistor with temperature stability. Resistance = first three digits × multiplier; fifth = tolerance; sixth = temperature coefficient.

How to read the values:

4-Band: Resistance = (2-0) × 100 = 2000 Ω, tolerance ±5%

5-Band: Resistance = (2-0-0) × 10 = 2000 ohm, tolerance ±1%

6-Band: Resistance = (2-0-0) × 10 = 2000ohms, tolerance ±1%, temperature coefficient 5 ppm/°C

This table makes it easy to see both the color and the numeric value for each band in all three types of 2K ohm resistors.

Common Applications of Resistor 2K

Widely use in electronic circuits because it provides a moderate resistance value suitable for many applications. Often use in voltage divider circuits to create reference voltages or scale down higher voltages for measurement or control. In LED circuits, a 2K ohm can limit current to protect LEDs from burning out. Also commonly use in transistor biasing, ensuring the correct base current for stable operation.

In digital electronics, 2Kilo ohms serve as pull-up or pull-down resistors, maintaining proper logic levels for microcontrollers or IC inputs. They also use in signal conditioning circuits, where they help set input or output impedances, or form part of filters. Additionally, 2K component find in sensor circuits, controlling current and voltage levels to ensure accurate readings. In power supply and analog circuits, they can help regulate voltage or act as part of timing circuits.

Overall, the 2K resistor is a versatile component, commonly use in consumer electronics, industrial equipment, microcontroller projects, and prototyping boards, making it a standard choice for both beginners and professional engineers.

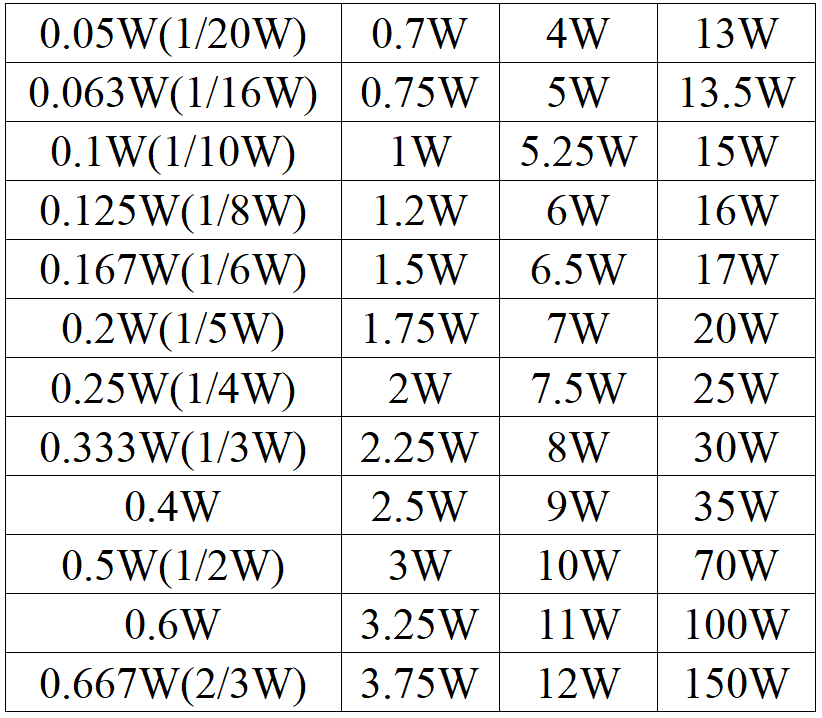

Power Rating and Dissipation for 2K Ohms Resistor

The wattage ratings of a resistor indicates how much heat it can safely dissipate. Exceeding this rating can cause the circuit to burn out.

Common Power Ratings:

1/8 Watt (0.125W): Use in low-power circuits, such as signal processing.

1/4 Watt (0.25W): Standard size for consumer electronics and breadboarding.

1/2 Watt (0.5W): Use when need to handle more current.

1 Watt (1W): Suitable for industrial and higher power applications.

2Watt, 4Watt, 5Watt, 10Watt: These heavy-duty resistors use in motor controls, power supplies, and RF applications.

2K Ohm 1/4 Watt Resistor

0.25watt is a standard low-power resistor commonly use in small electronic circuits where only a small amount of current flows. Ideal for signal processing, LED current limiting, and other low-power applications. Its compact size makes it suitable for tight spaces on PCBs.

2K 2 Watt Resistors

2W can handle higher currents than the 1/4watt version. Often use in power supplies, amplifier circuits, or any medium-power application where require slightly more heat dissipation. The sizes are typically larger and may have ceramic coatings for better thermal performance.

2K 4 Watt Resistor

The 4W is a higher-power component, usually wirewound, design to handle significant heat. Suitable for motor control circuits, power regulation, and load testing applications. Proper heat management is important when using this 4 watt to ensure longevity.

2K Ohm 5W Resistor

A 5W is another high-power option, capable of handling even more current. It finds use in high-current circuits, industrial equipment, and other applications where substantial power dissipation is necessary. Heat sinks or airflow may need to prevent overheating.

10 Watts 2K Resistor

10W is a heavy-duty component, typically large and wirewound. Use in industrial circuits, dummy loads, and high-power applications where substantial current must manage safely. As its size and heat generation, proper mounting and cooling are necessary.

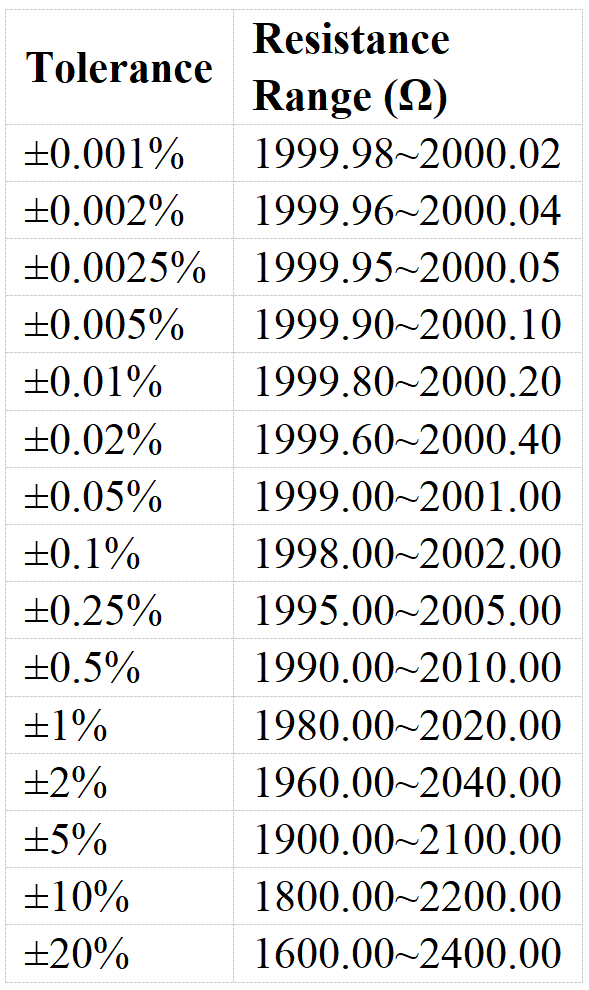

Tolerance and Accuracy of Resistor 2K Ohm

Tolerances specify how close the actual resistance value is to the labeled value. In general, the most commonly use tolerances for 2 KΩ are:

±1% – Widely use in precision circuits where accuracy matters, such as voltage dividers, sensor circuits, and instrumentation.

±5% – Standard tolerance for general-purpose, use in most consumer electronics, LED circuits, and non-critical applications.

±0.1% or ±0.01% – Use only in highly precise or specialized circuits such as calibration equipment, high-precision analog circuits, or reference circuits.

So for everyday electronics, ±5% is the default, and for more precise designs, ±1% is most common.

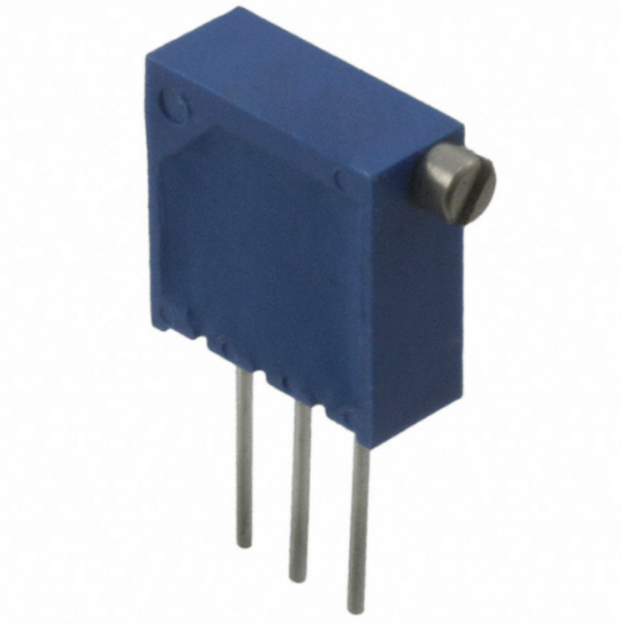

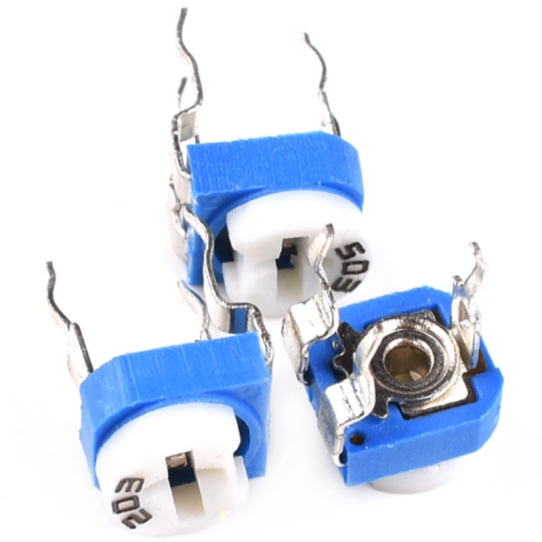

2K Variable Resistor

1. Definition

A 2 KΩ variable resistor is an electronic component with a movable wiper that slides along a resistive track, allowing continuous adjustment of the resistance between two terminals. Commonly use for tuning, adjusting, or controlling electrical circuits, such as volume controls, brightness controls, or sensor calibration.

2. Types

Rotary potentiometers allow resistance adjustment by turning a knob and are common for user controls. Slide potentiometers use a sliding lever to adjust resistance and often use in audio mixers. Trimmer or preset types are small adjustable resistors meant for circuit calibration and usually adjust once during setup. Digital potentiometers are electronically adjustable via microcontrollers and use in precise automated circuits.

3. Applications

2 kΩ variable use for adjusting LED brightness or motor speed, volume control in audio devices, calibrating sensors and measurement circuits, tuning voltage dividers in circuits for precise voltage output, and in circuit prototyping where resistance needs fine adjustment.

4. Specifications

5. How it Works

In two-terminal connection (rheostat mode), current flows through the track and wiper, changing resistance between terminals. In three-terminal connection (potentiometer mode), it acts as a voltage divider, and the output voltage varies as the wiper moves along the resistive track.

Selecting the Right 2K Resistors

When choosing a 2K ohms resistor for your project, keep these factors in mind:

1. Resistance

The components must match the nominal value required by your circuit. For a 2 kΩ, verify the design specifies 2000 Ω. If need high precision, consider tighter tolerances (±1% or better). In applications such as voltage dividers or sensor circuits, even small deviations can affect performance. Can also use variable resistors (potentiometers) if require adjustable resistance.

2. Power Rating

Indicate how much energy the circuit can safely dissipate without overheating. Common ratings for 2 kΩ include 0.125W (1/8 W), 0.25W (1/4W), 0.5W (1/2W), 1W, and higher.

Always choose a circuit with a power rating at least 25–50% higher than the calculated dissipation for safety and longevity.

3. Tolerance

Tolerances determine how close the actual resistance is to the nominal value. Common tolerances for 2 kΩ include ±1%, ±5%. For precision circuits, choose low-tolerance resistors (±0.1%–±1%). For general-purpose applications, ±5% is typically sufficient.

4. Size and Package

2 Kilo ohm come in through-hole (axial, radial) and SMD (surface-mount) packages. Choose the package based on your PCB design, space constraints, and assembly method. Common SMD packages include 0603, 0805, 1206, and 2512. Larger packages usually allow higher power ratings. Verify the physical dimensions fit your design layout.

5. Temperature Coefficient

The temperature coefficient (TCR) measures how resistance changes with temperature, expressed in ppm/°C. Low TCR resistors (e.g., ±50 ppm/°C or lower) prefer for circuits sensitive to temperature variations, such as precision analog circuits or measurement systems. For most standard circuits, TCR is less critical.

6. Cost

Higher precision resistors (tight tolerance, low TCR, high wattage) typically cost more. Standard ±5% tolerances are inexpensive and widely available, whereas ±0.01% precision resistance or specialized SMD types can be significantly more expensive. Balance cost against circuit requirements to optimize performance and budget.

Frequently Asked Questions About 2K Resistor

Is a 2k resistor equivalent to a 2000-ohm resistor?

Yes, a 2k-resistor is equivalent to a 2000-ohm. The prefix "k" stands for kilo, which means 1000, so 2k Ω equals 2 × 1000Ω = 2000Ω. This notation is standard in electronics to simplify writing and reading resistor values, especially for higher resistance levels. Whether labeled as 2k or 2000 Ω, the circuit will have the same electrical characteristics, including voltage drop and current limiting, assuming the same power rating and tolerance. Always check the tolerance and power rating to ensure it matches the application.

How does a 2k resistor differ from a 1k or 10k resistor?

A 2k resistor differs from a 1k or 10k resistor in resistance value, affecting the current flow in a circuit according to Ohm’s Law (V = IR). A 2k ohms allows half the current of a 1k-ohm for the same voltage but five times more current than a 10k ohm. These differences influence voltage dividers, signal attenuation, and biasing circuits. Additionally, the physical size and power rating may vary, especially for high-wattage resistors. Choosing the correct circuit ensures circuit functionality, accuracy, and prevents overheating or damage.

Can a 2k resistor be used in place of a 1k resistor?

Using a 2k ohm in place of a 1k-ohms generally not recommend unless the circuit can tolerate the change. Doubling the resistance halves the current through the resistor, which will affect voltage dividers, biasing, timing circuits, and LED brightness. In precision circuits, replacing 1k with 2k can cause inaccurate operation or malfunction. In non-critical applications, such as current limiting where exact values aren’t crucial, it may work. Always calculate the expected voltage, current, and power dissipation before substituting resistors to ensure the circuit still functions safely.

What is 2k ohm resistor price?

The price of a 2k Ω ohms varies depending on tolerance, power rating, type, and quantity. Standard 1/4 W, ±5% through-hole resistors typically cost only a few cents per piece when bought in bulk. Precision resistors with ±1% or ±0.1% tolerance, higher wattage, or SMD packages may range from $0.001 to $1 or more per piece. Buying in packs or reels often reduces unit cost. Prices will vary by supplier and region. Online electronics retailers and marketplaces often list 2k Ω resistors at affordable rates, making them widely available for hobbyists, prototyping, or production.

Is there 2k ohm resistor alternative?

Yes, alternatives to a 2k Ω include using two resistors in series or parallel to achieve the same resistance. For example, two 1k Ω ohms in series equal 2k Ω. Alternatively, a potentiometer or variable resistor can adjust to 2k Ω. In some circuits, 2 Kilo ohm with slightly different values may work if the tolerance allows it, but need careful calculation. SMD resistors in different packages can also replace through-hole resistors if the PCB design permits. Choosing the alternative depends on circuit tolerance, power rating, and physical space constraints.

What does 2k resistor mean?

A 2k ohm means the resistor has a nominal resistance of 2 kilo-ohms, or 2000 Ω. The “k” stands for kilo, representing a factor of 1000. Use to limit current, divide voltage, or provide biasing in electronic circuits. The resistor’s actual value may slightly vary depending on its tolerance, such as ±1%, ±5%, or other specified ranges. For example, a 2k Ω ±5% can actually measure between 1900Ω and 2100Ω. Its power rating determines how much energy it can safely dissipate without overheating.

What is the color code for a 2K ohm resistor?

The standard colour coding for a 2k Ω depends on the number of bands. A 4-band colors uses red-black-red-gold, where red represents 2, black is 0, the second red is a multiplier of 100, and gold indicates ±5% tolerance. For 5-band resistors, it is red-black-black-brown-brown, representing 2-0-0 × 10¹, with ±1% tolerance. For 6 colour bands, the sixth band indicates the temperature coefficient. The colour code visually communicates the resistance, tolerance, and sometimes temperature coefficient, allowing easy identification without measuring tools.

How many ohms is a 2K resistor?

A 2k-ohm is 2000 ohms. The “k” in 2k stands for kilo, meaning 1000. Therefore, 2 × 1000Ω equals 2000Ω. This value is the nominal resistance, which may vary slightly depending on the resistor’s tolerance. The resistor limits current in a circuit according to Ohm’s Law (V = IR) and can use in voltage dividers, current-limiting applications, or signal conditioning circuits. A common resistance value in both analog and digital electronics and is widely available in through-hole and SMD packages.

✅ With this guide, you now know how to identify, use, and select a 2K resistor for any electronic application. The 2 kΩ is a common electronic component with a nominal resistance of 2000 Ω, use to control current, divide voltage, and provide biasing in circuits. It comes in various types, including through-hole, SMD, fixed, and variable resistors, and offers different power ratings and tolerances to suit precision or general-purpose applications. The choice of 2 kΩ resistor depends on resistance accuracy, power handling, physical size, package type, temperature coefficient, and cost. Its widespread availability, versatility, and standardization make it an essential component for hobbyists, engineers, and professionals alike.
