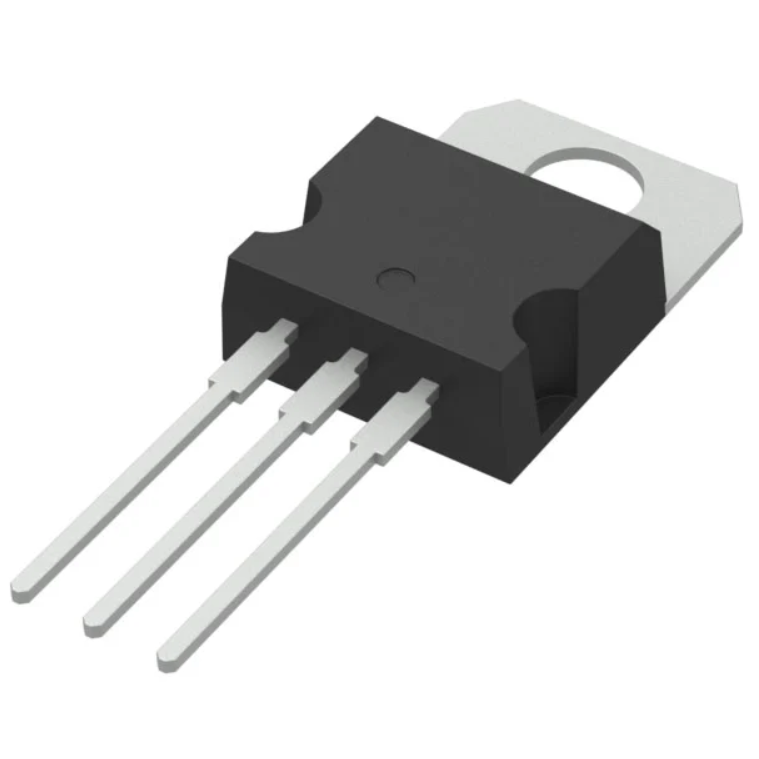

L7812CV Voltage Regulator – Complete Guide

The L7812CV is a 12V fixed linear voltage regulator from the L78 series, designed to provide a stable and reliable +12V output from a higher DC input voltage. Commonly use in power supplies, embedded systems, and general electronic circuits that require a clean regulated voltage.

This device integrates key protection features such as thermal shutdown, current limiting, and safe operating area protection, making it highly reliable in practical applications. With proper heat sinking, it can supply up to 1A or more of output current.

In this post, we will cover its pinout, specifications, equivalents, applications, and design considerations.

1. What is L7812CV?

2. L7812CV Pinout

3. L7812CV Equivalent and Alternative

4. Specifications

5. Applications

6. 7812 Voltage Regulator Features

7. Design Considerations for L7812 Voltage Regulator

8. Evaluating L7812CV Quality

9. Frequently Asked Questions [FAQ]

What is L7812CV?

The L7812 CV is a three-terminal fixed positive voltage regulator that belongs to the well-known L78 series. Designed to provide a stable +12V DC output from a higher unregulated input voltage, making it widely used in power supply and electronic control applications.

The L78 series is available in multiple package types such as TO-220, TO-220FP, D²PAK, and DPAK, and includes several fixed output voltage options. This flexibility makes the series suitable for a broad range of circuit designs where require stable voltage regulation.

One of the key advantages of the component is its ability to provide local on-board regulation, which helps eliminate issues related to long-distance power distribution and voltage drops in complex systems. Each device in the series includes built-in protection features such as internal current limiting, thermal shutdown, and safe-area protection, ensuring reliable operation even under fault conditions. These safety mechanisms make the regulator highly robust in practical use.

With proper heat sinking, the L7812 can deliver more than 1A of output current, making it suitable for medium-power applications. Although it primarily design as a fixed voltage regulator, can also use it with external components to achieve adjustable voltage or current configurations, increasing its versatility in electronic circuit design.

L7812CV Pinout

The 7812 comes in a standard TO-220-3 package, which is simple to use in power supply circuits. It has three pins, each serving a specific function for voltage regulation.

PIN 1 – INPUT: This pin receives the unregulated DC voltage from the power source. The input voltage must be higher than 12V to ensure proper regulation at the output.

PIN 2 – GROUND: Connect this pin to the system ground (0V reference). It acts as the common reference point for both input and output voltages.

PIN 3 – OUTPUT: This pin provides the regulated +12V DC output. It supplies stable voltage to the connected load or circuit.

L7812CV CAD Model

Symbol

Footprint

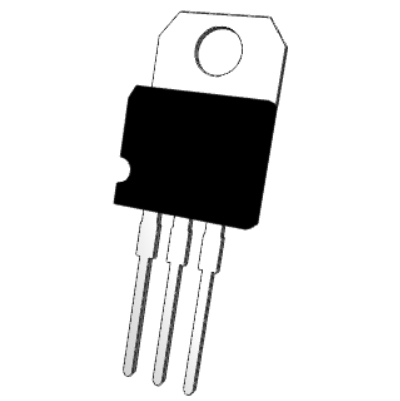

3D Model

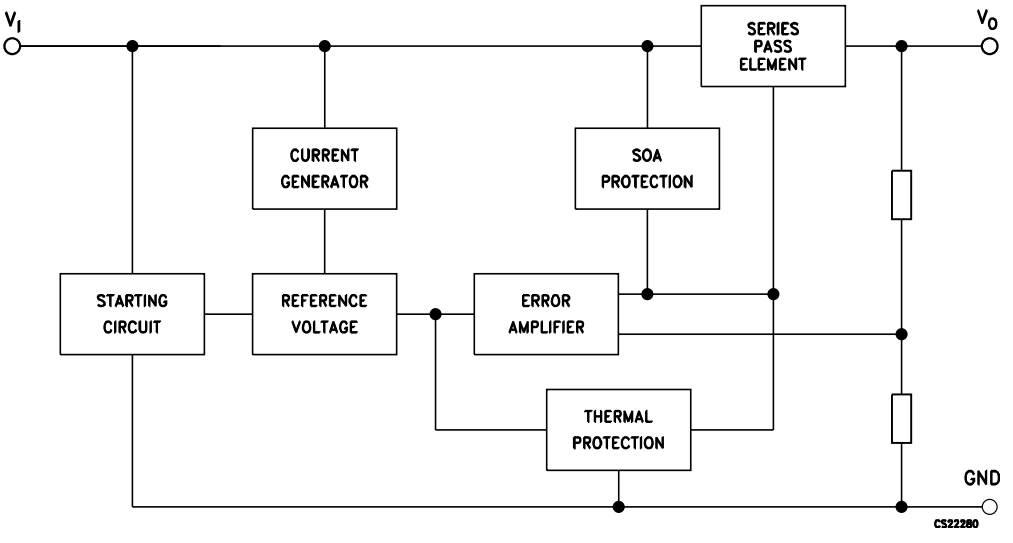

Block Diagram

L7812CV Equivalent and Alternative

The L7812 CV has several compatible alternatives from different manufacturers. These equivalents provide the same or similar 12V fixed voltage regulation, but may differ in current rating, package type, or thermal performance.

BA17812T (ROHM)

The BA17812T is a 12V linear regulator from ROHM. It supports up to 1A output current and comes in a TO-220FP package. It is a good replacement when require low heat dissipation and insulated packaging.

LM7812CT (Texas Instruments)

The LM7812CT is a standard 12V 1A linear regulator in a TO-220-3 package. Widely used and fully compatible with L7812 CV in most power supply designs.

UA7812CKCS (Rochester Electronics)

The UA7812CKCS is a higher current version capable of up to 1.5A output. It is suitable for applications that require slightly more load capacity than the standard L 7812CV.

MC78M12ACTG (onsemi)

The MC78M12ACTG is a medium-current 12V regulator rated for 500mA. Often use in low-power circuits where not require full 1A output.

MC78M12CTG (ONSEMI)

The MC78M12CTG is another 12V 500mA regulator from onsemi. It offers similar performance to MC78M12ACTG and is suitable for compact, low-power applications.

These alternatives allow designers to choose the best regulator based on current requirement, thermal design, and package preference.

L7812CV Specifications

Table

L7812CV Package

The L7812CV is in a TO-220-3 through-hole package, which widely use in power electronics because its excellent heat dissipation capability and easy mounting on heatsinks. This package type allows the regulator to handle higher current levels more efficiently when apply proper thermal management. The TO-220 package also makes it suitable for prototyping and general-purpose PCB designs.

L7812CV Manufacturer

The primary manufacturer of L7812CV is STMicroelectronics. ST is a well-known semiconductor company that produces a wide range of voltage regulators, microcontrollers, and power management ICs. Their L78 series regulators are widely recognized for reliability, stability, and strong protection features, making them a popular choice in both industrial and consumer electronics applications.

L7812CV Applications

Power Supply Systems

Widely used in regulated DC power supply circuits, where a stable 12V output is required from higher unregulated input sources. Commonly found in bench power supplies, adapters, and embedded system power stages.

Microcontroller and Embedded Systems

In microcontroller-based projects, the L7812 CV provides a clean and stable 12V rail for sensors, modules, and supporting circuitry. It helps ensure reliable operation of digital systems by preventing voltage fluctuations.

Audio Amplifier Circuits

Often use in audio amplifier power sections to supply pre-amplifier stages or driver circuits that require a stable 12V supply, improving sound stability and reducing noise.

Industrial Control Equipment

In industrial electronics, the L 7812CV is used in control boards, relay drivers, and automation systems where consistent voltage regulation is critical for safe and reliable operation.

Communication Devices

Also use the regulator in communication modules and RF circuits, providing stable voltage to prevent signal distortion caused by power instability.

LED and General Electronics

In LED driver circuits and general-purpose electronics, the 7812 component ensures consistent brightness and stable operation by maintaining a fixed 12V output under varying load conditions.

7812 Voltage Regulator Features

Output Current Capability

The 7812 series regulator supports an output current of up to 1.5 A, making it suitable for a wide range of low to medium power electronic applications when proper heat sinking is used.

Output Voltage Options

The 7812 family is part of the L78 series, which offers multiple fixed output voltages including 5V, 6V, 8V, 8.5V, 9V, 12V, 15V, 18V, and 24V, allowing designers to choose the appropriate regulated voltage for different circuit requirements.

Thermal Overload Protection

The regulator includes built-in thermal shutdown protection, which automatically disables the device when the internal temperature exceeds safe limits, preventing damage under excessive load or poor cooling conditions.

Short Circuit Protection

It features short circuit protection, which limits output current during fault conditions to protect both the regulator and the connected load from damage.

Safe Operating Area (SOA) Protection

The device includes output transition SOA protection, ensuring safe operation of the internal pass transistor under varying voltage and current conditions.

Output Voltage Accuracy

The A-grade versions of the 7812 regulator provide up to 2% output voltage tolerance, ensuring better precision and stability in sensitive electronic circuits.

Extended Temperature Operation

Design the regulator for reliable operation across an extended temperature range, making it suitable for both consumer and industrial environments.

Design Considerations for L7812 Voltage Regulator

Thermal Protection Behavior

The L7812 CV is designed with built-in thermal shutdown protection. When the internal temperature rises beyond a safe level because excessive load or poor heat dissipation, the regulator automatically turns off to prevent damage. This makes it reliable in overload conditions, but proper heat sinking is still essential for continuous operation.

Current Limiting and Safety

The device includes internal short-circuit current limiting, which restricts the maximum output current during fault conditions. In addition, safe operating area (SOA) control reduces stress on the internal pass transistor when there is a large voltage difference between input and output, improving long-term reliability.

Input Capacitor Requirement

For stable operation, especially in real-world circuits, highly recommend an input bypass capacitor. This is more important when place the regulator far from the power source or when the input supply has long wiring paths. A capacitor helps reduce voltage spikes and improves transient response.

Capacitor Selection and Placement

A low-impedance capacitor such as 0.33 µF or higher (tantalum, ceramic, or film type) should be used at the input. Should place it as close as possible to the regulator pins with very short leads to minimize noise and inductance effects.

PCB Layout Considerations

Good PCB design practices are important for stable performance. Shoule avoid ground loops, and trace resistance should minimize. Since the L 7812CV does not include a separate sense pin, voltage drop across long traces can affect regulation accuracy.

Adjustable Voltage Extension

Although primarily a fixed 12V regulator, can add external components such as an operational amplifier to modify the output voltage. However, the minimum achievable output is typically about 2V higher than the nominal regulator value because dropout limitations.

Evaluating L7812CV Quality

Can evaluate the quality of the L7812CV through a combination of visual inspection, electrical testing, and thermal behavior analysis. Since it is a linear voltage regulator with built-in protection features, a properly functioning device should show stable and predictable behavior under normal operating conditions.

Visual Inspection

Start by examining the physical condition of the component. Check for damaged pins, burn marks, cracked casing, or poor solder joints. Any sign of oxidation, overheating, or package deformation may indicate internal failure or counterfeit parts.

Output Voltage Test

Apply a suitable DC input (typically 14V–24V) and measure the output using a multimeter. A healthy L7812CV should provide a stable +12V output with minimal variation even when the load changes slightly. Significant deviation or unstable readings may indicate a faulty regulator.

Load Regulation Test

Connect a variable load to the output and observe voltage stability. The regulator should maintain close to 12V as load increases. If the output voltage drops sharply under normal load, it may suggest degraded internal pass transistor performance.

Thermal Performance Check

During operation, the device will naturally generate heat, but it should remain within a safe temperature range when properly heatsinked. Excessive heating at low load or immediate thermal shutdown indicates internal damage or poor efficiency.

Dropout and Input Check

Ensure the input voltage is sufficiently higher than 12V (typically above 14V). If the input is too low, the regulator will fail to maintain proper output, which may mistake for a defective device.

Final Quality Conclusion

A good L7812CV should provide stable voltage regulation, respond correctly under varying load conditions, and operate without abnormal heating. Any instability, excessive heat, or inconsistent output is a strong indicator of a defective or low-quality unit.

L7812CV Datasheet PDF

Always refer to the official STMicroelectronics data sheet for more information.

Frequently Asked Questions [FAQ]

What is the difference between fixed voltage regulator and adjustable regulator?

A fixed voltage regulator provides a constant preset output voltage such as 12V without external adjustment. An adjustable regulator allows users to set the output voltage using external resistors or components. Fixed types like L7812CV are simpler, while adjustable regulators offer more flexibility for variable power supply designs.

How to wire the L7812CV regulator IC?

Connect Pin 1 to unregulated DC input (above 14V), Pin 2 to ground, and Pin 3 as +12V output. Add a 0.33µF capacitor at input and 0.1µF at output for stability. Require proper heat sinking for load currents above 500mA to ensure reliable operation.

What is the function of L7812CV?

The L7812C V provides a stable +12V DC output from a higher input voltage. It regulates voltage fluctuations and protects circuits using internal current limiting, thermal shutdown, and safe operating area protection. Widely used for powering electronic modules requiring a clean and reliable 12V supply.

What is a 7812 voltage regulator used for?

Use a 7812 voltage regulator in power supply circuits to generate a stable 12V DC output. Commonly found in embedded systems, audio equipment, industrial controllers, and communication devices. It ensures consistent voltage supply for sensitive electronic components and prevents damage caused by voltage variations.

What is the voltage regulator using 7812?

A voltage regulator using 7812 refers to a linear regulator circuit based on the 78xx series that outputs a fixed 12V DC. The L7812CV is a common example. It steps down higher DC input voltage and maintains stable output for electronic circuits requiring regulated power.

What is the output of A 7812 voltage regulator?

The output of a 7812 voltage regulator is a regulated +12V DC supply. It maintains this voltage as long as the input is sufficiently higher than 12V (typically above 14V). The L7812CV ensures stable output even when input voltage or load conditions vary.

What are the alternatives to A 7812 regulator?

Alternatives include LM7812, UA7812, BA17812T, MC78M12ACTG, and MC78M12CTG. These devices provide similar 12V regulation with different current ratings and packages. The L7812CV is interchangeable with many of these depending on load current and thermal requirements.

What is the difference between 7812 and 7912 voltage regulator?

The 7812 provides a regulated +12V positive output, while the 7912 provides a -12V negative output. They are complementary regulators often used together in dual power supply systems. The L7812CV is for positive rails, whereas 7912 is used for negative voltage rails.

What is the minimum voltage for 7812?

The minimum input voltage for a 7812 regulator is typically around 14V to ensure proper regulation. This is because a dropout voltage of about 2V above the 12V output. The L7812CV requires sufficient headroom to maintain stable 12V output under load conditions.

Conclusion

The L7812CV is a simple, reliable, and widely used 12V linear regulator that remains a core component in power supply design. Despite being an older linear regulator design, it is still valued for its simplicity, robustness, and ease of use in low-to-medium power applications.
