XL4015 DC-DC Step Down Module 5A Buck Converter

The XL4015 DC-DC step down module is a high-power adjustable buck converter designed to efficiently reduce higher DC voltages to lower, stable output voltages. Thanks to its wide input voltage range, high conversion efficiency of up to 96%, and output current capability of 5A, the XL 4015 widely use in battery-powered projects, automotive electronics, LED drivers, industrial equipment, and DIY power supplies.

Compared with traditional linear regulators, the XL4015 offers significantly higher efficiency and lower heat generation, making it an excellent solution for applications requiring reliable voltage regulation.

In this guide, we'll cover everything you need to know about the XL 4015 module, including its pinout, specifications, applications, alternatives, and frequently asked questions.

1. What is the XL4015 DC-DC Step Down Module?

2. Pinout

3. Features and Specifications

4. Alternative

5. Applications

6. LM2596 vs XL4015

7. XL4015 Adjustable DC DC Buck Converter with Display

8. Frequently Asked Questions [FAQ]

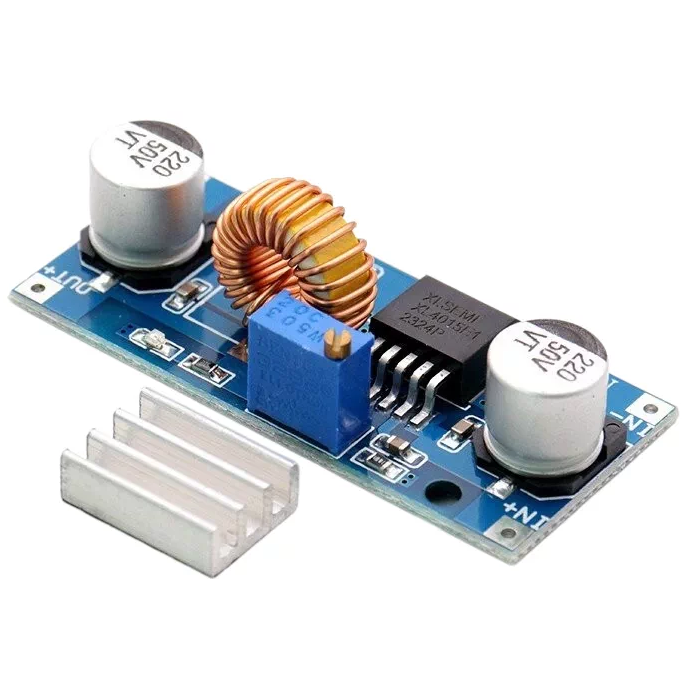

What is the XL4015 DC-DC Step Down Module?

The XL 4015 module is an adjustable buck (step-down) voltage converter that efficiently reduces a higher DC input voltage to a lower, stable output voltage. It supports an input voltage range of 4V to 38V and provides an adjustable output from 1.25V to 36V using an onboard precision potentiometer.

The module delivers up to 5A output current with a maximum power of 75W and achieves conversion efficiency of up to 96%. It also features 8A current-limited short-circuit protection and over-temperature protection, which automatically shuts down the output if the module overheats. These features make the XL4015 ideal for battery-powered devices, DIY power supplies, automotive electronics, and industrial voltage conversion applications.

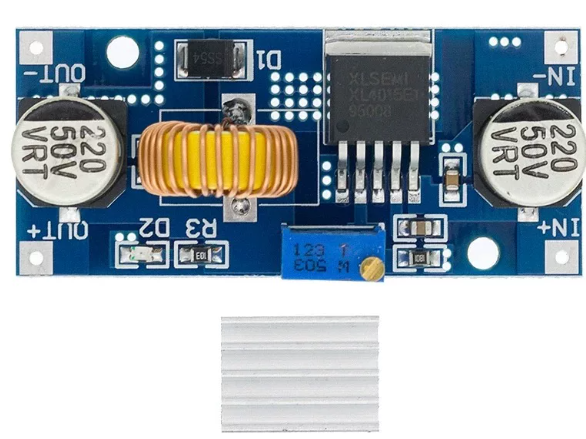

XL4015 Module Pinout

XL 4015 Pin Description

Input Terminals

The IN+ and IN- terminals connect to the external DC power source, such as batteries, adapters, or power supplies.

Output Terminals

The regulated voltage appears on the OUT+ and OUT- terminals and can adjust using the onboard potentiometer.

XL4015 Module Dimensions

· Length: 54 mm

· Width: 23 mm

· Height: 18 mm

The board includes two 3 mm mounting holes for convenient installation.

XL4015 Buck Converter Features and Specifications

Features

· Non-isolated Buck Converter

· Adjustable output voltage

· Up to 96% conversion efficiency

· Continuous 5A output capability

· Peak output power of 75W

· Built-in short circuit protection

· Thermal shutdown protection

· LED power indicator

· Compact PCB design

· Easy voltage adjustment

· Stable switching performance

· Low output ripple

Specifications

XL4015 Step Down Charge Board Alternative

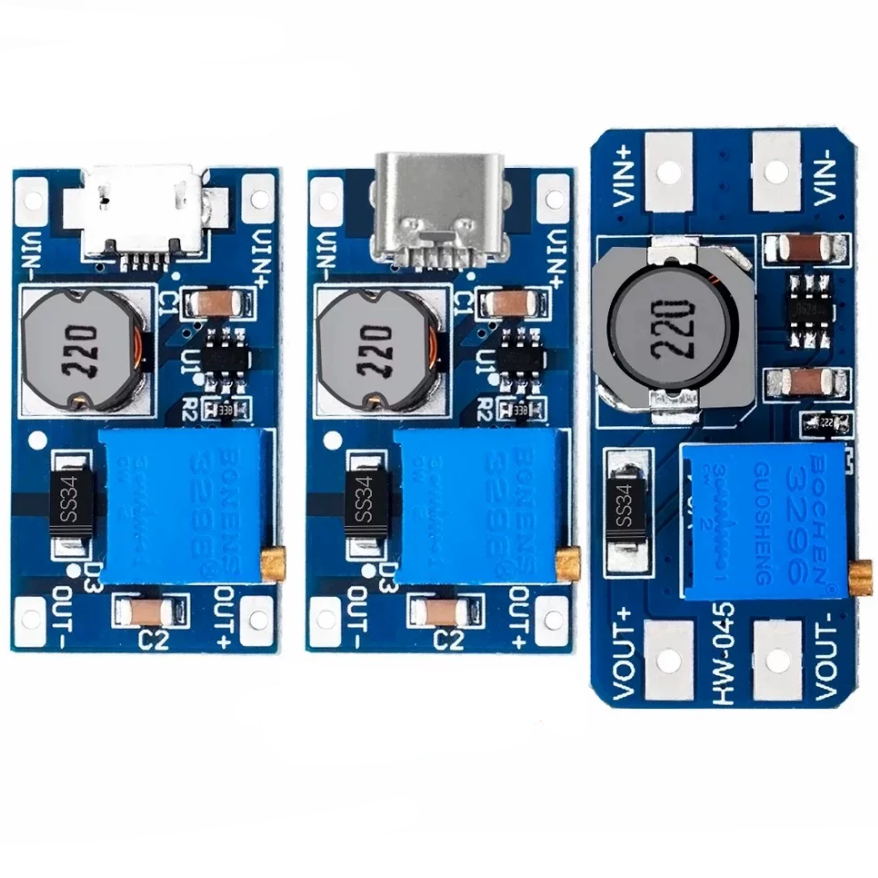

MT3608 2A DC-DC Converter Module

Although the MT3608 is primarily known as a compact boost converter,  often consider alongside small DC-DC modules for portable projects. It features:

· Compact PCB design

· Micro USB power input support

· Adjustable output voltage

· High conversion efficiency

· Suitable for portable electronics

· Easy installation in space-constrained projects

Best for:

· Portable DIY devices

· Battery-powered electronics

· USB-powered voltage conversion

LM2596 DC-DC Step Down Module

The LM2596 is another popular adjustable buck converter.

Advantages include:

· Up to 3A output current

· Maximum efficiency around 92%

· Low heat generation

· Low cost

· Reliable long-term operation

· Suitable for medium-power applications

Recommend to use additional heat sinks when output power exceeds 10W.

Applications of XL4015 Power Module Board

Battery-Powered Devices

Widely use in battery-powered systems to provide a stable output voltage for portable electronics, battery packs, and rechargeable power supplies while maintaining high conversion efficiency.

DIY Adjustable Power Supplies

With its adjustable output voltage and high current capability, the XL 4015 is ideal for building DIY bench power supplies and variable voltage regulators for electronics testing and development.

Automotive Electronics

Commonly used in vehicle applications, such as converting 24V to 12V for car laptops, dash cameras, LED lighting, GPS units, and other automotive accessories.

Industrial Equipment

The XL 4015 is suitable for industrial power systems that require reliable DC voltage conversion, helping power control circuits, sensors, communication modules, and embedded devices.

DC Voltage Conversion

The module is widely used for common voltage conversion tasks, including 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, and 36V to 24V, making it a versatile solution for various electronic and industrial applications.

LM2596 vs XL4015

Compare Table

Which One Should You Choose?

Choose the LM2596 for low-cost, low-power projects requiring up to 3A output. Choose the XL4015 when your application needs higher output current, greater efficiency, and more output power. The XL4015 is the better option for demanding loads such as motors, LED arrays, battery charging, and industrial electronics.

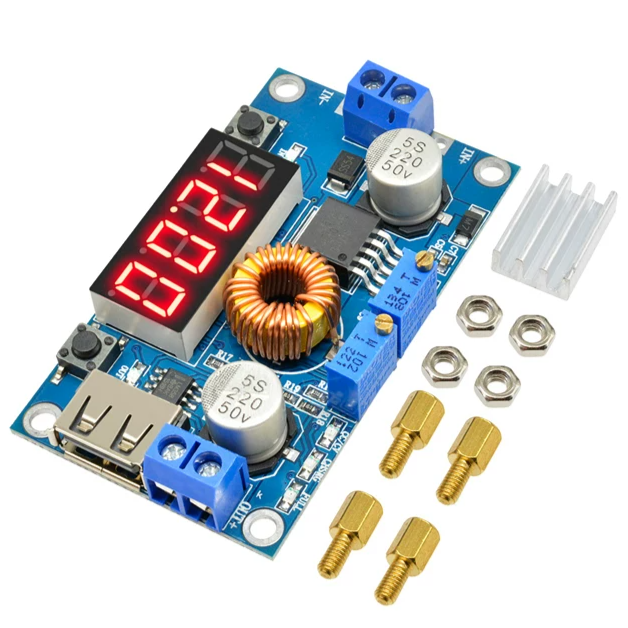

XL4015 Adjustable DC DC Buck Converter with Display

XL4015 modules include an integrated digital voltmeter, making voltage adjustment much easier.

Main Features

· Built-in LED power indicator

· Large aluminum heat sink

· Digital voltage display

· Self-calibrating voltmeter

· Voltage measurement accuracy of ±0.05V

· Measures both input and output voltage

· One-button display switching

· Memory function after power loss

· Display on/off function

· Screw terminal connectors

· Solder pads for permanent installation

· Adjustable output voltage

· Up to 5A output current

· Maximum output power of 75W

· Up to 96% conversion efficiency

· Built-in short circuit protection

· Thermal shutdown protection

Specifications

Typical Applications

The display version is ideal for:

· Bench power supplies

· Battery charging systems

· Automotive voltage conversion

· Industrial equipment

· DIY electronics

· Laboratory testing

· Educational projects

XL4015 PDF Datasheet

The data sheet provides detailed electrical characteristics, application circuits, PCB layout recommendations, thermal considerations, and operating limits. Recommended reviewing the datasheet before designing a high-power application to ensure reliable operation and proper component selection.

Frequently Asked Questions [FAQ]

Is XL4015 reliable?

Yes. Consider the XL 4015 a reliable buck converter when operated within its specifications. Built-in thermal shutdown and short-circuit protection improve safety, while using adequate cooling for high-power applications ensures stable, long-term performance.

What is the difference between XL4005 and XL4015?

The XL 4015 supports higher output current and power than the XL4005. It can deliver up to 5A output with improved efficiency, making it better suited for demanding applications such as battery charging, LED drivers, and industrial power supplies.

Is XL4015 a step-up or step-down converter?

The XL 4015 is a step-down (buck) DC-DC converter. It only reduces input voltage to a lower adjustable output voltage. It cannot increase voltage like a boost converter.

What is the maximum input current for XL4015?

The module accepts input voltages from 4V to 38V. The actual input current depends on the load power, output voltage, and efficiency. At full load, ensure the power source can safely supply the required current.

What is the difference between LM2596 and XL4015?

The XL 4015 offers higher output current, greater output power, higher switching frequency, and better efficiency than the LM2596. While the LM2596 is suitable for lighter loads up to 3A, the XL 4015 is better for applications requiring up to 5A.

What is the module of XL4015 CC and CV?

An XL4015 CC/CV module provides both Constant Current (CC) and Constant Voltage (CV) regulation. It is commonly used for charging lithium batteries, LED driving, and powering devices that require current limiting.

What is the switching frequency of XL4015?

The XL 4015 operates at a switching frequency of 180 kHz, allowing the use of smaller inductors and capacitors while maintaining high conversion efficiency and stable output performance.

What is the pinout of the XL4015?

The XL 4015 module has four main terminals: IN+ (positive input), IN- (ground input), OUT+ (regulated positive output), and OUT- (output ground). A multi-turn potentiometer is used to adjust the output voltage.

What is XL4015 5a buck converter?

The XL4015 5A buck converter is an adjustable DC-DC power module capable of delivering up to 5A output current with a maximum output power of 75W. It efficiently converts higher DC input voltages into stable, lower output voltages.

How do you adjust the output voltage of XL4015?

Connect the input power supply, monitor the output with a multimeter, and rotate the onboard precision potentiometer until the desired voltage is reached. Always verify the output voltage before connecting sensitive electronic devices.

Conclusion

The XL4015 DC-DC step down Module is one of the best choices for efficiently converting higher DC voltages to lower, stable outputs. With its adjustable voltage range of 1.25V to 36V, support for up to 5A output current, 75W maximum output power, and 96% efficiency, it delivers excellent performance for both hobby and professional electronics projects. Whether you're building an adjustable power supply, powering microcontrollers, charging batteries, or converting automotive voltages, the XL 4015 offers a dependable, cost-effective, and easy-to-use solution.
