15BJ6-5CAH

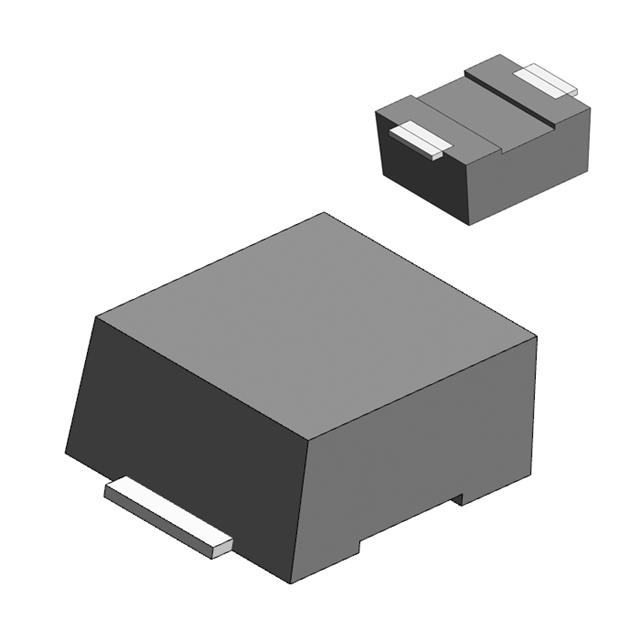

lmages are for reference only.15BJ6-5CAH
TVS DIODE 6.5VWM BI
DatasheetDO-221AA, SMB Flat Leads
36,283 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12V Clamp 134A Ipp Tvs Diode Surface Mount SMBF
15BJ6-5CAH
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Eaton - Electronics Division |
| Series | 15BJxxH |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 6.5V |
| Voltage - Breakdown (Min) | 7.78V |
| Voltage - Clamping (Max) @ Ipp | 12V |
| Current - Peak Pulse (10/1000µs) | 134A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-221AA, SMB Flat Leads |
| Supplier Device Package | SMBF |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
|

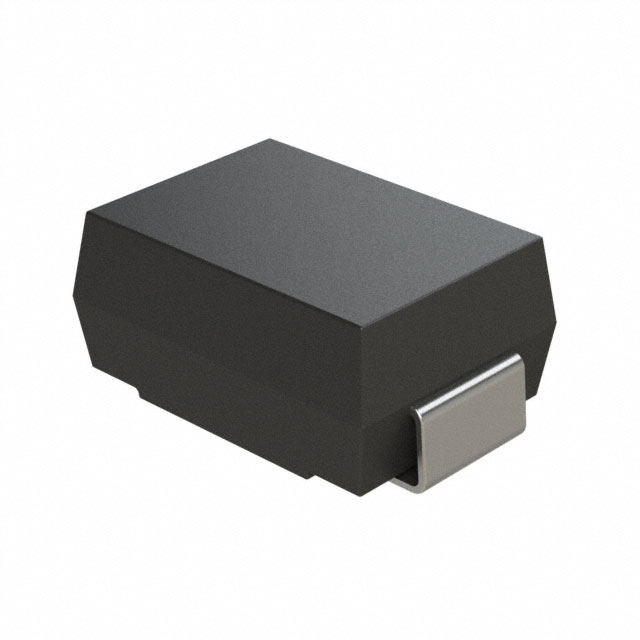

| Part Number | 15BJ6-5A | 15BJ6-5AH | 15BJ6-5CA | 15BJ100A |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | TVS DIODE 6.5VWM 11.2VC SMBF | TVS DIODE 6.5VWM UNI | TVS DIODE 6.5VWM 11.2VC SMBF | TVS DIODE 100VWM 162VC SMBF |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
