15BJ60CA
lmages are for reference only.15BJ60CA
TVS DIODE 60VWM 96.8VC SMBF
DatasheetDO-221AA, SMB Flat Leads
56,642 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
96.8V Clamp 15.5A Ipp Tvs Diode Surface Mount SMBF
15BJ60CA
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Eaton - Electronics Division |
| Series | 15BJ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 60V |
| Voltage - Breakdown (Min) | 66.7V |
| Voltage - Clamping (Max) @ Ipp | 96.8V |
| Current - Peak Pulse (10/1000µs) | 15.5A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-221AA, SMB Flat Leads |
| Supplier Device Package | SMBF |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

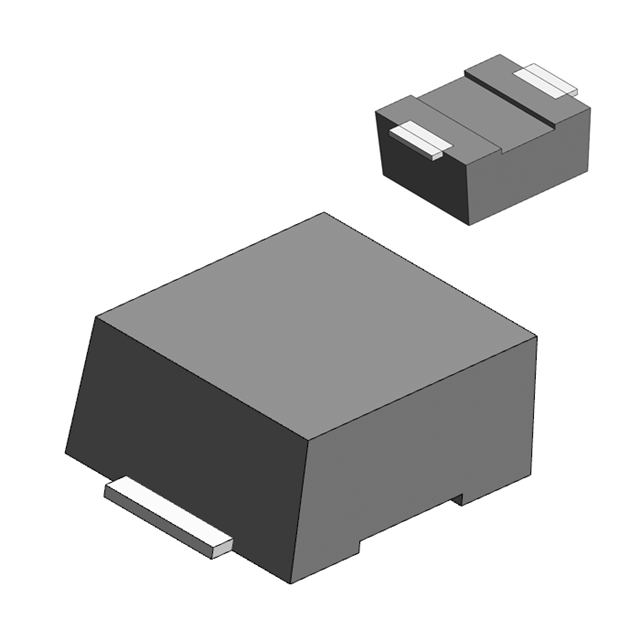

| Part Number | 15BJ60CAH | 15BJ6-0A | 15BJ6-0AH | 15BJ6-0CA |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | RoHS Compliant |

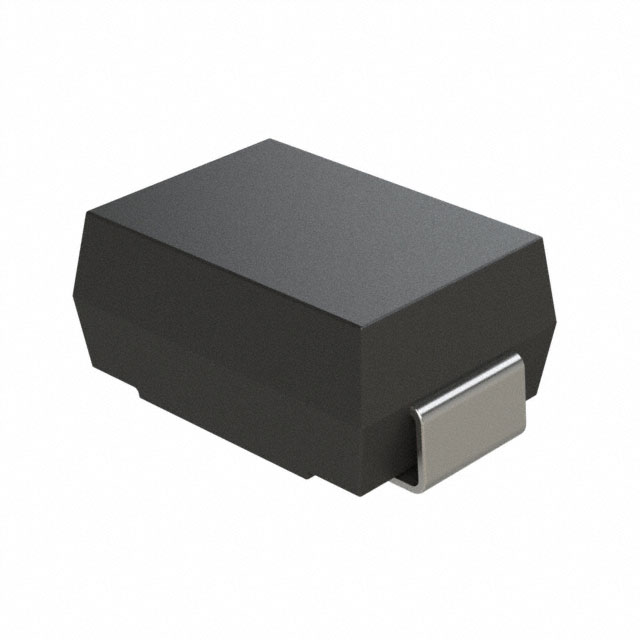

| Description | TVS DIODE 60VWM BI | TVS DIODE 6VWM 10.3VC SMBF | TVS DIODE 6VWM UNI | TVS DIODE 66VWM 10.3VC SMBF |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
