Product CatalogPart Number
160563J630G-F
Manufacturer
Cornell Dubilier KnowlesDescription
CAP FILM 0.056UF 5% 630VDC RAD
Datasheet
DatasheetPackage
Radial
In Stock
66,141 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
160563J630G-F
160563J630G-F
lmages are for reference only.Payment Methods
Delivery Services
0.056 µF Film Capacitor 220V 630V Polyester, Metallized Radial
Quick Inquiry
160563J630G-F
Specifications
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | 160 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.056 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 220V |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polyester, Metallized |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.709" L x 0.236" W (18.00mm x 6.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

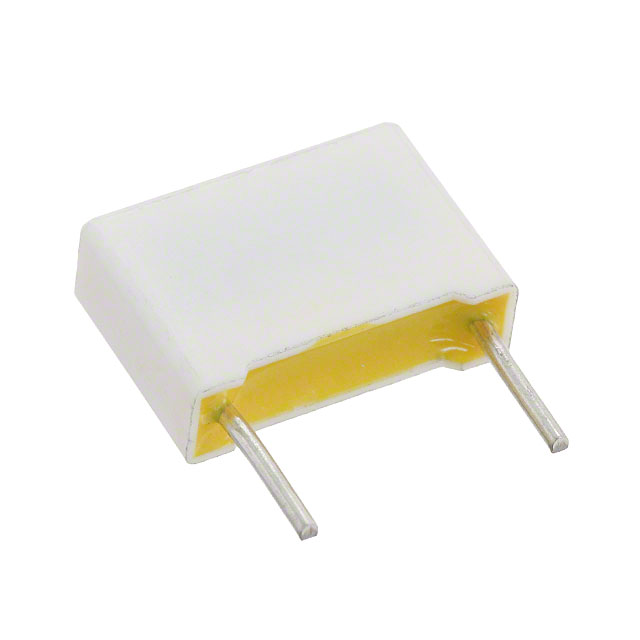

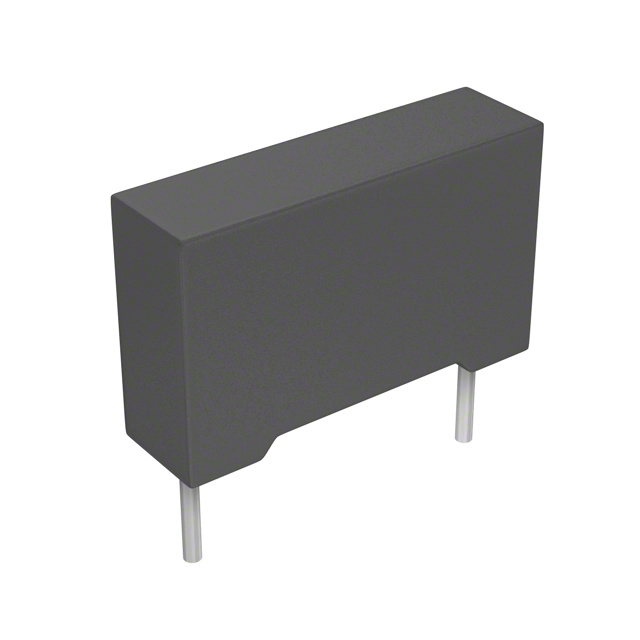

| Part Number | 160563J250C-F | 160563J400F-F | 160103J1000F-F | 160103J630C-F |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 0.056UF 5% 250VDC RAD | CAP FILM 0.056UF 5% 400VDC RAD | CAP FILM 10000PF 5% 1KVDC RADIAL | CAP FILM 10000PF 5% 630VDC RAD |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Bulk | Bulk | Bulk |
