160564J100G-F

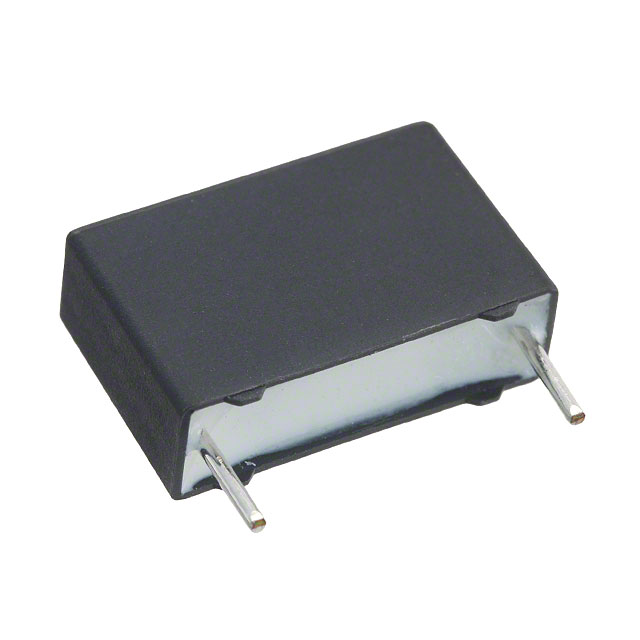

lmages are for reference only.160564J100G-F
CAP FILM 0.56UF 5% 100VDC RADIAL
DatasheetRadial
76,968 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.56 µF Film Capacitor 63V 100V Polyester, Metallized Radial
160564J100G-F
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | 160 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.56 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 63V |
| Voltage Rating - DC | 100V |
| Dielectric Material | Polyester, Metallized |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.709" L x 0.236" W (18.00mm x 6.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

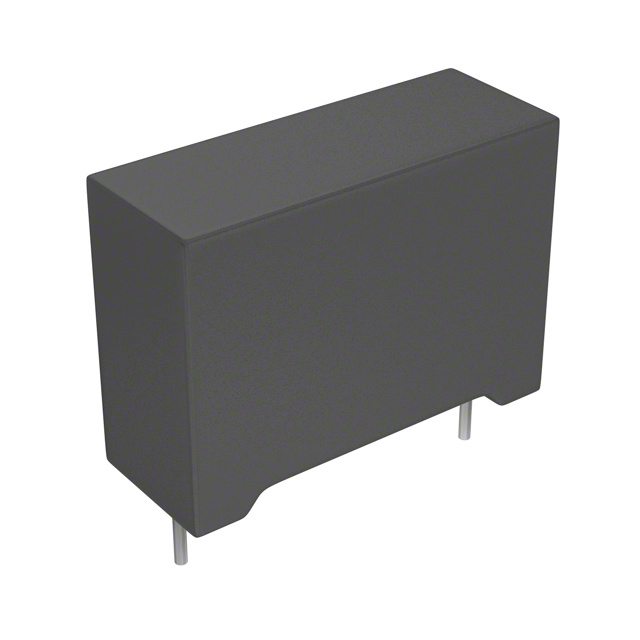

| Part Number | 160564J250I-F | 160564J250M-F | 160564J400O-F | 160564J63D-F |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 0.56UF 5% 250VDC RADIAL | CAP FILM 0.56UF 5% 250VDC RADIAL | CAP FILM 0.56UF 5% 400VDC RADIAL | CAP FILM 0.56UF 5% 63VDC RADIAL |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Bulk | Bulk | Bulk |
