29-111-11
lmages are for reference only.29-111-11
RELAY GEN PURPOSE SPST 120A 12V
Datasheet-
57,924 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (DM) (1 Form X) 12VDC Coil Chassis Mount
29-111-11
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Deutsch Connectors |
| Series | 29, KISSLING |
| Packaging | Box |
| RoHS Status | |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Contact Rating (Current) | 120 A |
| Switching Voltage | - |
| Load - Max Switching | 7W |
| Coil Current | 600 mA |
| Coil Type | Non Latching |
| Features | Diode |
| Termination Style | Screw Terminal |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 2 VDC |
| Operate Time | 35 ms |
| Release Time | 15 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 20 Ohms |
| Base Product Number | 29-111 |
| Product Attribute |  |
 |
|
|

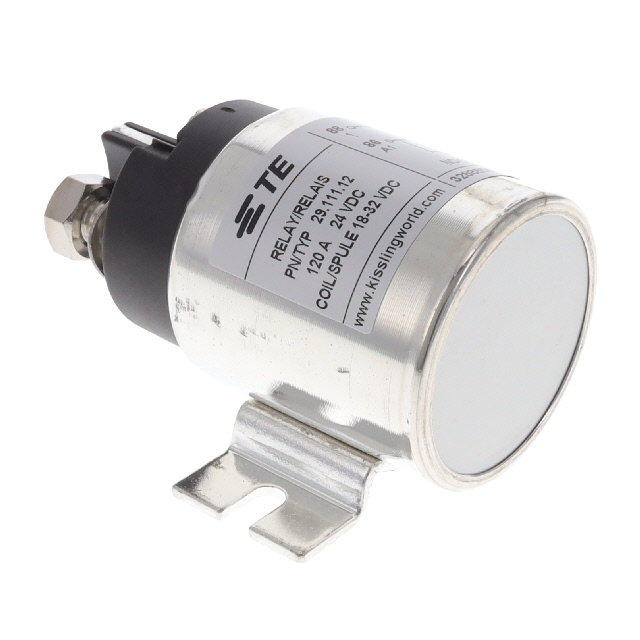

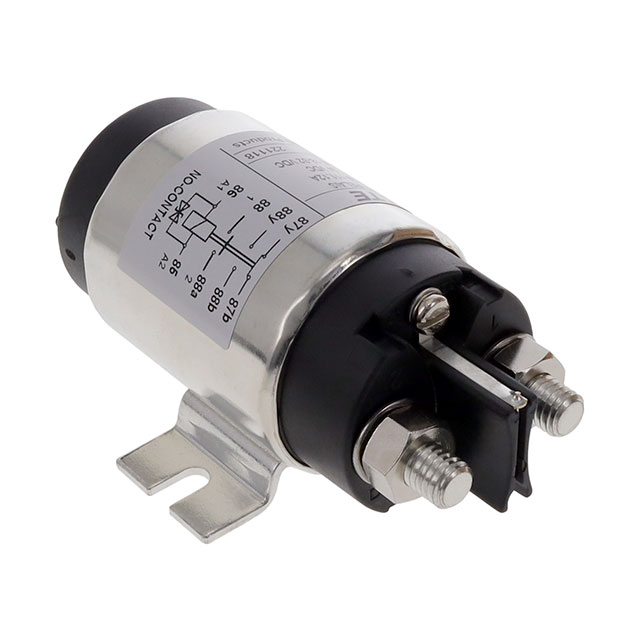

| Part Number | 29-111-12 | 29-111-12A | 29-011-11 | 29-011-11A |
| Manufacturer | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | RELAY GEN PURPOSE SPST 120A | RELAY GEN PURPOSE SPST 120A 28V | RELAY GEN PURPOSE SPST 75A 12V | RELAY GEN PURPOSE SPST 75A 12V |
| Series | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors |
| Packaging | Box | Box | Box | Bulk |
