2N4393 TO-18 3L ROHS
lmages are for reference only.2N4393 TO-18 3L ROHS
JFET N-CH 40V TO18-3
DatasheetTO-206AA, TO-18-3 Metal Can
68,948 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
JFET N-Channel 40 V 1.8 W Through Hole TO-18-3
2N4393 TO-18 3L ROHS
| Category | Discrete Semiconductor Products - Transistors - JFETs |
| Manufacturer | Linear Integrated Systems, Inc. |
| Series | 2N4393 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Voltage - Breakdown (V(BR)GSS) | 40 V |
| Drain to Source Voltage (Vdss) | - |
| Current - Drain (Idss) @ Vds (Vgs=0) | 5 mA @ 20 V |
| Voltage - Cutoff (VGS off) @ Id | 500 mV @ 1 nA |
| Input Capacitance (Ciss) (Max) @ Vds | 14pF @ 20V |
| Power - Max | 1.8 W |
| Operating Temperature | -55°C ~ 200°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-206AA, TO-18-3 Metal Can |
| Supplier Device Package | TO-18-3 |
| Base Product Number | - |
| Resistance - RDS(On) | 100 Ohms |
| Current Drain (Id) - Max | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |

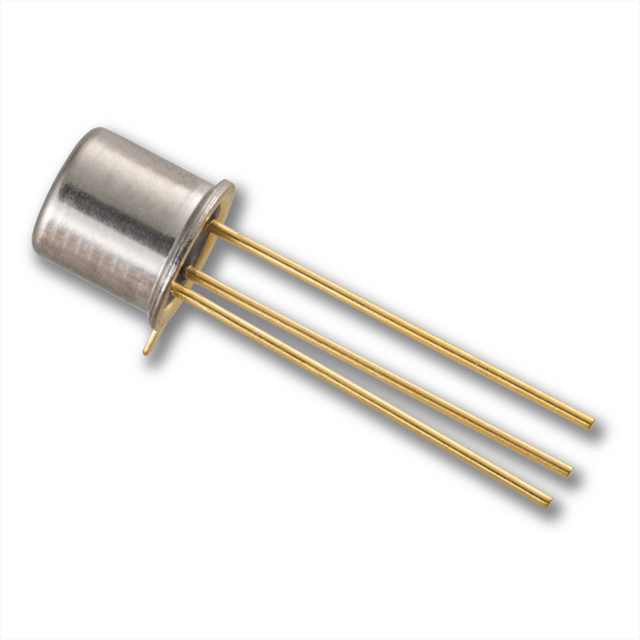

| Part Number | 2N4391 | 2N4391 | 2N4391 PBFREE | 2N4391 TO-18 3L ROHS |
| Manufacturer | Vishay Siliconix | Microchip Technology | Central Semiconductor Corp | Linear Integrated Systems, Inc. |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | JFET N-CH 40V TO206AA | JFET N-CH 40V TO18 | JFET N-CH 40V 100PA TO18 | JFET N-CH 40V TO18-3 |
| Series | - | - | - | 2N4391 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
