ADMV8502ACCZ
lmages are for reference only.ADMV8502ACCZ
30 TO 90 MHZ TUNABLE BPF
Datasheet40-BFLGA Exposed Pad
105,725 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
157.5MHz Center Frequency Band Pass RF Filter (Radio Frequency) 135MHz Bandwidth 3.5dB 40-BFLGA Exposed Pad
ADMV8502ACCZ
| Category | Filters - RF Filters - |
| Manufacturer | Analog Devices Inc. |
| Series | ADMV8502 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Frequency | 157.5MHz Center |
| Bandwidth | 135MHz |
| Filter Type | Band Pass |
| Ripple | - |
| Insertion Loss | 3.5dB |
| Mounting Type | Surface Mount |
| Package / Case | 40-BFLGA Exposed Pad |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height (Max) | 0.117" (2.96mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
|

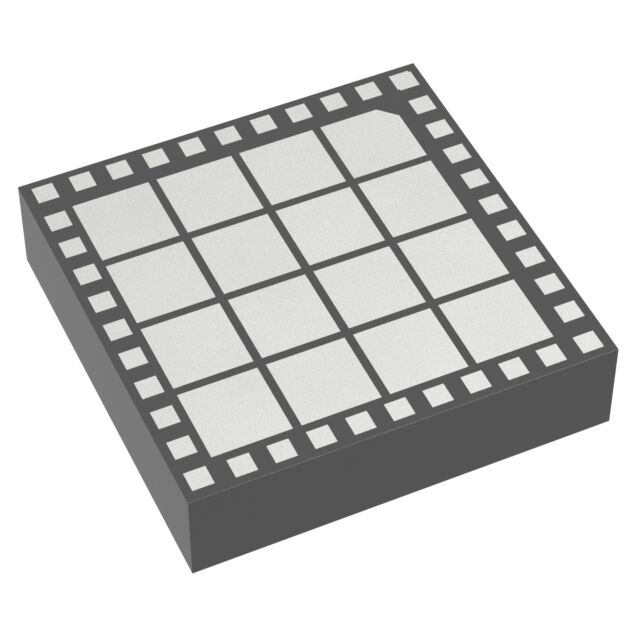

| Part Number | ADMV8502ACCZ-R7 | ADMV8505ACCZ | ADMV8505ACCZ-R7 | ADMV8513ACCZ |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | 30 TO 90 MHZ TUNABLE BPF | 225 TO 520 MHZ TUNABLE BPF | 225 TO 520 MHZ TUNABLE BPF | RF FILTER BANDPASS 910MHZ 40FLGA |
| Series | ADMV8502 | - | - | ADMV8513 |
| Packaging | Tape & Reel (TR) | Strip | Tape & Reel (TR) | Strip |
