ADMV8505ACCZ-R7
lmages are for reference only.ADMV8505ACCZ-R7
225 TO 520 MHZ TUNABLE BPF
Datasheet40-BFLGA Exposed Pad
100,835 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
372.5MHz Center Frequency Band Pass RF Filter (Radio Frequency) 295MHz Bandwidth 4.5dB 40-BFLGA Exposed Pad
ADMV8505ACCZ-R7
| Category | Filters - RF Filters - |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Frequency | 372.5MHz Center |
| Bandwidth | 295MHz |
| Filter Type | Band Pass |
| Ripple | - |
| Insertion Loss | 4.5dB |
| Mounting Type | Surface Mount |
| Package / Case | 40-BFLGA Exposed Pad |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height (Max) | 0.117" (2.96mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |

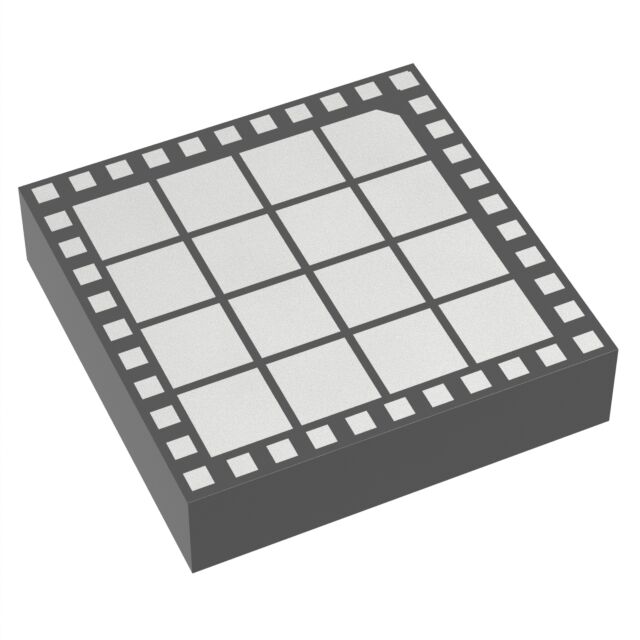

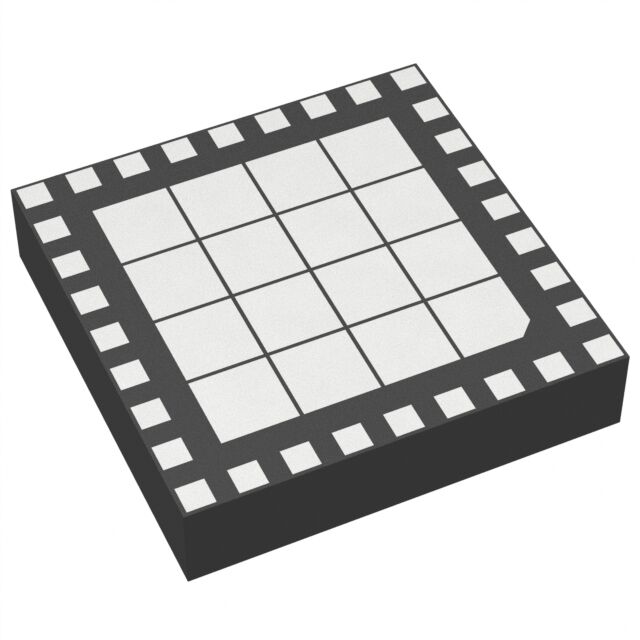

| Part Number | ADMV8505ACCZ | ADMV8052ACCZ | ADMV8502ACCZ | ADMV8502ACCZ-R7 |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 225 TO 520 MHZ TUNABLE BPF | 30 TO 520 MHZ MULTI-OCTAVE SWITC | 30 TO 90 MHZ TUNABLE BPF | 30 TO 90 MHZ TUNABLE BPF |
| Series | - | ADMV8052 | ADMV8502 | ADMV8502 |
| Packaging | Strip | Tray | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR) |
