AOZ1334DI-01
lmages are for reference only.AOZ1334DI-01
IC PWR SWITCH N-CHAN 1:1 8DFN
Datasheet8-WDFN Exposed Pad
84,296 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Power Switch/Driver 1:1 N-Channel 10A 8-DFN-EP (3x3)
AOZ1334DI-01
| Category | Integrated Circuits (ICs) - Power Management PMIC - Power Distribution Switches-Load Drivers |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 0.8V ~ 4V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 10A |
| Rds On (Typ) | 4.6mOhm |
| Input Type | - |
| Features | Load Discharge |
| Fault Protection | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN-EP (3x3) |
| Package / Case | 8-WDFN Exposed Pad |
| Base Product Number | AOZ1334 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

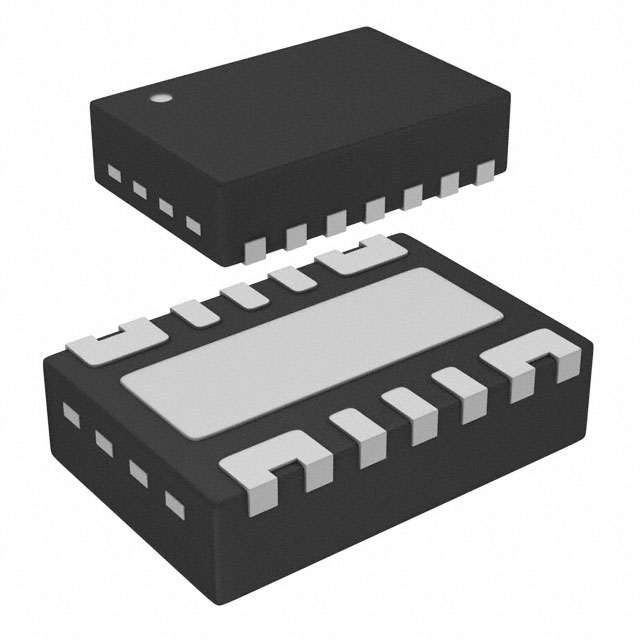

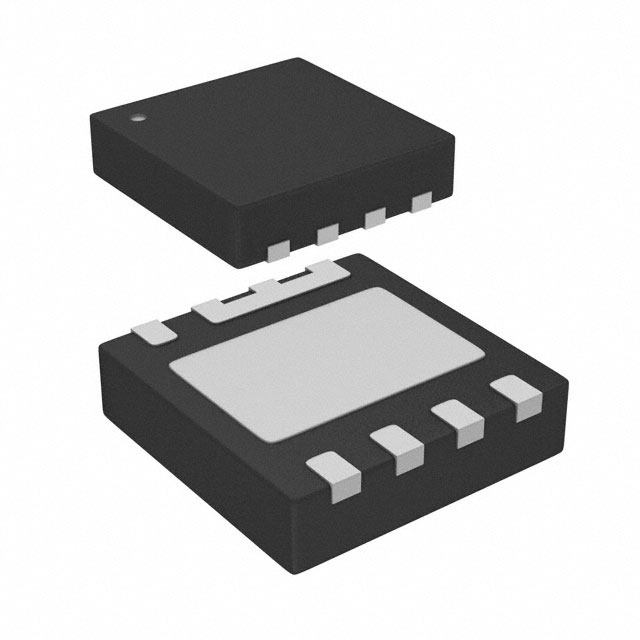

| Part Number | AOZ1334DI-02 | AOZ1331ADI | AOZ1331DI | AOZ1331DI_2 |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC PWR SWITCH N-CHAN 1:1 8DFN | IC PWR SWITCH N-CHAN 1:1 14DFN | IC PWR SWITCH N-CHAN 1:1 14DFN | IC PWR SWITCH N-CHAN 1:1 14DFN |
| Series | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
