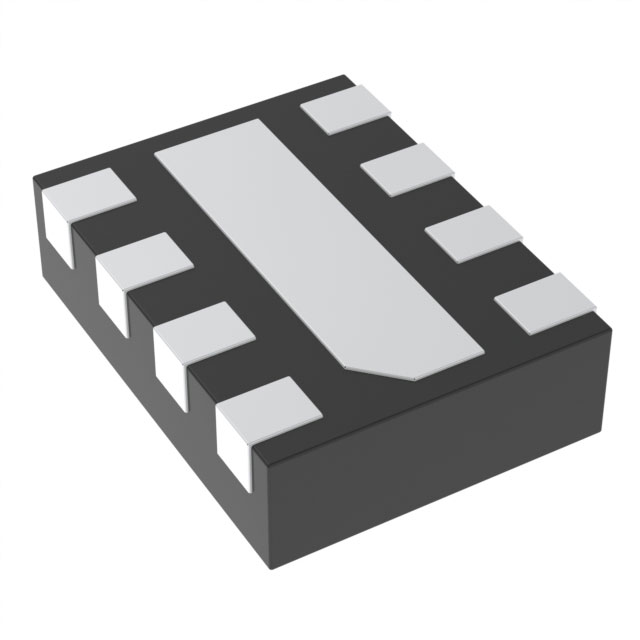

AP7348D-1218RS4-7
lmages are for reference only.AP7348D-1218RS4-7
IC REG LINEAR 1.2V/1.8V 8DFN
Datasheet8-XFDFN Exposed Pad
84,197 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 4 Output 300mA X1-DFN1612-8 (Type B)
AP7348D-1218RS4-7
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 4 |
| Voltage - Input (Max) | 5.25V |
| Voltage - Output (Min/Fixed) | 1.2V, 1.2V, 1.8V, 1.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.8V @ 300mA, 0.8V @ 300mA, 0.48V @ 300mA, 0.48V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 280 µA |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 8-XFDFN Exposed Pad |
| Supplier Device Package | X1-DFN1612-8 (Type B) |
| Base Product Number | AP7348 |
| Current - Supply (Max) | - |
| Product Attribute |  |
|
|
 |
| Part Number | AP7348D-1528RS4-7 | AP7348D-1815RS4-7 | AP7348D-1818RS4-7 | AP7348D-1828RS4-7 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LDO CMOS LOWCURR X1-DFN1612-8 T& | LDO CMOS LOWCURR X1-DFN1612-8 T& | LDO CMOS LOWCURR X1-DFN1612-8 T& | IC REG LIN 1.8V/2.8V 8DFN T&R |
| Series | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
