APT53N60SC6
lmages are for reference only.APT53N60SC6
MOSFET N-CH 600V 53A D3PAK
DatasheetTO-268-3, D3PAK (2 Leads + Tab), TO-268AA
95,904 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 600 V 53A (Tc) 417W (Tc) Surface Mount D3PAK
APT53N60SC6
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Microsemi Corporation |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 53A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 70mOhm @ 25.8A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 1.72mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4020 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 417W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | D3PAK |
| Package / Case | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 154 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

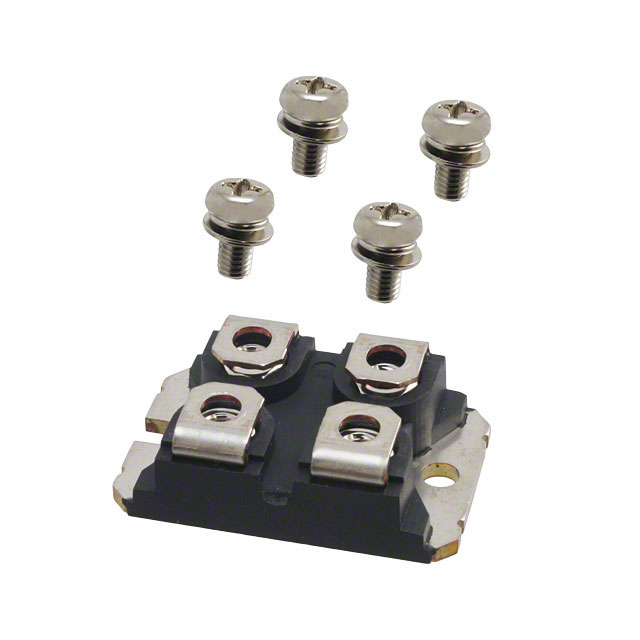

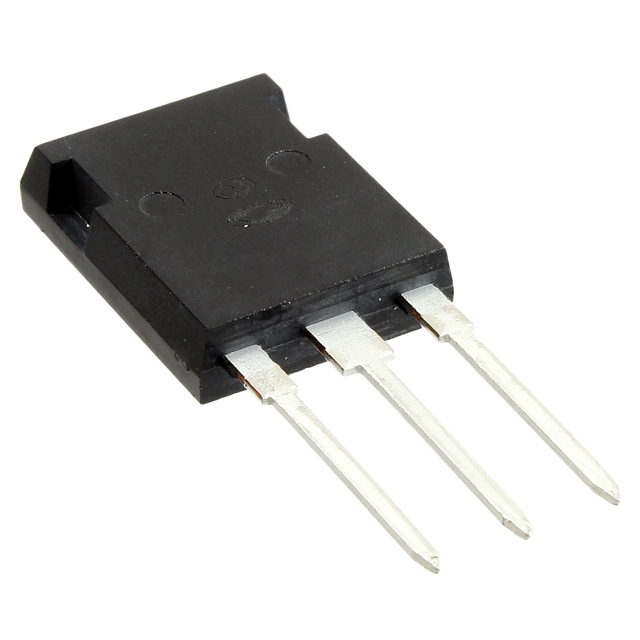

| Part Number | APT53F80J | APT53N60BC6 | AUIRF4104S | APT5020BVRG |
| Manufacturer | Microchip Technology | Microchip Technology | Infineon Technologies | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 800V 57A ISOTOP | MOSFET N-CH 600V 53A TO247 | MOSFET N-CH 40V 75A D2PAK | MOSFET N-CH 500V 26A TO247 |
| Series | POWER MOS 8™ | CoolMOS™ | HEXFET® | POWER MOS V® |
| Packaging | Tube | Tube | Tube | Tube |
