ATF13-6P2-BM13BLU
lmages are for reference only.ATF13-6P2-BM13BLU
BOARD MOUNT HEADER, RIGHT ANGLE,
Datasheet-
54,110 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Connector Header Through Hole, Right Angle 6 position 0.174" (4.42mm)
ATF13-6P2-BM13BLU
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Amphenol Sine Systems Corp |
| Series | BoardLock™ AT |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle |
| Contact Type | Male Pin |
| Pitch - Mating | 0.174" (4.42mm) |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.120" (3.05mm) |
| Overall Contact Length | - |
| Insulation Height | 0.843" (21.41mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | Mounting Flange |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - |
| Insulation Color | Blue |
| Current Rating (Amps) | 13A |
| Voltage Rating | 250VDC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | Automotive, General Purpose, Industrial |
| Base Product Number | ATF13 |
| Product Attribute |  |
 |
 |
 |

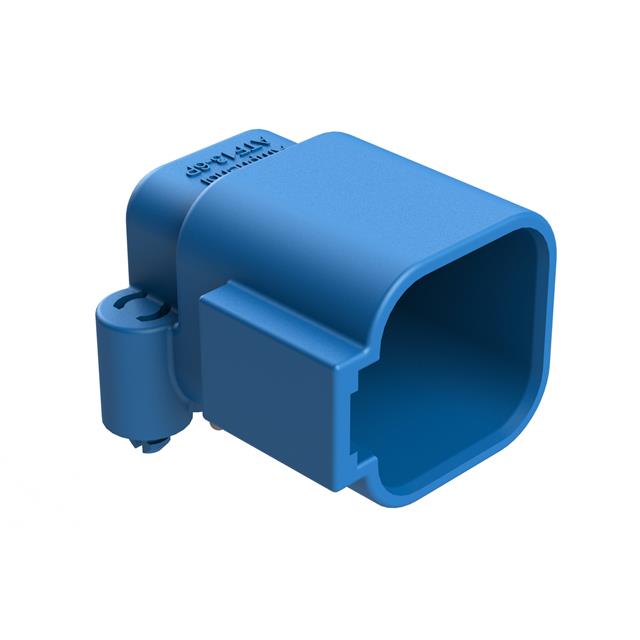

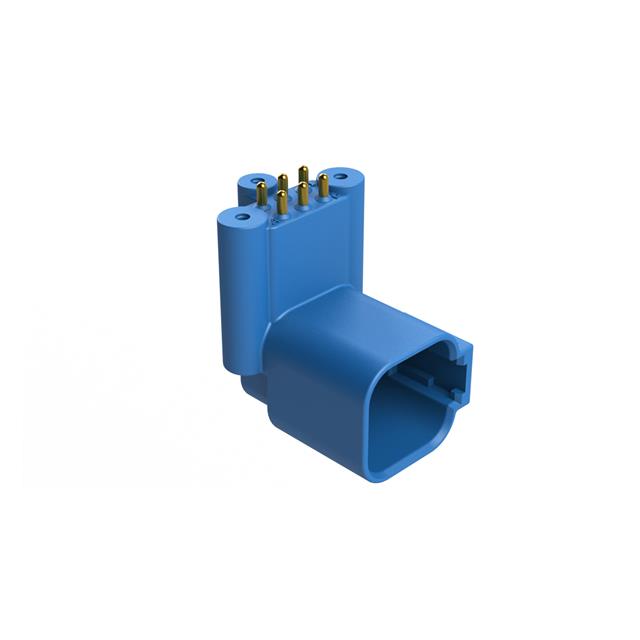

| Part Number | ATF13-6P2-BM01BLU | ATF13-6P2-BM03BLU | ATF13-6P2-BM11BLU | ATF13-6P2-BM31BLU |
| Manufacturer | Amphenol Sine Systems Corp | Amphenol Sine Systems Corp | Amphenol Sine Systems Corp | Amphenol Sine Systems Corp |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BOARD MOUNT HEADER, RIGHT ANGLE, | BOARD MOUNT HEADER, RIGHT ANGLE, | BOARD MOUNT HEADER, RIGHT ANGLE, | BOARD MOUNT HEADER, RIGHT ANGLE, |
| Series | BoardLock™ AT | BoardLock™ AT | BoardLock™ AT | BoardLock™ AT |
| Packaging | Bulk | Bulk | Bulk | Bulk |
