Product CatalogPart Number
AUIRF3808
Manufacturer
International RectifierDescription
AUTOMOTIVE HEXFET N CHANNEL
Datasheet
DatasheetPackage
TO-220-3
In Stock
42,401 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AUIRF3808
AUIRF3808

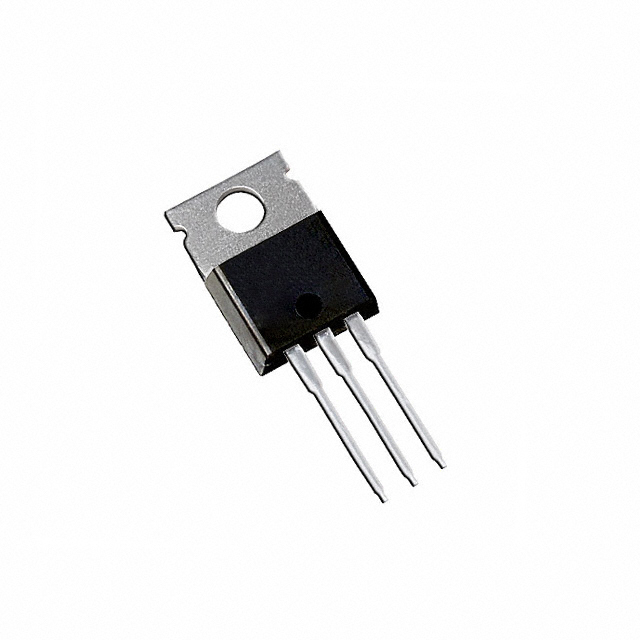

lmages are for reference only.Payment Methods
Delivery Services
N-Channel 75 V 140A (Tc) 330W (Tc) Through Hole TO-220AB
Quick Inquiry
AUIRF3808
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | International Rectifier |
| Series | HEXFET® |
| Packaging | Bulk |
| RoHS Status | Not applicable |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 75 V |
| Current - Continuous Drain (Id) @ 25°C | 140A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 7mOhm @ 82A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | - |
| Input Capacitance (Ciss) (Max) @ Vds | 5310 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 330W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB |
| Package / Case | TO-220-3 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 220 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | AUIRF3805 | AUIRF3805L | AUIRF3805L | AUIRF3805L-7P |
| Manufacturer | Infineon Technologies | International Rectifier | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 55V 160A TO220 | MOSFET N-CH 55V 160A TO262 | MOSFET N-CH 55V 160A TO262 | MOSFET N-CH 55V 160A TO262 |
| Series | HEXFET® | HEXFET® | HEXFET® | HEXFET® |
| Packaging | Tube | Bulk | Tube | Tube |
