B32524Q1156K189
lmages are for reference only.B32524Q1156K189
CAP FILM 15UF 10% 100VDC RADIAL
DatasheetRadial
82,346 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
15 µF Film Capacitor 63V 100V Polyester, Polyethylene Terephthalate (PET), Metallized Radial
B32524Q1156K189
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B3252* - MKT General Purpose |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 15 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 63V |
| Voltage Rating - DC | 100V |
| Dielectric Material | Polyester, Polyethylene Terephthalate (PET), Metallized |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.433" W (31.50mm x 11.00mm) |
| Height - Seated (Max) | 0.827" (21.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | Automotive; EMI, RFI Suppression |
| Ratings | AEC-Q200 |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

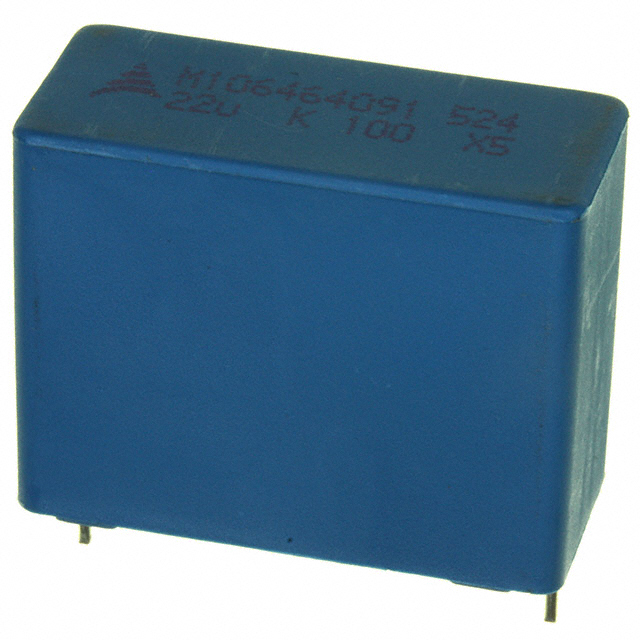

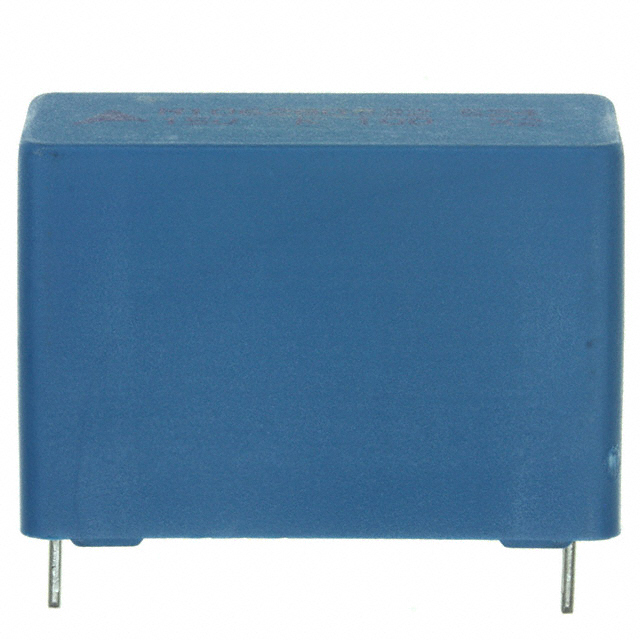

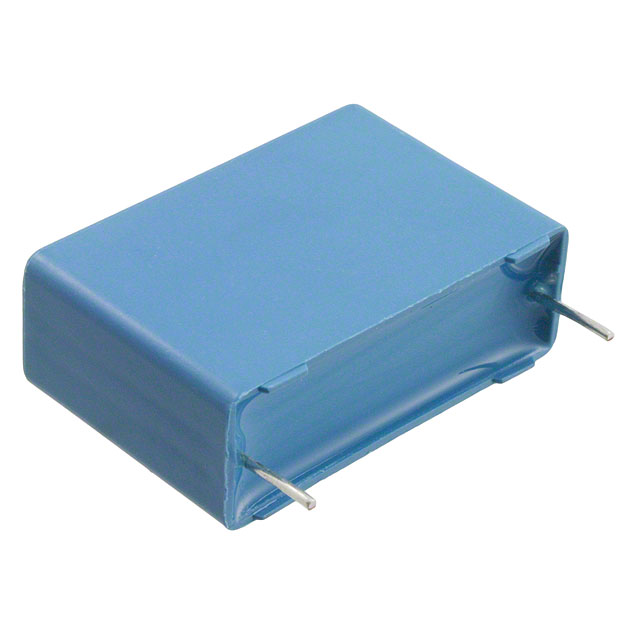

| Part Number | B32524Q1156K000 | B32524Q1106J000 | B32524Q1106J189 | B32524Q1106K000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 15UF 10% 100VDC RADIAL | CAP FILM 10UF 100V METAL POLY | CAP FILM 10UF 5% 100VDC RADIAL | CAP FILM 10UF 10% 100VDC RADIAL |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
