B32656S8185K566
lmages are for reference only.B32656S8185K566
CAP FILM 1.8UF 10% 850VDC SCREW
DatasheetRectangular Box
43,162 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.8 µF Film Capacitor 450V 850V Polypropylene (PP), Metallized Rectangular Box
B32656S8185K566
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B3265* - MKP General Purpose |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1.8 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 450V |
| Voltage Rating - DC | 850V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.654" L x 1.102" W (42.00mm x 28.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Termination | Screw Terminals |
| Lead Spacing | 0.945" (24.00mm) |
| Applications | Snubber |
| Ratings | AEC-Q200 |
| Features | Low ESL |
| ESR (Equivalent Series Resistance) | 4.5 mOhms |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |

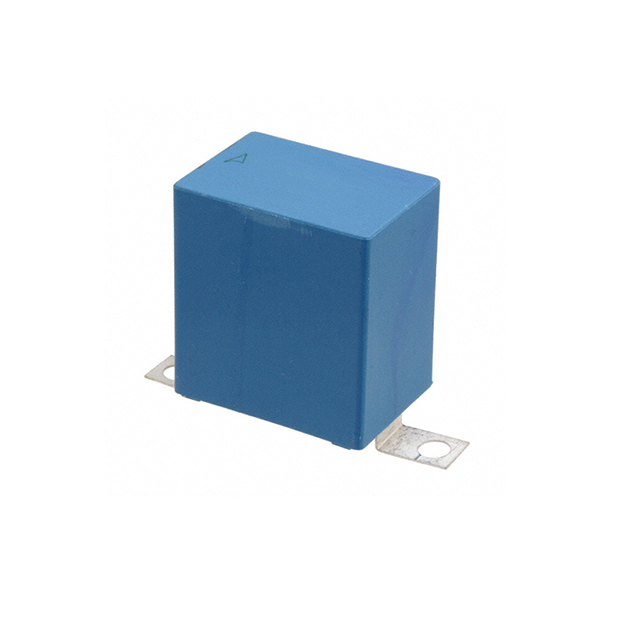

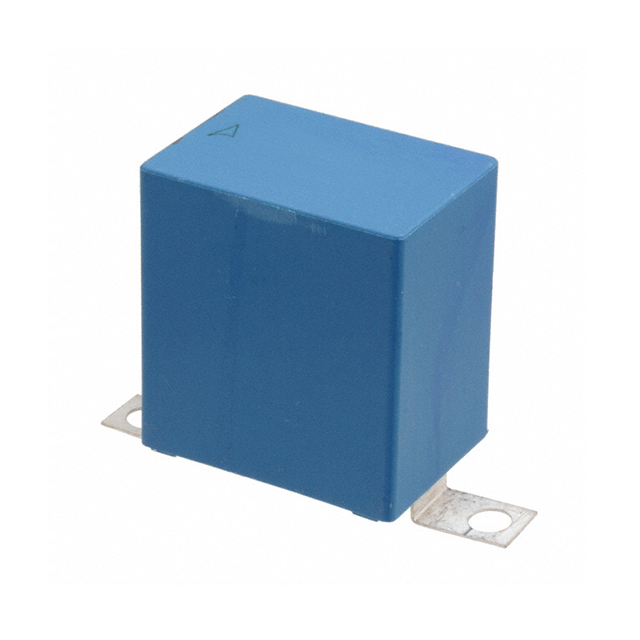

| Part Number | B32656S8185K562 | B32656S8105K562 | B32656S8105K564 | B32656S8105K566 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 1.8UF 10% 850VDC SCREW | FILM CAP 1.0000UF 10% 850V MKP B | FILM CAP 1.0000UF 10% 850V MKP B | CAP FILM 1UF 10% 850VDC SCREW |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Bulk | Bulk |
