B82144B1156J000
lmages are for reference only.B82144B1156J000
FIXED IND 15MH 50MA 75 OHM TH
DatasheetRadial, Vertical Cylinder
85,930 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
15 mH Unshielded Drum Core, Wirewound Inductor 50 mA 75Ohm Max Radial, Vertical Cylinder
B82144B1156J000
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | LBC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 15 mH |
| Tolerance | ±5% |
| Current Rating (Amps) | 50 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 75Ohm Max |
| Q @ Freq | 50 @ 79.6kHz |
| Frequency - Self Resonant | 500kHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.256" Dia (6.50mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

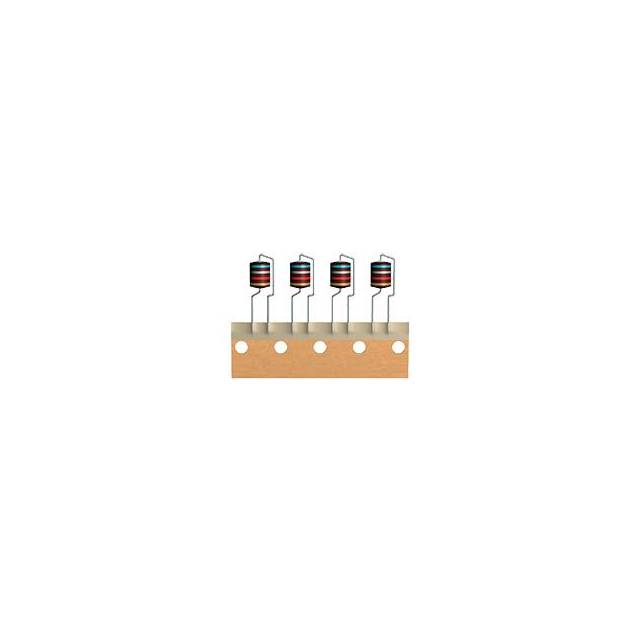

| Part Number | B82144B1102K000 | B82144B1103K000 | B82144B1104J000 | B82144B1105J000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1UH 2.5A 60 MOHM TH | FIXED IND 10UH 1.5A 180 MOHM TH | FIXED IND 100UH 760MA 700MOHM TH | FIXED IND 1MH 280MA 4.2 OHM TH |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
