B82144F2334J000

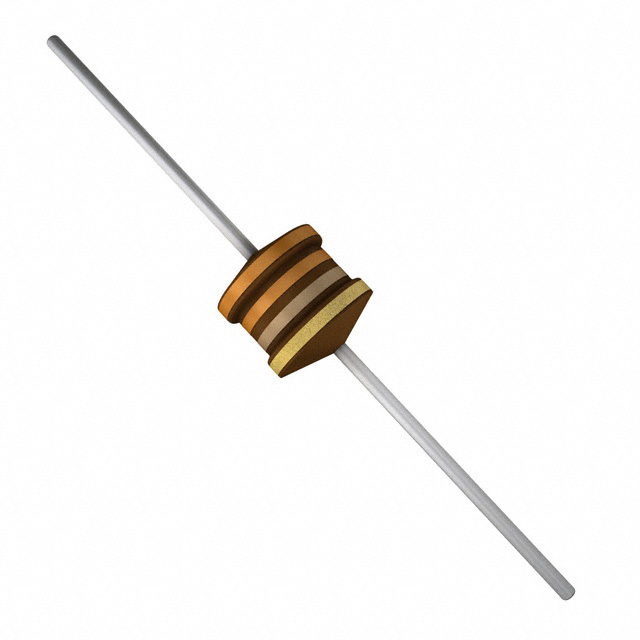

lmages are for reference only.B82144F2334J000
FIXED IND 330UH 700MA 1.53OHM TH
DatasheetAxial
61,261 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
330 µH Unshielded Drum Core, Wirewound Inductor 700 mA 1.53Ohm Max Axial
B82144F2334J000
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | LBC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 330 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 700 mA |
| Current - Saturation (Isat) | 520mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.53Ohm Max |
| Q @ Freq | 40 @ 79.6kHz |
| Frequency - Self Resonant | 2.8MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Supplier Device Package | - |
| Size / Dimension | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) |
| Height - Seated (Max) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | B82144F2334J9 | B82144F2332K000 | B82144F2332K9 | B82144F2333J000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 330UH 700MA 1.53OHM TH | FIXED IND 3.3UH 3.5A 0.065OHM TH | FIXED IND 3.3UH 3.5A 0.065OHM TH | FIXED IND 33UH 1.9A 0.22OHM TH |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Tape & Box (TB) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Box (TB) | Tape & Reel (TR)-->Cut Tape (CT) |
