BSC014N06NSATMA1

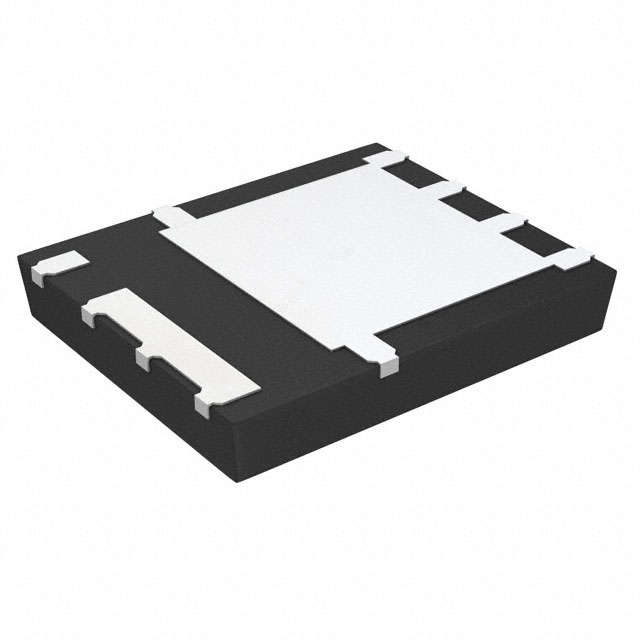

lmages are for reference only.BSC014N06NSATMA1
MOSFET N-CH 60V 30A/100A TDSON7
Datasheet8-PowerTDFN
18,884 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 60 V 30A (Ta), 100A (Tc) 2.5W (Ta), 156W (Tc) Surface Mount PG-TDSON-8-17
BSC014N06NSATMA1
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | OptiMOS™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Ta), 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 1.45mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 2.8V @ 120µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6500 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta), 156W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TDSON-8-17 |
| Package / Case | 8-PowerTDFN |
| Base Product Number | BSC014 |
| Gate Charge (Qg) (Max) @ Vgs | 89 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | BSC014N06NSSCATMA1 | BSC014N06NSTATMA1 | BSC014N03LSGATMA1 | BSC014N03MSGATMA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 60V 261A WSON-8 | MOSFET N-CH 60V 100A TDSON-8 FL | MOSFET N-CH 30V 34A/100A TDSON | MOSFET N-CH 30V 30A/100A TDSON |
| Series | OptiMOS™ | OptiMOS™ | OptiMOS™ | OptiMOS™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
