BST-15/100-D48-C
lmages are for reference only.BST-15/100-D48-C
DC DC CONVERTER +/-15V 3W
Datasheet8-DIP Module
58,164 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 18V - 72V Input
BST-15/100-D48-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | BST (3W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 72V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 100mA, 100mA |
| Power (Watts) | 3 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 75°C |
| Efficiency | 76% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module |
| Size / Dimension | 1.25" L x 0.80" W x 0.45" H (31.8mm x 20.3mm x 11.4mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | BST-15 |
| Voltage - Isolation | 1 kV |
| Product Attribute |  |
 |
 |
 |

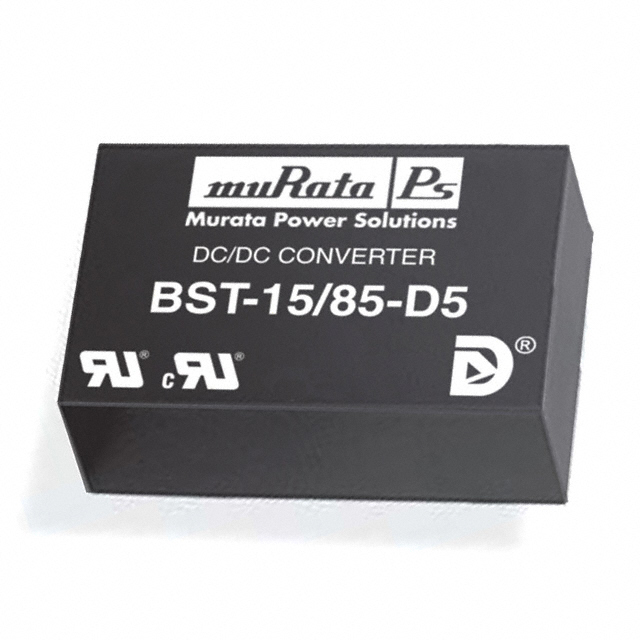

| Part Number | BST-15/85-D5-C | BP5277-12 | B0315XT-1WR3 | B048T240M30 |
| Manufacturer | Murata Power Solutions Inc. | Rohm Semiconductor | Mornsun America, LLC | Vicor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | DC DC CONVERTER +/-15V 3W | DC DC CONVERTER 12V 6W | DC DC CONVERTER 15V 1W | DC DC CONVERTER 24V 300W |
| Series | Murata Power Solutions Inc. | Rohm Semiconductor | Vicor Corporation | |
| Packaging | Tube | Tray | B0315XT-1WR3 (1W) | Tray |
