BST-15/85-D5-C
lmages are for reference only.BST-15/85-D5-C
DC DC CONVERTER +/-15V 3W
Datasheet8-DIP Module
19,966 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 15V -15V 85mA, 85mA 4.5V - 9V Input
BST-15/85-D5-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | BST (3W) |
| Packaging | Tube |
| RoHS Status | |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 9V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 85mA, 85mA |
| Power (Watts) | 3 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 75°C |
| Efficiency | 74% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module |
| Size / Dimension | 1.25" L x 0.80" W x 0.45" H (31.8mm x 20.3mm x 11.4mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | BST-15 |
| Voltage - Isolation | 1 kV |
| Product Attribute |  |
 |
 |
 |

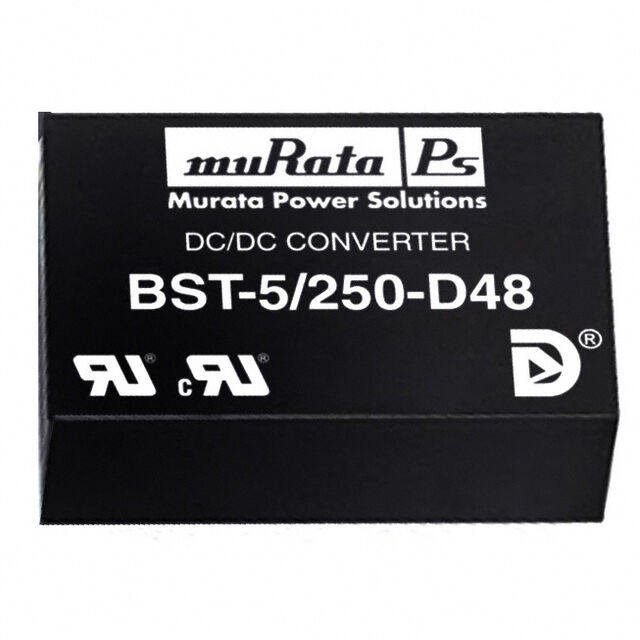

| Part Number | BST-12/125-D12-C | BST-12/125-D48-C | BST-15/100-D48-C | BST-5/250-D48-C |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | DC DC CONVERTER +/-12V 3W | DC DC CONVERTER +/-12V 3W | DC DC CONVERTER +/-15V 3W | DC DC CONVERTER +/-5V 3W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tube | Tube | Tube | Tube |
