Product CatalogPart Number
C712L
Manufacturer
Powerex Inc.Description
SCR 2KV 1570A PRESS-PAK
Datasheet
DatasheetPackage
B-PUK (TO-200AC)
In Stock
103,535 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

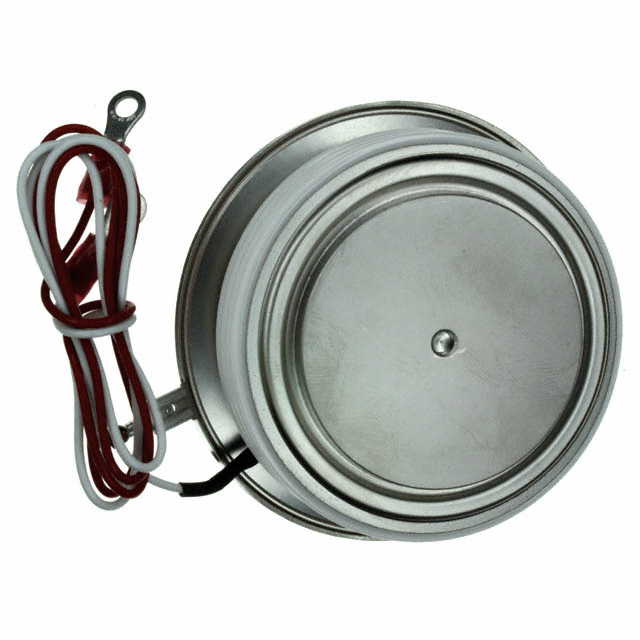

C712L
C712L
lmages are for reference only.Payment Methods
Delivery Services
SCR 2 kV 1570 A Standard Recovery Chassis Mount Press-Pak (Pow-R-Disc)
Quick Inquiry
C712L
Specifications
| Category | Discrete Semiconductor Products - Thyristors - SCRs |
| Manufacturer | Powerex Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Voltage - Off State | 2 kV |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Current - Gate Trigger (Igt) (Max) | 120 mA |
| Current - On State (It (AV)) (Max) | 1000 A |
| Current - Hold (Ih) (Max) | - |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 18500A, 20000A |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Chassis Mount |
| Package / Case | B-PUK (TO-200AC) |
| Supplier Device Package | Press-Pak (Pow-R-Disc) |
| Voltage - On State (Vtm) (Max) | 1.45 V |
| Current - On State (It (RMS)) (Max) | 1570 A |
| Current - Off State (Max) | 90 mA |
| Base Product Number | C712 |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |

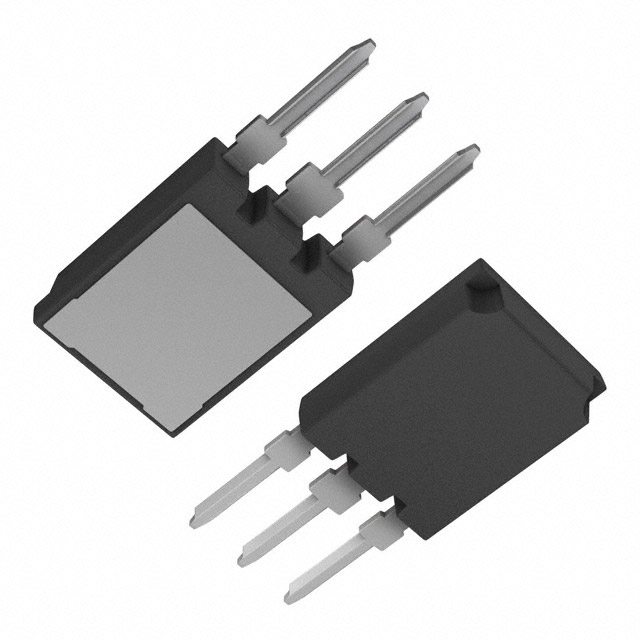

| Part Number | C702CP | C702LN | JANTX2N2323 | VS-70TPS12PBF |
| Manufacturer | Powerex Inc. | Powerex Inc. | Microchip Technology | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | SCR 3KV 1571A PRESS-PAK | SCR 2.8KV 1571A PRESS-PAK | SCR 50V TO5-3 | SCR 1.2KV 75A SUPER-247 |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
