CSHV500A-001
lmages are for reference only.CSHV500A-001
CSHV500A-001 CURRENT SENSOR
DatasheetModule, Single Pass Through
49,745 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 500A 1 Channel Hall Effect, Open Loop Bidirectional Module, Single Pass Through
CSHV500A-001
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | CSHV |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Open Loop |
| Current - Sensing | 500A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 4mV/A |
| Frequency | 45kHz |
| Linearity | ±1% |
| Accuracy | ±2% |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | 6µs |
| Current - Supply (Max) | 16mA |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Bidirectional |
| Mounting Type | Chassis Mount |
| Package / Case | Module, Single Pass Through |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

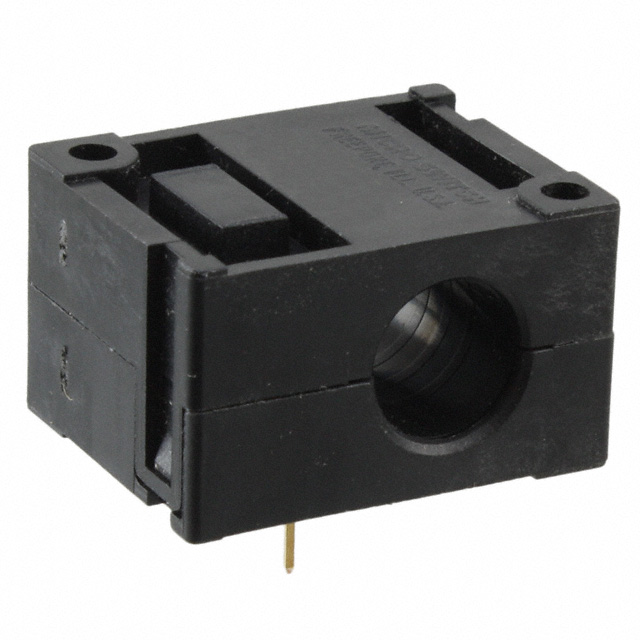

| Part Number | CSNF151-001 | CSLA1GF | CSDA1BC | CSDD1FR |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | SENSOR CURRENT HALL 180A AC/DC | SENSOR CURRENT HALL 100A AC/DC | SENSOR CURRENT SWITCH 7.5A AC/DC | CURRENT SENSOR |
| Series | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| Packaging | Bulk | Bulk | Bulk | Bulk |
