CYW20706UA1KFFB1GT

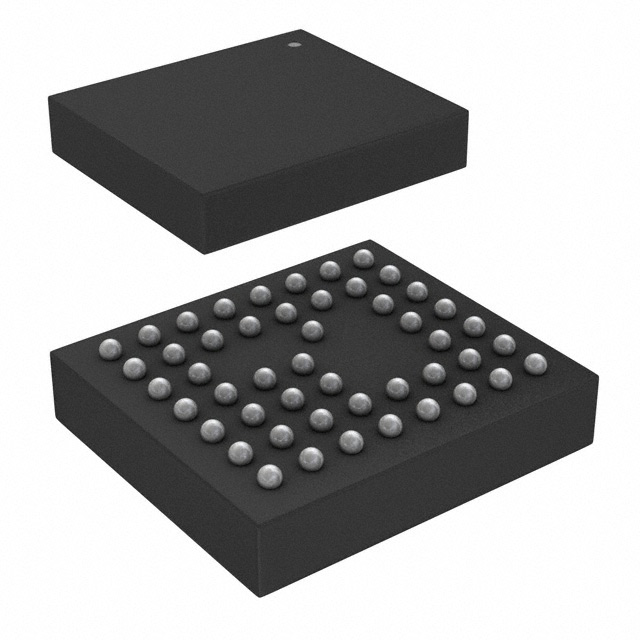

lmages are for reference only.CYW20706UA1KFFB1GT
IC RF TXRX+MCU BLE 49FCBGA
Datasheet49-VFBGA, FCBGA
83,736 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IC RF TxRx + MCU Bluetooth Bluetooth v4.2 2.4GHz 49-VFBGA, FCBGA
CYW20706UA1KFFB1GT
| Category | RF and Wireless - RF Transceiver ICs - |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | TxRx + MCU |
| RF Family/Standard | Bluetooth |
| Protocol | Bluetooth v4.2 |
| Modulation | - |
| Frequency | 2.4GHz |
| Data Rate (Max) | 2Mbps |
| Power - Output | 12dBm |
| Sensitivity | -96.5dBm |
| Memory Size | 848kB ROM, 352kB RAM |
| Serial Interfaces | I2C, I2S, SPI, UART |
| GPIO | 7 |
| Voltage - Supply | 3.3V |
| Current - Receiving | 12.5mA |
| Current - Transmitting | 26.5mA |
| Operating Temperature | -30°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 49-VFBGA, FCBGA |
| Supplier Device Package | 49-FCBGA (4.5x4) |
| Base Product Number | CYW20706 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CYW20706UA1KFFB1G | CYW20706UA1KFFB4G | CYW20706UA2KFFB4G | CYW20706UA2KFFB4GT |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC RF TXRX+MCU BLE 49FCBGA | IC RF TXRX+MCU BLE 49FCBGA | IC RF TXRX+MCU BLE 49FBGA | IC RF TXRX+MCU BLE 49FBGA |
| Series | - | - | - | - |
| Packaging | Tray | Tray | Tray | Tape & Reel (TR)-->Cut Tape (CT) |
