D22V0H1U2LP1610-7
lmages are for reference only.D22V0H1U2LP1610-7
TVS DIODE 22VWM 37VC U-DFN1610-2
Datasheet0603 (1610 Metric)
53,733 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
37V Clamp 28A (8/20µs) Ipp Tvs Diode Surface Mount U-DFN1610-2 (Type B)
D22V0H1U2LP1610-7
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 22V (Max) |
| Voltage - Breakdown (Min) | 23.5V |
| Voltage - Clamping (Max) @ Ipp | 37V |
| Current - Peak Pulse (10/1000µs) | 28A (8/20µs) |
| Power - Peak Pulse | 1000W (1kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 200pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1610 Metric) |
| Supplier Device Package | U-DFN1610-2 (Type B) |
| Base Product Number | D22V0 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

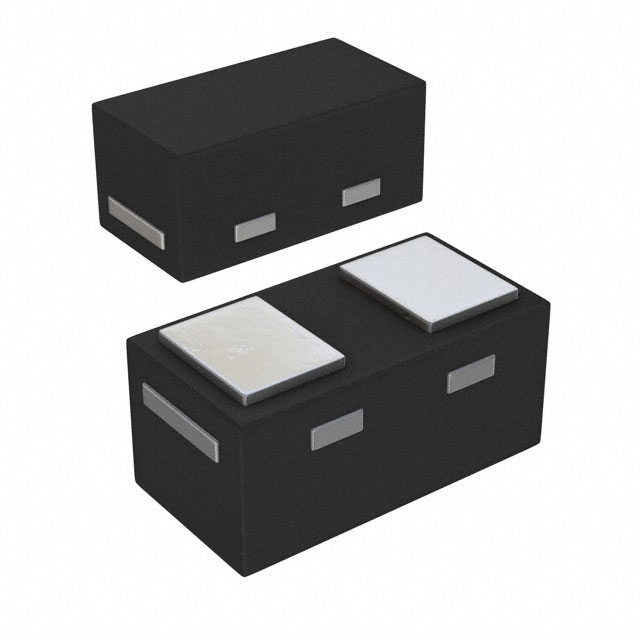

| Part Number | D22V0H1U2LP-7B | D20V0H1U2LP-7B | D20V0L1B2LP-7B | D20V0L1B2LP3-7 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | GENERAL PROTECTION PP X1-DFN1006 | GENERAL PROTECTION PP X1-DFN1006 | TVS DIODE 20VWM 34VC DFN1006-2 | GENERAL PROTECTION PP X2-DFN0603 |
| Series | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
